Johnson Controls JT3213G13A020 Electric Zone Valve 24 VAC 1/2 inch

Product Description

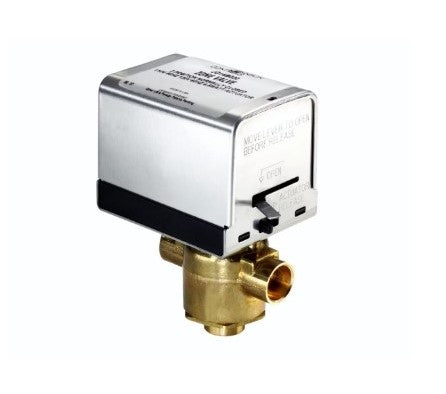

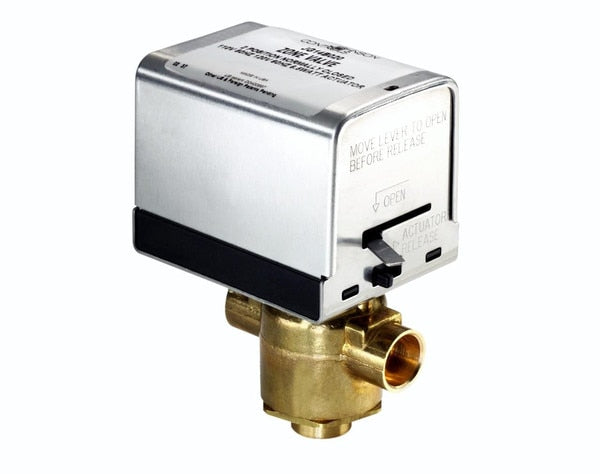

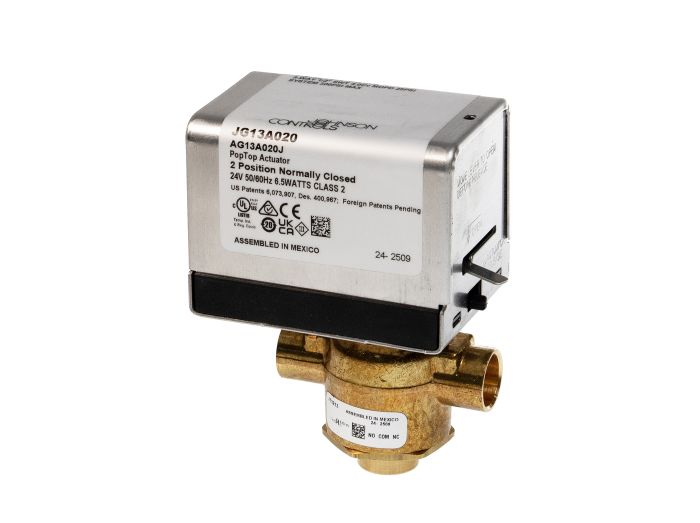

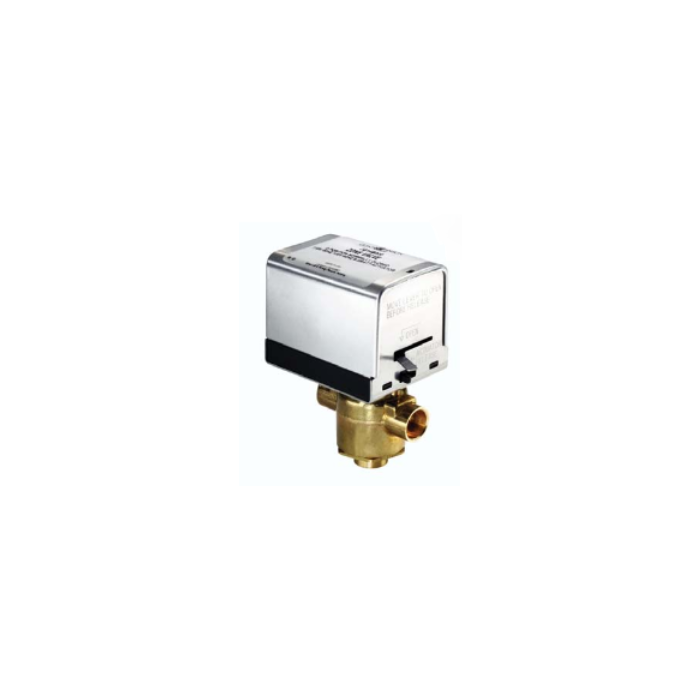

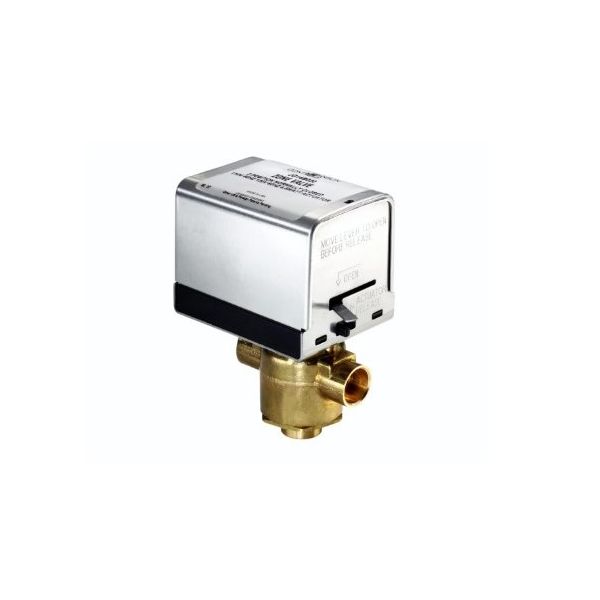

The Johnson Controls JT3213G13A020 is an electric zone valve designed for applications requiring efficient temperature regulation. This three-way valve operates at 24 VAC and integrates seamlessly into heating systems. It features a sweat connection for easy installation and is equipped with a spring return actuator, ensuring reliable on/off function.

• 3-Way design for versatile application
• 1/2 inch size for compact installations
• Standard temperature operation suitable for various environments

Product Highlights

This electric zone valve operates in standard temperature ranges, making it ideal for residential and commercial heating systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Type: Electric Zone Valve

Technical Specifications

• MPN: JT3213G13A020
• Size: 1/2 inch
• Way: 3-Way
• Cv: 4
• Operation: On/Off
• Temperature: Standard Temperature
• Connection: Sweat Connection
• Actuator: Spring Return Electric Valve Actuator
• Voltage: 24 VAC
• Frequency: 60 Hz
• Wire Leads: 18 inches
• Max Close-Off Pressure: 25 psi
• Max Static Pressure: 300 psi
• Medium Temperature Range: 32-200 °F
