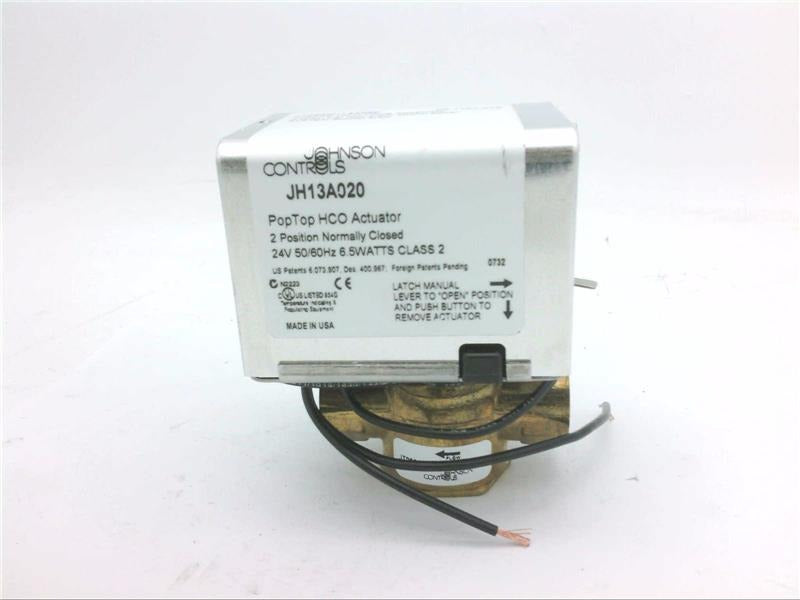

Johnson Controls JT2222H13A020 J Series electric zone valve 24 Vac (1/2 in NPT) JH13A020

Product Description

Johnson Controls JT2222H13A020 is an electric zone valve with a forged brass body and JH13A020 actuator designed for two-way, spring-closed on/off control of hot or chilled water systems. It provides 24 Vac actuation with spring return, a 1/2 in NPT connection, and a 2.5 Cv flow coefficient for HVAC zone control and building hydronic applications. The assembly is intended for on/off zone control in heating and cooling systems.

• Forged brass body with hard chrome-plated brass stem for water applications
• Two-way, normally closed on/off operation with 24 Vac JH13A020 actuator and spring return
• 1/2 in NPT port size with 2.5 Cv flow coefficient for hot or chilled water HVAC systems

Product Highlights

Two-way spring-closed zone valve with 24 Vac JH13A020 actuator; 1/2 in NPT; 2.5 Cv; forged brass body

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: JT2222H13A020
• Country of Origin: United States

Technical Specifications

• Manufacturer: Johnson Controls
• Manufacturer Part Number: JT2222H13A020
• Product Type: Zone valve / control valve
• Port Size: 1/2 in NPT
• Valve Type: Two-way, normally closed (N.C.)
• Flow Coefficient (Cv): 2.5
• Input Voltage: 24 Vac
• Operation: On/Off, spring return
• Actuator Model: JH13A020
• Body Material: Forged brass
• Stem Material: Hard chrome-plated brass
• Applicable Fluids: Hot or chilled water
• Weight: 771 g
• Country of Origin: United States
