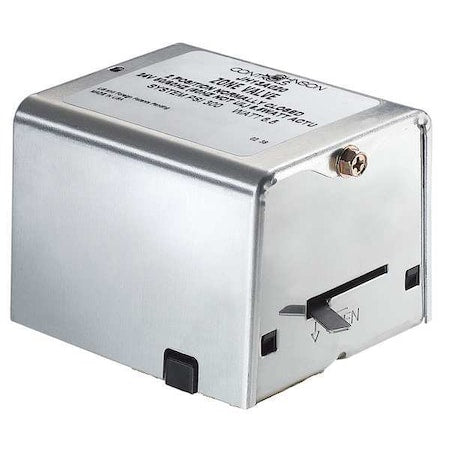

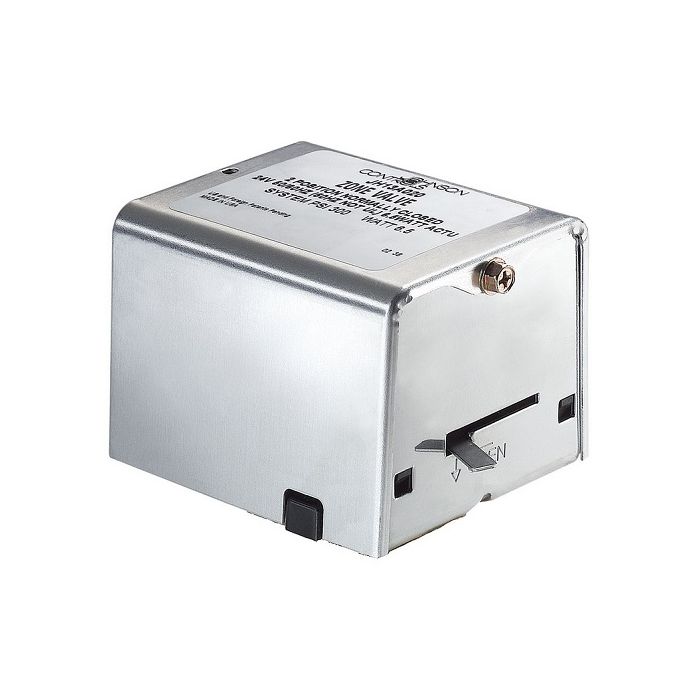

Johnson Controls JH23A020 Zone Valve Actuator Normally Open 24V

Product Description

The JOHNSON CONTROLS JH23A020 Zone Valve Actuator is a normally open, on/off signal type device designed for high closeoff pressure applications. It operates at 24 VAC and is suitable for use with Johnson Controls J Series Valves and Erie VT Series Valves. This actuator features wire harness electrical connections and can handle a media temperature range of 32-200 degrees F. It is UL listed and CE Mark compliant.

• Normally Open actuator type for specific flow control.
• High closeoff pressure type for demanding applications.
• On/Off signal type for straightforward operation.

Product Highlights

This actuator ensures precise flow control in HVAC systems, compatible with J Series and Erie VT Series valves, featuring robust high closeoff pressure and UL/CE compliance.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: JH23A020
• Country of Origin: United States

Technical Specifications

• Product Type: Zone Valve Actuator
• Actuator Type: Normally Open
• Closeoff Pressure Type: High
• Signal Type: On/Off
• Voltage: 24 VAC
• Electrical Connections: Wire Harness
• Compatibility: Johnson Controls J Series Valves and Erie VT Series Valves
• Certifications: UL listed, File E6688 or E27734 CNN XAPX (U.S.) XAPX7 (Canada), CE Mark
• HS Code: 8501104020
• Power Consumption: 7 VA
• Product Series: J Series Electric Zone Valves
• Family Series: Johnson Controls HVAC Valves, J Series Electric Zone Valves Series
• Control Signal: Two Position
• Fail-Safe Mode: Spring Return
• Media Temperature Range: 32-200 °F
• Manual Operation: No
• Fail Safe Position: Spring Open
• Application: Steam Control, Heat Exchangers, Chilled/Hot Water Control
• Compatible Closeoff Pressure: 75 psi
• Electrical Lead Length: 18"
• Frequency: 60 Hz
• Housing Material: Brass
• Included Features: High Pressure Cut Off
• Installation Orientation: Horizontal, Vertical
• NEMA Rating: Not Rated
• UPC/EAN: 785028688361
