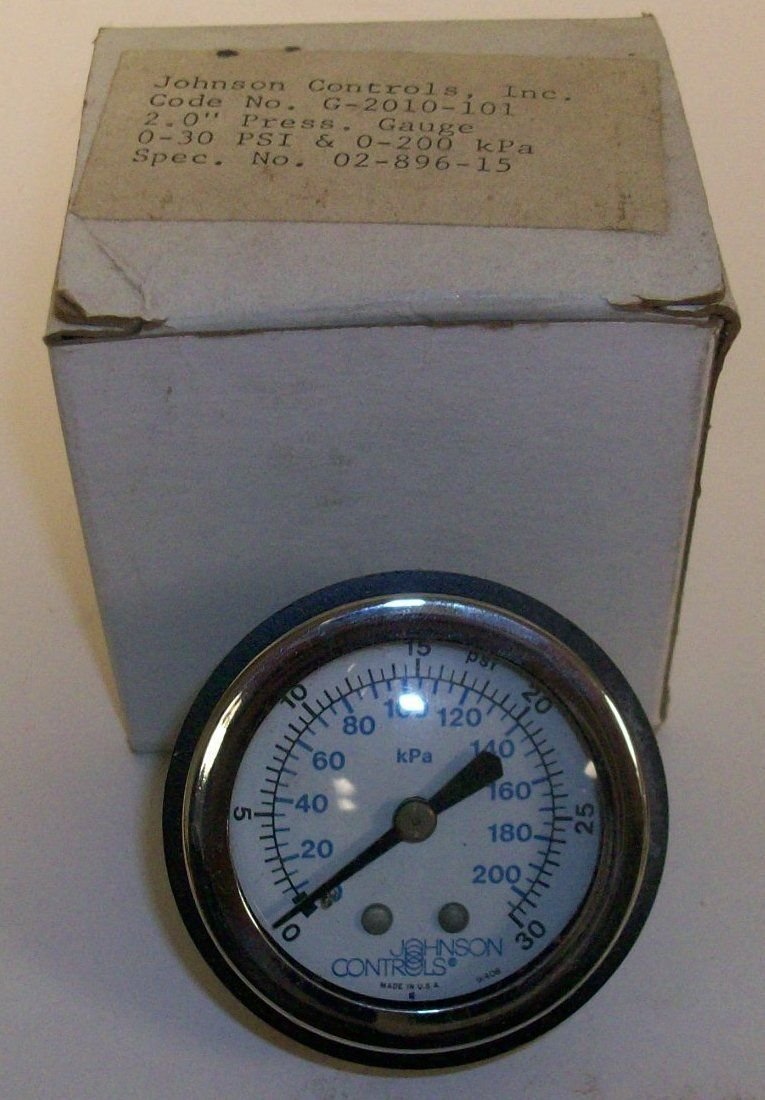

Johnson Controls G-2010-101 Air Pressure Gauge 0 to 30 psig Range

Product Description

The Johnson Controls G-2010-101 Air Pressure Gauge measures air pressure effectively. It is designed for flush mounting on panels with thicknesses from one-sixteenth to three-quarters of an inch. This gauge provides a pressure range from zero to thirty pounds per square inch gauge.

• Available with an analog readout and On-Off indicator.
• Size options from one and a half inches to three and a half inches.
• Features a removable lens cover for cleaning.

Product Highlights

This air gauge is suitable for pneumatic control systems. It offers straightforward readability with black print against a white background. The gauge also includes a metric scale for convenience.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: G-2010-101

Technical Specifications

• Pressure Range: 0 to 30 psig
• Type: Electromechanical Gauge
• Mounting Style: Flush mount with U-clamps
• Size: 2 inches diameter
• Weight: 3.999 pounds
• Application: Suitable for industrial control systems
