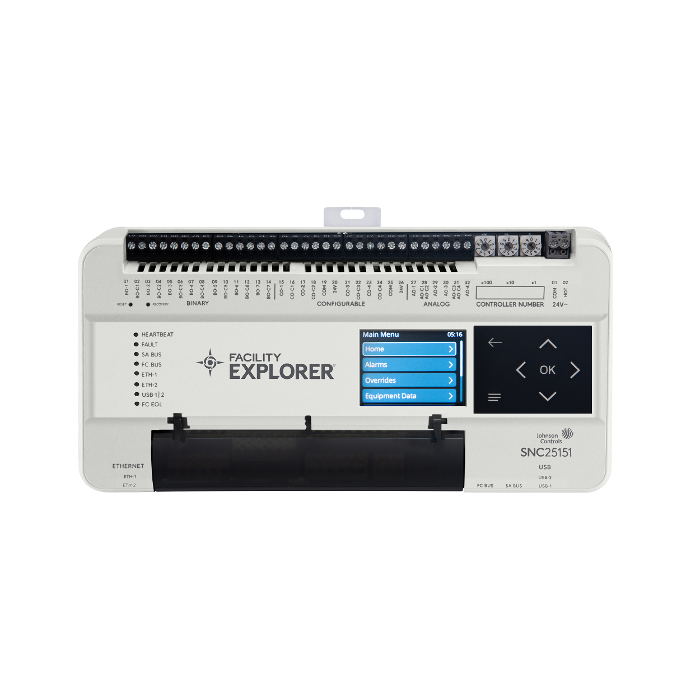

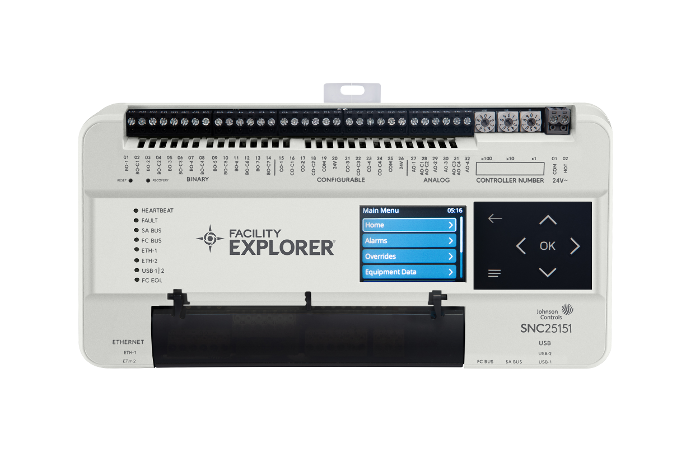

Johnson Controls F4-SNC25152-0H SNC Controller With Display, 40 IO

Product Description

The Johnson Controls F4-SNC25152-0H is a programmable SNC controller designed for plant automation. It features an LCD display and can supervise up to fifty field devices. This model caters to a variety of applications including heating, lighting, and security. The controller ensures effective system management through its two Ethernet ports, RS-485, and two USB ports. It supports both BACnet IP and MS/TP communication networks for versatile connectivity.

• Supports 40 I/O points
• Ability to supervise multiple devices
• Equipped with an LCD display

Product Highlights

The SNC controller offers comprehensive management of equipment and systems. The interface allows users to monitor alarms and trends easily. Remote access is available via the Site Management Portal.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: F4-SNC25152-0H

Technical Specifications

• I/O Points: 40
• Type: Programmable
• Ports: RS-485, Ethernet, FC Bus Port, SA Bus Port, USB
• Mounting: DIN Rail Mount, Panel Mount, Surface Mount
• Power Voltage: 24 VAC
• Operating Conditions: 32 F to 122 F (0 C to 50 C)
• Power Consumption: 24 VAC, 33 VA
• Communication Network: BACnet MS/TP, BACnet IP
• Approvals: UL Listed, FCC Compliant
