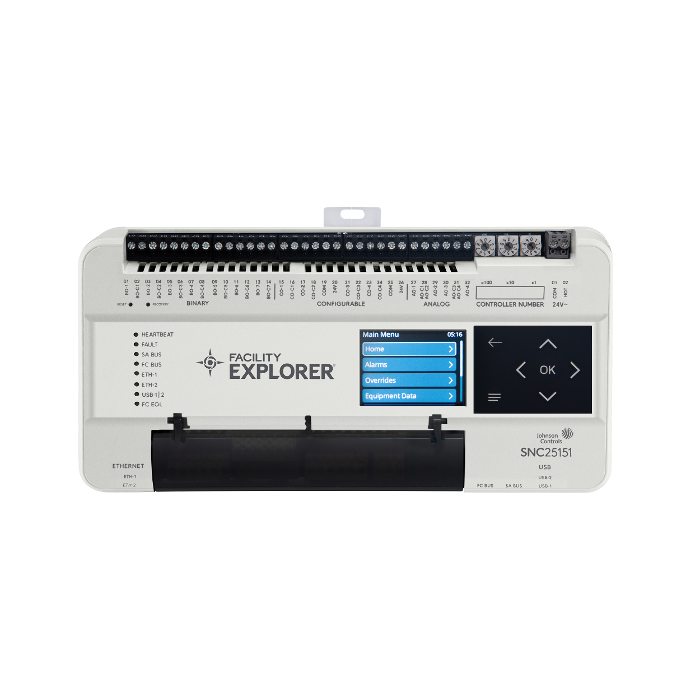

Johnson Controls F4-SNC25152-04H SNC Controller With Display, 40 IO

Product Description

The Johnson Controls F4-SNC25152-04H SNC controller is a programmable plant controller with 40 IO. It features 14 UI, 11 BI, 4 CO, 4 AO, and 7 BO, and supports BACnet IP subnetwork BACnet IP and MS/TP. The controller is equipped with 2 Ethernet ports, FC Bus, SA BUS, and 2 USB ports. It is designed for equipment, heating, lighting, and security applications.

• Features an LCD display for easy viewing of alarms, overrides, equipment data, and trends.
• Supervises up to 4 field devices.
• Supports remote access via Site Management Portal (SMP) user interface.

Product Highlights

Programmable plant controller with 40 IO, BACnet IP, and MS/TP support. Includes LCD display and remote access capabilities.

Product Information

Standard Information

• Brand: Johnson Controls
• Manufacturer Part Number: F4-SNC25152-04H

Technical Specifications

• Power Consumption: 24 VAC, 33 VA
• Operating Conditions: 32 F To 122 F (0 C To 50 C)
• Approvals: UL Listed, File E107041, CCN PAZX, UL 916, Energy Management Equipment; FCC Compliant To CFR47, Part 15, Subpart B, Class A, Conformance To FIPS 140-2 Level 1 And Validated Under NIST Certificate #3389
• Communication Network: BACnet MS/TP, BACnet IP
• IO: 40
• Ports: RS-485, Ethernet, FC Bus Port, SA Bus Port, USB
• Controller Product Family: SNC
• Type: Programmable
• Power Voltage: 24 VAC
• Application: Equipment, Heating, Lighting, Security
• Mounting: DIN Rail Mount, Panel Mount, Surface Mount
