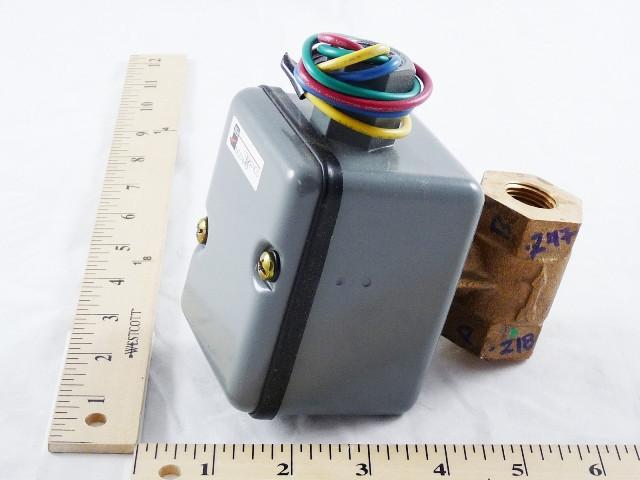

Johnson Controls F261MEH-V01C Low-Flow Flow Switch NEMA 4 Enclosure Replacement for F61MD-1C F61MD-1

Product Description

The Johnson Controls F261MEH-V01C is a low-flow flow switch designed for reliable operation in diverse environments, equipped with a NEMA 4 enclosure. Essential for monitoring and controlling fluid flow in pipelines carrying water, ethylene glycol, or other non-hazardous fluids, this device excels in applications involving swimming pool water and lubricating oils.

• Features a durable Type 4 (NEMA) enclosure, suitable for both indoor and outdoor applications.
• Viton diaphragms support usage with chlorinated or treated water without compromising quality.
• Optimized for low-flow conditions, activating the switch with minimal fluid flow requirements.

Product Highlights

This flow switch can handle fluid flow rates as low as 0.6 GPM for water applications, enhancing efficiency in low-flow scenarios. Its robust construction allows a maximum fluid pressure of 290 psi, suitable for a wide range of operational conditions.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model: F261MEH-V01C

Technical Specifications

• Connection Size: 1/2 FNPT
• Max. Flow Rate (GPM): 17
• Max. Pressure (PSI): 290 psi
• Enclosure: Type 4 (NEMA)
• Switch Type: SPDT
• Application: Suitable for water, ethylene glycol, and other non-hazardous fluids
• Wetted Materials: Viton
• Electrical Ratings: 24V-230V
