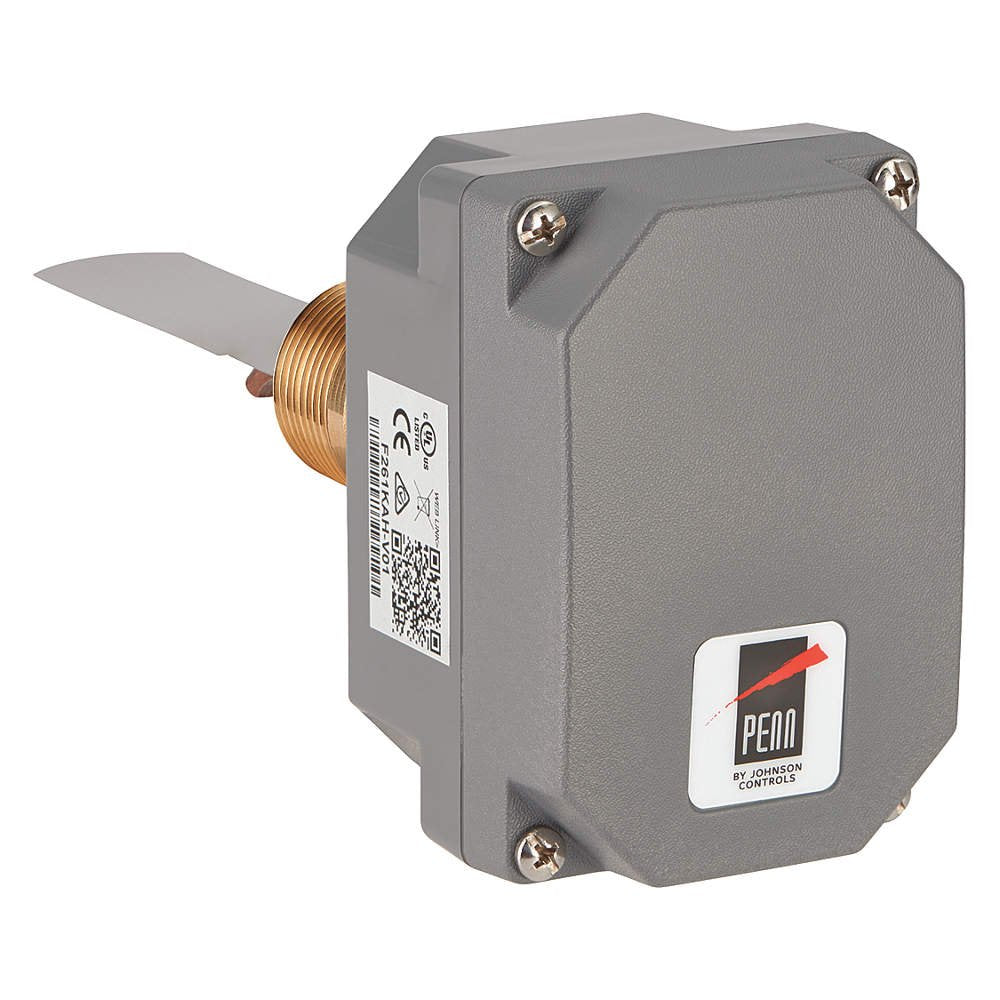

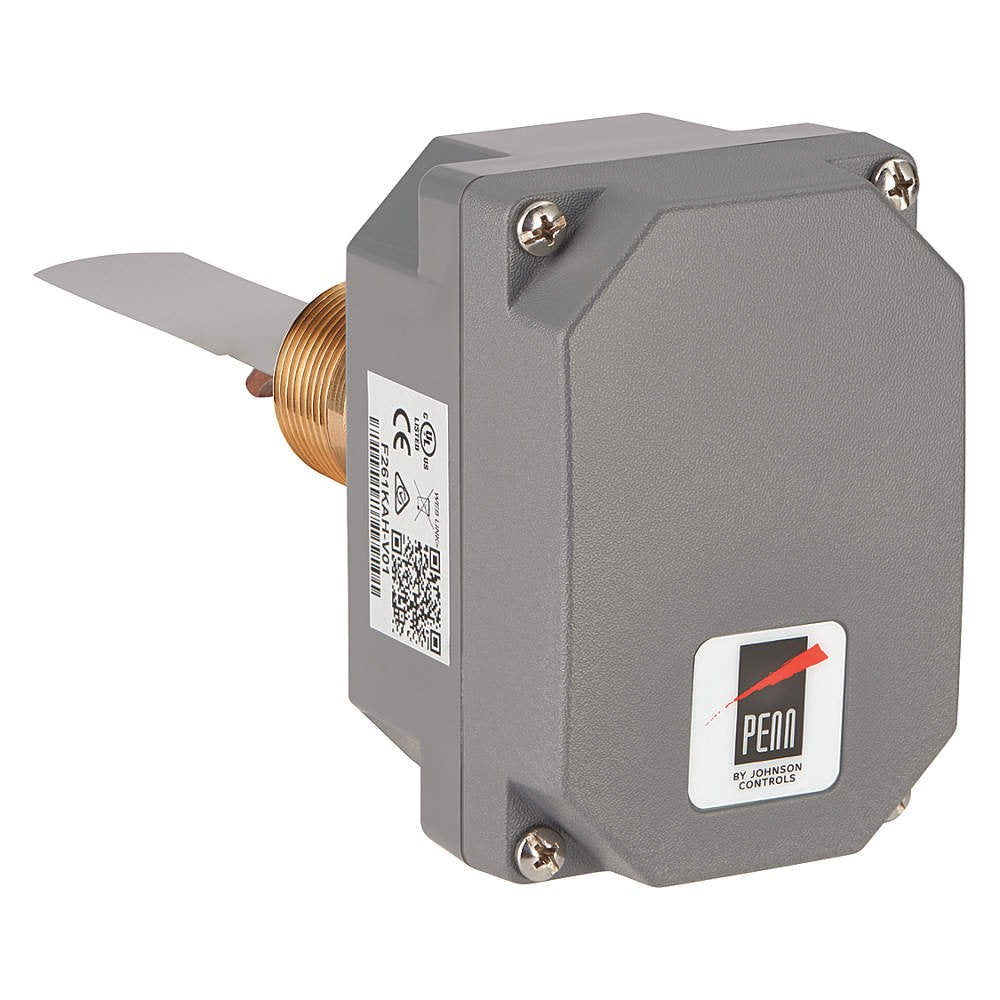

Johnson Controls F261KFH-V01C Flow Switch, Low Flow 3/4 Inch NPTF

Product Description

The Johnson Controls F261KFH-V01C flow switch is engineered for precision in fluid flow monitoring within systems using water, ethylene glycol, or other non-hazardous fluids. Ideal for a variety of installations, this model is compatible with swimming pool water and lubricating oils.

• Robust NEMA 3R and NEMA 4 rated enclosures enable both indoor and outdoor applications.
• Equipped with Viton diaphragms for connectivity in chlorinated or treated water lines.
• Low-flow model designed for fluid monitoring, activating the switch at less than 1.0 GPM for water and up to 9.0 GPM for steam.

Product Highlights

Constructed to handle a maximum fluid pressure of 290 psi, the Johnson Controls flow switch accommodates a wide range of pressure and flow conditions in pipes larger than one inch. The adaptable design features a 3/4 inch NPTF inlet and outlet, making installation straightforward and efficient for various pipe sizes.

Technical Specifications

• Switch Type: SPDT
• Flow Rate: 0.6 to 17 GPM
• Max. Pressure: 290 psi
• Enclosure: NEMA 3R, Type 4
• Connection Size: 3/4 inch FNPT
• Compliance: UL, CE, RCM Compliant
