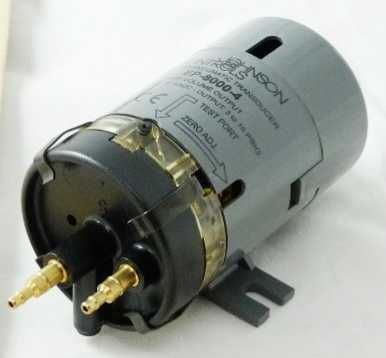

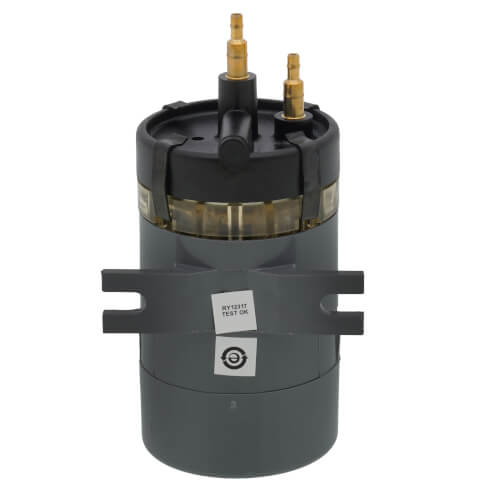

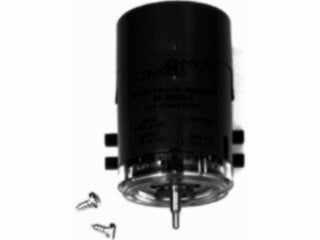

Johnson Controls EP-8000-4 Electronic To Pneumatic Transducer 4-20mA Input Range 3 To 15 Psig

Product Description

The Johnson Controls EP-8000-4 is an electronic to pneumatic transducer designed to convert voltage signals to pneumatic outputs. It has a current input range of four to twenty milliamps and a factory output range from three to fifteen psi. This transducer is suitable for various applications including process control systems and HVAC monitoring.

• Compact design for easy installation
• Factory set, fully adjustable zero and span
• Compatible with a variety of pneumatic actuators

Product Highlights

This transducer provides high accuracy with low hysteresis, enhancing measurement reliability. Its simple design allows for versatile mounting options, making it ideal for both new installations and upgrades.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: EP-8000-4

Technical Specifications

• Pressure Output Range: 3 to 15 psig
• Input Range: 4 to 20 mA DC
• Mounting: Surface mounted or on a valve actuator
• Operating Humidity: 10 to 90% RH, non-condensing
• Operating Temperature: 41 to 122 degrees Fahrenheit
• Air Capacity: 12.3 ml/s max
• Sensitivity: 0.3 psig/psig
