JOHNSON CONTROLS DP110050U5V3V Wet-to-Wet Differential Pressure Transducer

Product Description

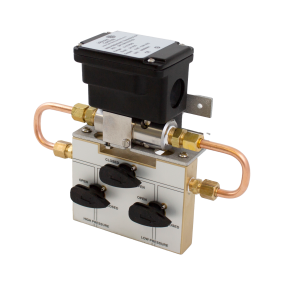

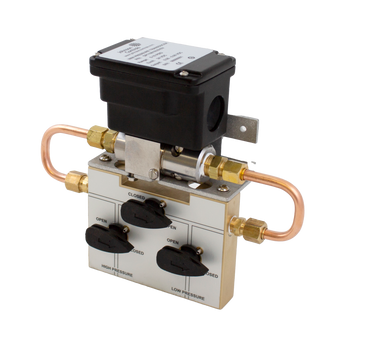

The Johnson Controls DP110050U5V3V is a differential pressure transducer suitable for wet-to-wet applications. It employs a single diaphragm to accurately measure differential pressure. This transducer includes a stainless steel capacitive sensor and provides a linear analog output corresponding to the pressure. A five-valve manifold is included, enhancing installation and maintenance.

• Accuracy of ±0.25% FS at constant temperature
• Five-valve manifold included for easier operation
• Compatible with both gas and liquid measurement

Product Highlights

This transducer is designed for reliable performance in various environments, making it ideal for HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: DP110050U5V3V

Technical Specifications

• Pressure Transducer Type: Wet to Wet (DP110)
• Range: 0 - 50 psid
• Direction: Unidirectional
• Output: 0 - 10 VDC
• Accuracy: ±0.25% FS
• Non-Linearity: ±0.20% FS
• Hysteresis: 0.10% FS
• Non-Repeatability: 0.05% FS
• Compensated Range: 30°F to 150°F (-1°C to +65)
