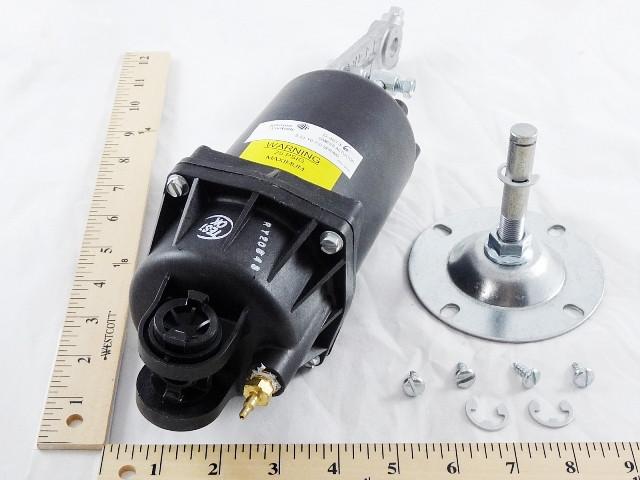

Johnson Controls D-4073-6 Damper Actuator 5-10 Pound Auxiliary Mounting

Product Description

The Johnson Controls D-4073-6 Damper Actuator is a highly reliable pneumatic piston device designed for precise damper positioning within HVAC systems, particularly suitable for unit ventilators, VAVs, terminal units, and small ventilating dampers up to 11.7 square feet.

• Optimized for both proportional and two-position volume control.
• Constructed with a glass-reinforced polymer for corrosion and chemical resistance.
• Features a telescoping linkage that ensures flexible and fast installation.

Product Highlights

Equipped with a two-way swivel connection, this damper actuator prevents binding and ensures optimal movement and power delivery. It serves as a direct replacement for the D-3073 models and a functional replacement for former D-251 actuators.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: D-4073-6

Technical Specifications

• Dimensions: Length: 11.01 inches, Width: 8.01 inches, Height: 8.01 inches
• Weight: 4.55 lbs
• Operational Range: 5 to 10 psig
• Maximum Damper Area: 11.7 square feet for two-position actuation
