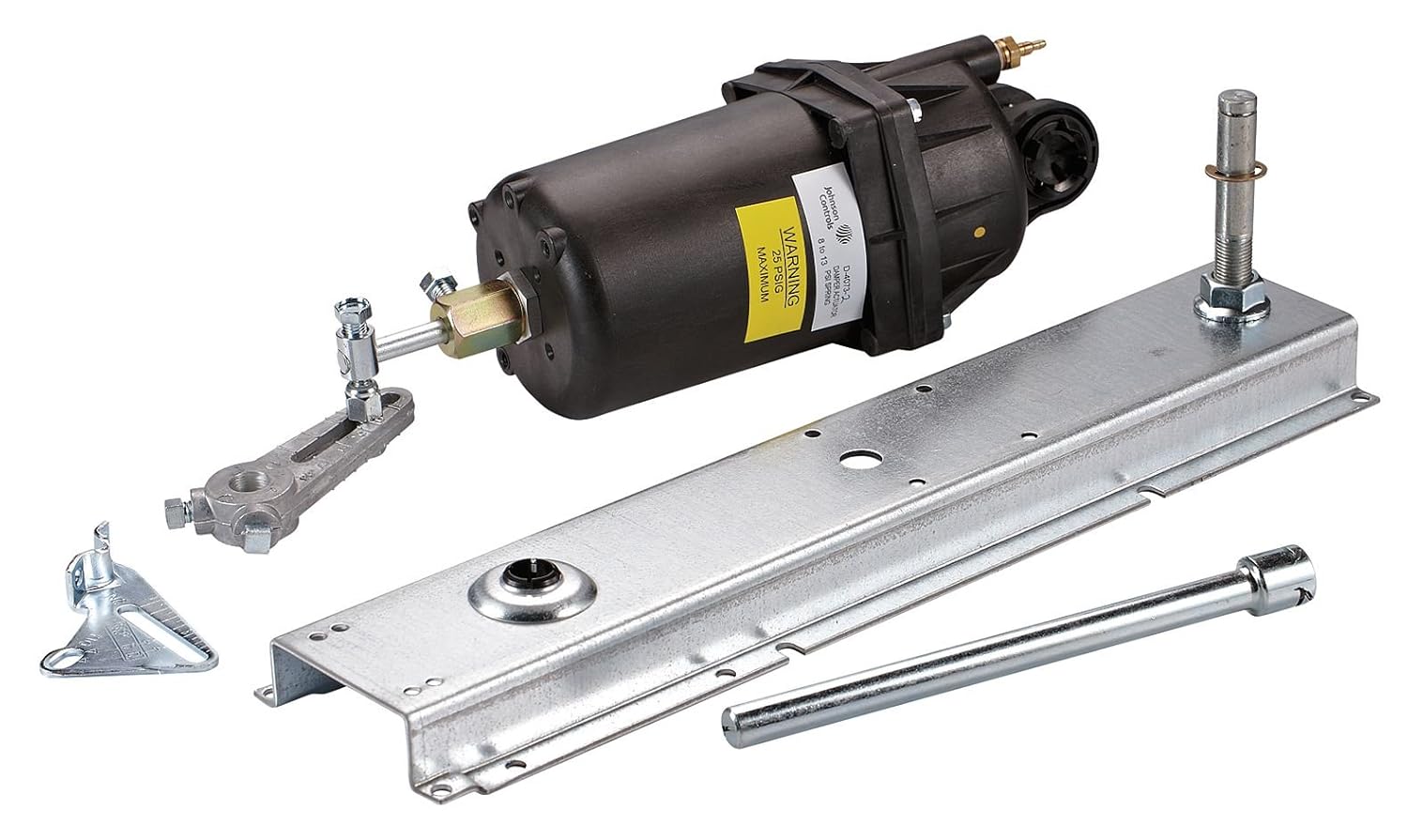

Johnson Controls D-4073-5 Series D-4073 Pneumatic Piston Damper Actuator with Auxiliary Mounting Bracket 8 to 13 psig

The Johnson Controls D-4073-5 Series D-4073 Pneumatic Piston Damper Actuator with Auxiliary Mounting Bracket is a reliable tool for positioning small dampers in HVAC systems. Built by Johnson Controls, this pneumatic actuator is essential for unit ventilators, VAVs, terminal units, and small ventilating dampers, ensuring efficient control based on pneumatic signals.

• Two-way swivel connection ensures non-binding movement.
• High torque range of 8 to 13 psig.
• Compatible with D-3073 and D-251 actuators.

This actuator is designed to control airflow in multiple applications, including proportional volume control and two-position actuation. It is suitable for areas up to 6.75 square feet for proportional control and 11.7 square feet for two-position actuation.

• Weight: 4 pounds

• Operating PSI Range: 0 to 20
• Max. Air Pressure: 25 psi
• Stroke: 3 inches
• Nominal Spring Range: 8 to 13 psi
• Net Force Exerted @ 0 PSI: 54 lb
• Net Force Exerted @ 18 PSI: 47 lb
• Country of Origin: Mexico
• Compatible Actuators: D-3073, D-251
• Package Dimensions: 9.5H x 17L x 9.5W inches
