Johnson Controls D-4073-1 Pneumatic Damper Actuator 8-13 psi

Product Description

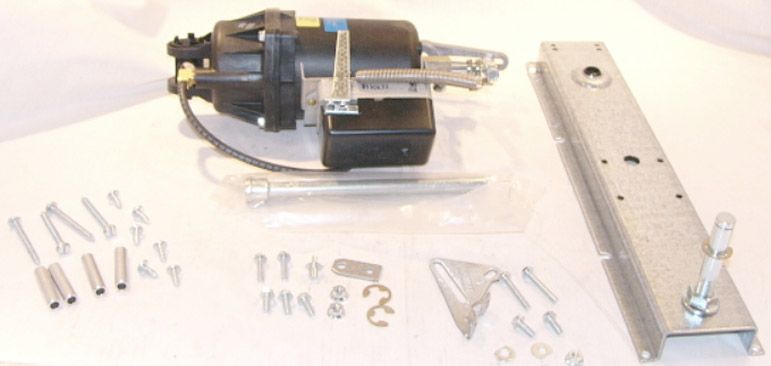

The Johnson Controls D-4073-1 is a pneumatic damper actuator designed for efficient airflow control in HVAC systems. This actuator features an eight to thirteen psig spring range and a three-inch stroke, providing reliable performance. The product is compatible with a variety of air connection setups, making it versatile for different applications.

• Two-way swivel connection for non-binding movement
• Lightweight glass-reinforced polymer housing
• Includes D-9502 positioner kit and universal mounting bracket

Product Highlights

This actuator is suitable for use in both residential and commercial HVAC applications. Its robust design allows for extended life and performance in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: D-4073-1

Technical Specifications

• Spring Range: 8 to 13 psig
• Stroke: 3 inches
• Air Connection: 1/4 inch O.D. barbed fitting
• Operating Conditions: -20°F to 150°F (-29°C to 66°C)
• Housing Material: Glass-reinforced polymer, UL 94 HB flame class rating
• Weight: 7.78 pounds
• Dimensions: 16.65 inches (L) x 10.1 inches (W) x 4.65 inches (H)
