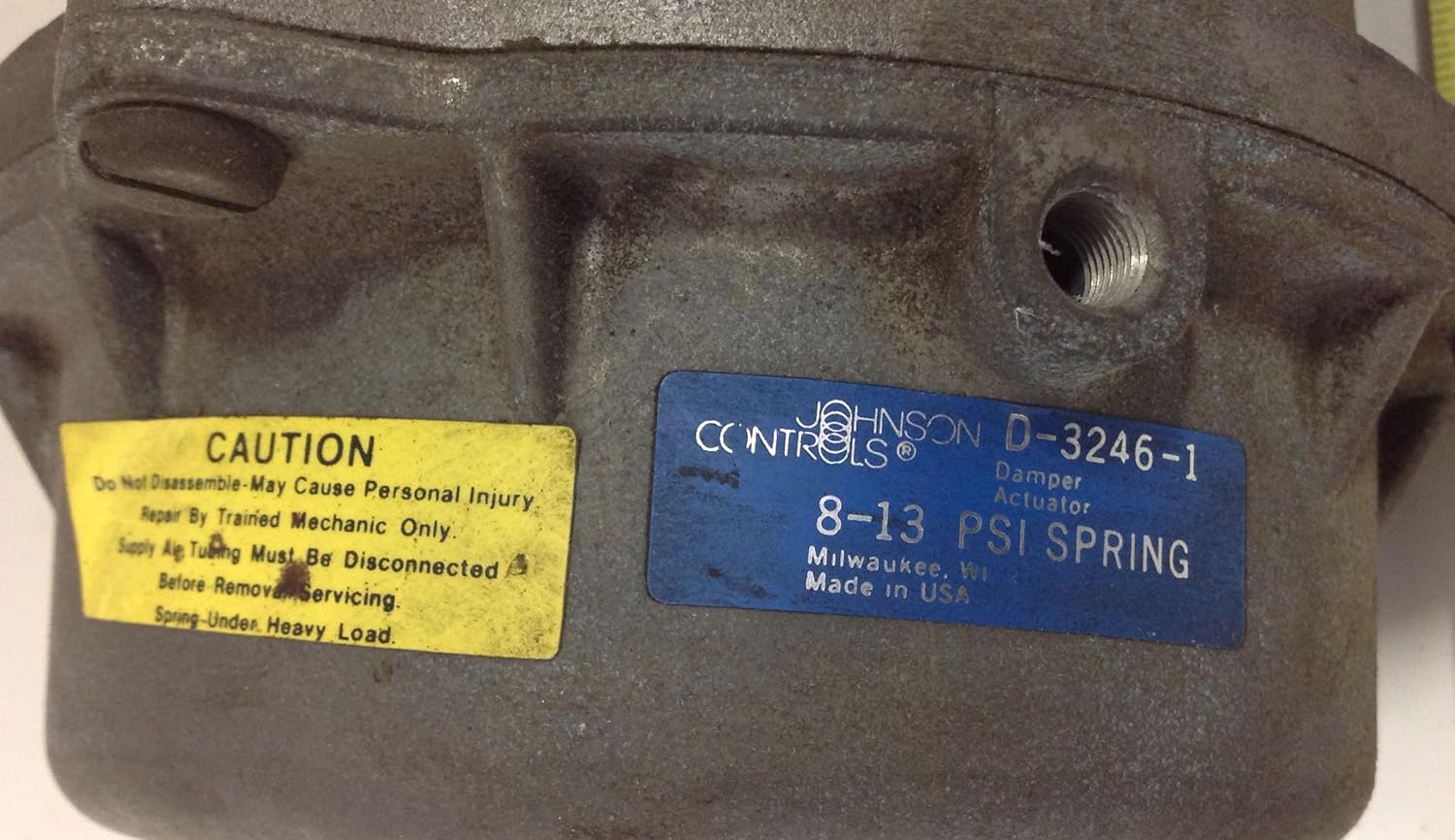

Johnson Controls D-3246-1 Pneumatic Piston Damper Actuator Single 8 to 13 psig Spring Swivel Mount

Product Description

The Johnson Controls D-3246-1 Pneumatic Piston Damper Actuator is a robust device used for adjusting dampers in HVAC systems. Engineered for both industrial and commercial settings, this actuator ensures efficient air flow control.

• Robust aluminum housing that is lightweight and fire-resistant
• Flexible mounting options including swivel, single pedestal, or duplex pedestal
• Operational stroke length of six inches

Product Highlights

This high-performance actuator is specifically designed for large damper applications in ventilation systems. It responds effectively to pneumatic control signals and can handle higher torque requirements.

Product Information

Standard Information

• Brand: Johnson Controls
• Reference ID: JOHNSONCONTROLSD32461

Technical Specifications

• Stroke Length: 6 inches
• Spring Range: 8 to 13 psi
• Max. Air Pressure: 25 psi
• Material: Aluminum

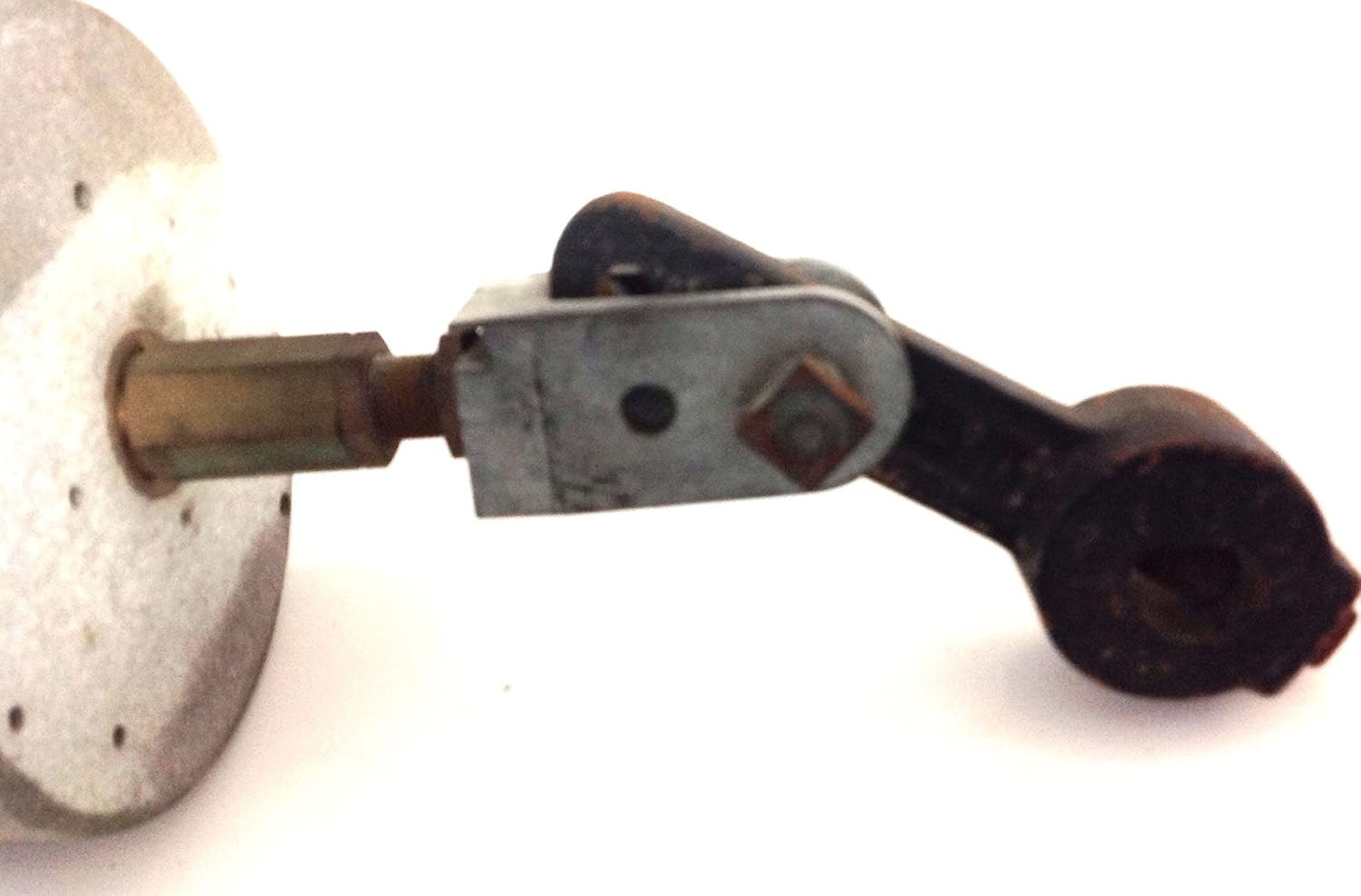

• Mount Type: Swivel Mount, Pivot
• Dimensions: Length: 15 3/4 inches, Width: 12 inches, Height: 28 inches
