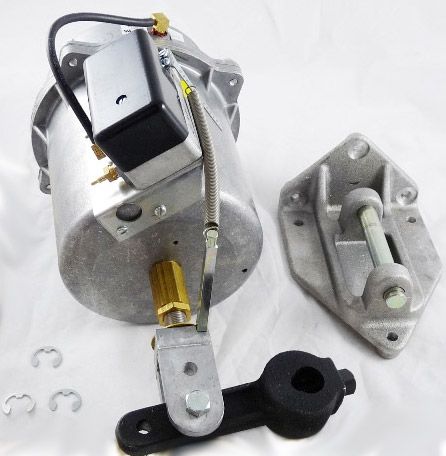

Johnson Controls D-3244-3 Pneumatic Piston Damper Actuator 8 to 13 psig Spring with D-9502-5 Positioner

Product Description

The Johnson Controls D-3244-3 Pneumatic Piston Damper Actuator is designed for various HVAC applications. This actuator operates inlet vanes on fans and compressors in response to output signals from a pneumatic controller. The actuator is suitable for large damper applications, provided the damper can withstand high torque capabilities.

• All-aluminum housing
• Flexible mounting options
• Four-inch stroke

Product Highlights

This product enhances HVAC system performance by providing reliable damper control and efficient air distribution. It supports energy savings and maintains ventilation quality in indoor spaces.

Product Information

Standard Information

• Item Number: D-3244-3
• Brand: Johnson Controls
• Model: D-3246
• MPN: D-3244-3
• Weight: 18.00

Technical Specifications

• Operating PSI Range: 0 to 25
• Max. Air Pressure: 25 psi
• Stroke: 4 inches
• Nominal Spring Range: 8 to 13 psi
• Mounting Type: Pivot
• Net Force Exerted @ 0 PSI: 328
• Net Force Exerted @ 18 PSI: 1,223
• Includes: D-9502-5 Positioner, Swivel Mount Bracket, Clevis, and Crank Arm
• Provides: Gradual or Positive Actuation of large Dampers
