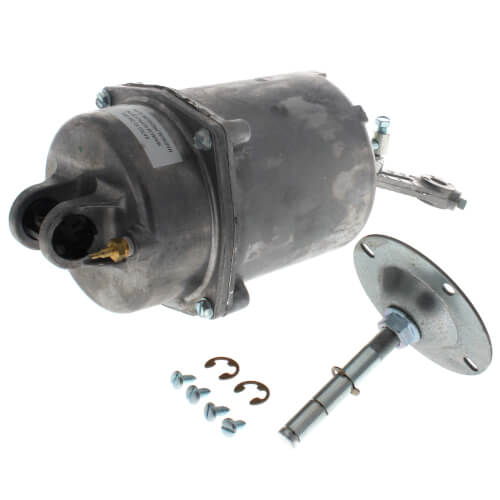

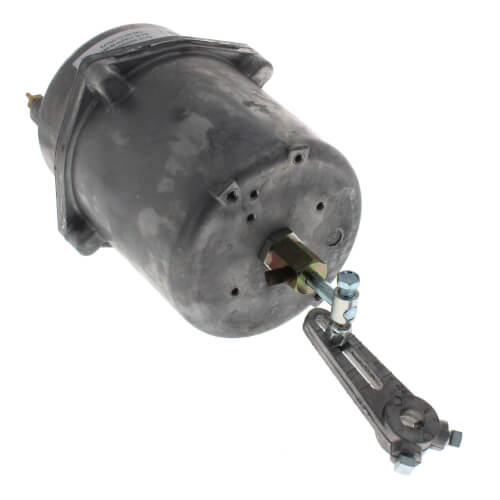

Johnson Controls D-3153-5 Pneumatic Damper Actuator 8-13 PSIG

Product Description

The Johnson Controls D-3153-5 is a pneumatic damper actuator designed for essential applications in HVAC systems. It operates efficiently with a spring range of eight to thirteen PSI and features a stroke length of three inches. This actuator uses a barbed fitting air connection that accommodates 5/32 or 1/4 inch O.D. tubing. It includes an auxiliary mounting kit for streamlined installation.

• Designed to operate ventilating dampers
• Includes a lightweight aluminum housing
• Features telescoping linkage for fast installation

Product Highlights

This actuator ensures reliable performance by utilizing DampAct technology that minimizes noise and vibration.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: D-3153-5

Technical Specifications

• Operating Conditions: -20°F to 150°F (-29°C to 66°C)
• Housing Material: Die-Cast Aluminum
• Max Damper Area: 16 square feet for proportional control; 25 square feet for two-position actuation
• Weight: 7.48 lbs
• Dimensions: 10.55 inches (L) x 16.9 inches (W) x 7.85 inches (H)
