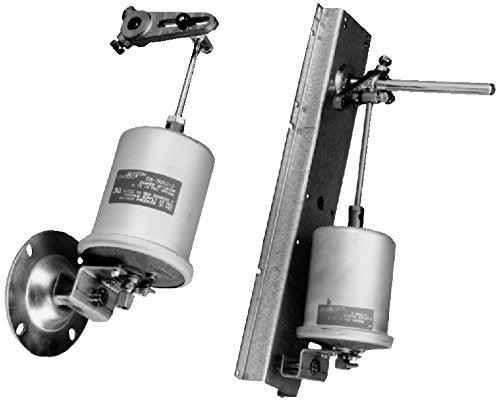

Johnson Controls D-3062-4 Series Pneumatic Piston Damper Actuator for HVAC Systems

Product Description

The Johnson Controls D-3062-4 Pneumatic Piston Damper Actuator is designed for precise positioning of small dampers in various HVAC applications. Engineered for both VAV and terminal units, this actuator ensures optimal functionality with pneumatic controllers or electro-pneumatic transducers.

• Optimized for small ventilating dampers up to four square feet for proportional volume control.
• Compatible with two-position actuation for damper areas up to six point 25 square feet.
• UL component recognized, suitable for use with UL Classified 555/555S smoke and fire/smoke dampers up to a degradation temperature of 250 degrees Fahrenheit.

Product Highlights

This actuator boasts a high power-to-size ratio, making it ideal for confined spaces.

Technical Specifications

• Brand: Johnson Controls
• Model Number: D-3062-4
• Type: Pneumatic Piston Damper Actuator
• Pressure Range: 11 to 15 psig
• Maximum Damper Area: 6.25 square feet
• Operating Temperature: Up to 250 degrees Fahrenheit (121 degrees Celsius)
• Dimensions: 6 x 6 x 5 inches
• Weight: 4 pounds
