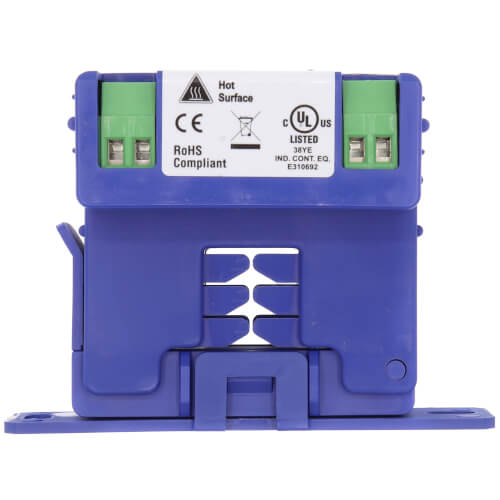

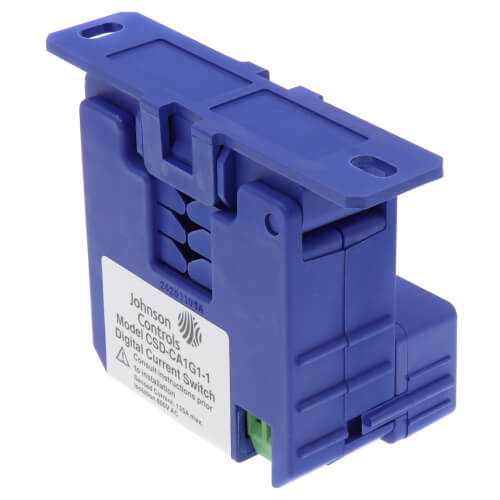

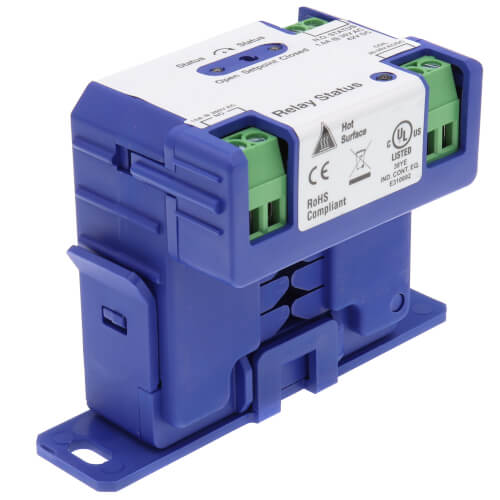

Johnson Controls CSD-CA1G1-1 Series CSD Digital Output Current Switch with LED Display, Clamp/Split Core, Adjustable Threshold, 1.25 amps, 24 V SPST

Product Description

The Johnson Controls CSD-CA1G1-1 Current Switch is a non-intrusive, self-powered device designed for detecting current in wiring and cables. Ideal for monitoring small current loads in various applications, this model enhances system efficiency without the need for an external power source.

• Utilizes solid-state output for enhanced reliability and performance.
• Features an adjustable threshold for tailored operation.
• Equipped with a snap-in mounting bracket for easy installation.

Product Highlights

This product features a split-core design allowing non-invasive installation with minimal downtime. It's perfect for use in monitoring fans, pumps, and lighting systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: CSD-CA1G1-1

Technical Specifications

• Current Range: 0.25 to 200 Amps
• Output Voltage: 24 V
• Actuation Coil: 20 to 30 VAC/VDC
• Frequency: 50 to 60 Hz
• Output Type: SPST
• Core Type: Split Core
