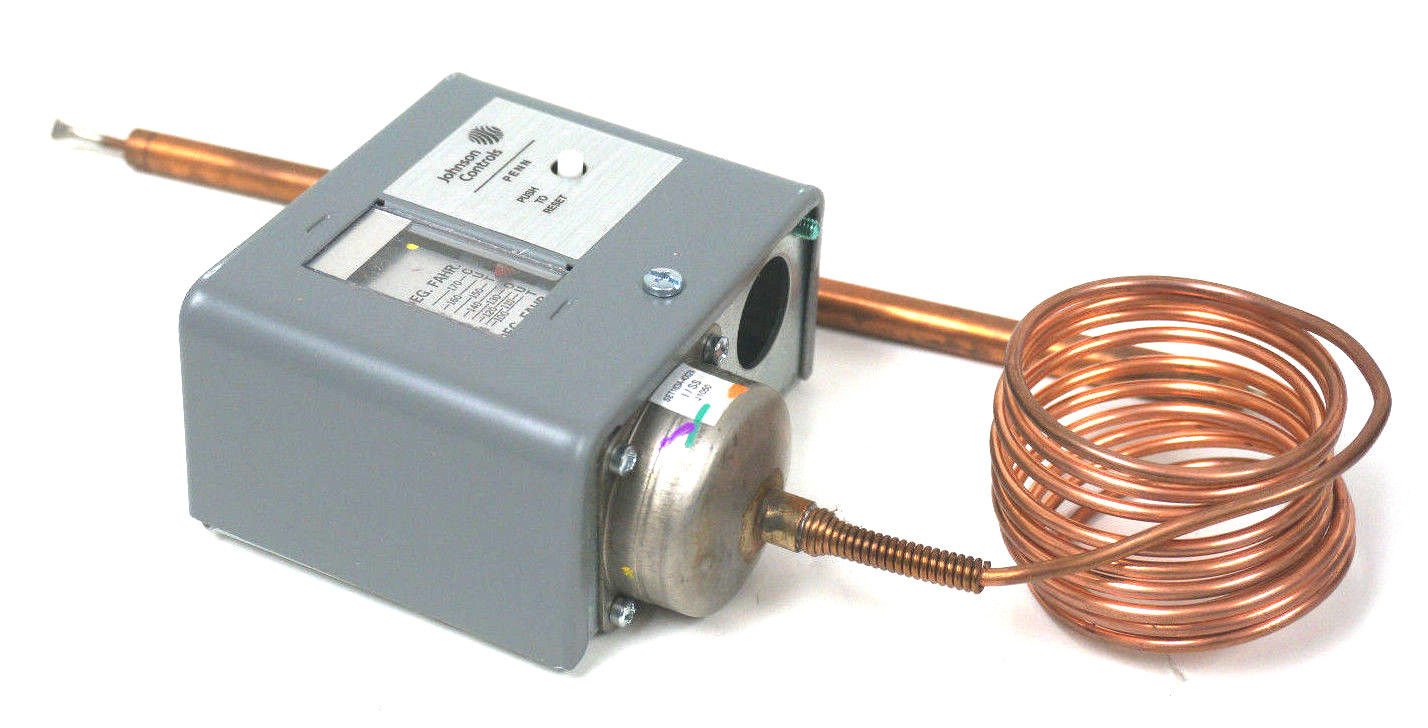

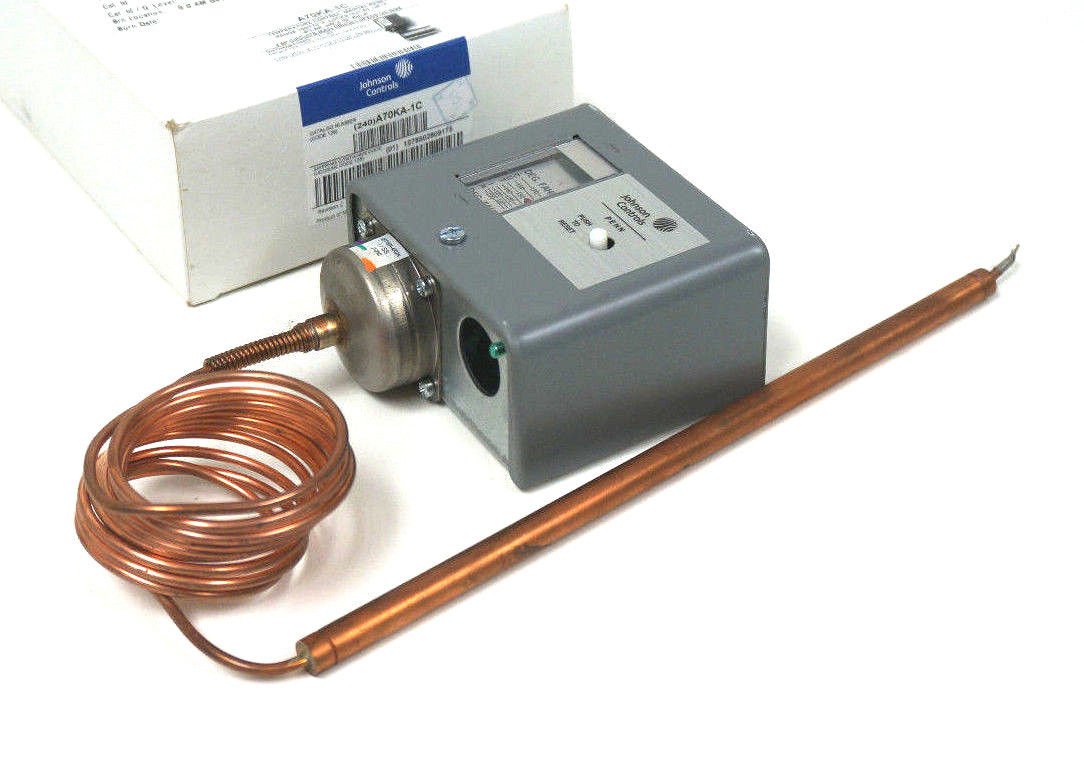

Johnson Controls A70KA-1C Line Volt Mechanical Thermostat, 120 to 600 VAC

Product Description

The Johnson Controls A70KA-1C is a line volt mechanical thermostat designed to operate between one hundred degrees to one hundred seventy degrees Fahrenheit. This thermostat operates at voltages from one hundred twenty to six hundred VAC, making it suitable for a range of HVAC applications.

• Long-life, snap-acting contacts
• Automatic or manual reset options
• Remote sensing capability with included bulb

Product Highlights

The A70KA-1C thermostat is ideal for controlling heating and cooling systems effectively. It features durable construction and flexible installation options.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model Number: A70KA-1C

Technical Specifications

• Voltage Range: 120 to 600 VAC
• Control Range: 100 to 170 Degrees F
• Full Load Amps @ 120VAC: 16A Main, 6A Aux
• Height: 3.25 inches
• Width: 4 inches
• Depth: 2.09375 inches
• Number of Switches: 2
• Sensor Type: Bulb
• Contact Type: Snap Action
