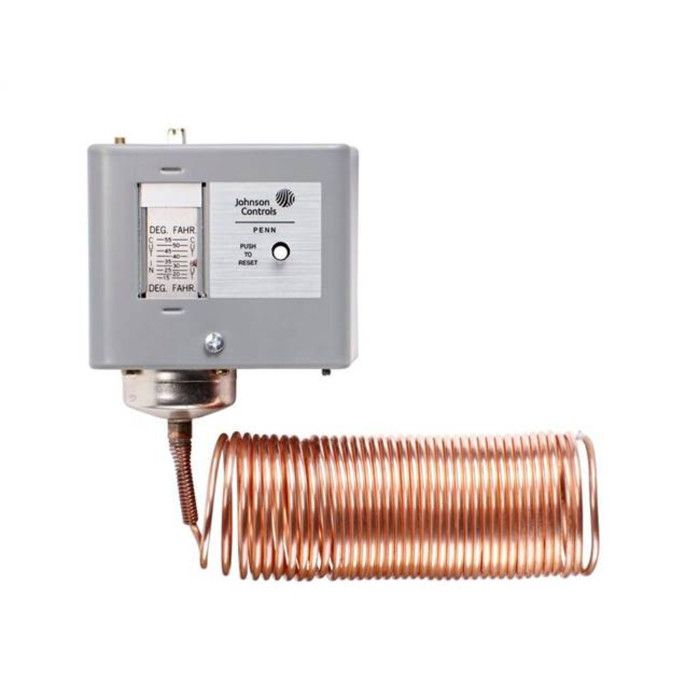

Johnson Controls A70GA-1C Two-Circuit Temperature Control 15-55 Degree F Range 20 Cap

Product Description

The Johnson Controls A70GA-1C is part of the A70 Series Two-Circuit Temperature Control. This device uses a vapor-charged sensing element and has a four-wire, two-circuit contact block with isolated sets of contacts. When the main contact opens, the auxiliary contact closes.

• Long-life, snap-acting contacts
• Automatic or manual reset models
• 20 capillary

Product Highlights

Designed for two-circuit temperature control applications. Manufactured in the United States by Johnson Controls.

Product Information

Standard Information

• Brand: Johnson Controls
• Country of Origin: United States
• Model: A70GA-1C

Technical Specifications

• Control Range: 15 to 55 Degrees F
• Bulb Length: 20 ft
• Differential: 5 Degrees F
• Voltage: 120 to 600VAC (Main), 120 to 240VAC (Auxiliary)
• Switch Type: SPST
• Enclosure Type: Galvanized/Steel
• Temperature Sensitivity: +/-1 Degrees F
• Mounting Type: Flat Surface
• Max Operating Temperature: 170 Degrees F
