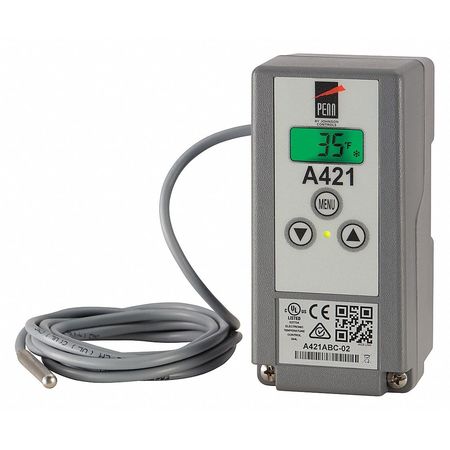

Johnson Controls A421ABT-02C Electronic Single Stage Temperature Control, 120/2

SKU / MPN:
A421ABT-02C
SKU / MPN: A421ABT-02C

$108.89
Notify Me

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Single Stage Temp Controller with Sensor, Duty-Cycle Timer, 120/240VAC, NEMA1, 6' 7 lead, -40 to 212F, HTG/CLG

Specifications:

Switch Type: SPDT
Switch Action: Open/Close on Rise
Voltage Range: 120/240V AC
Control Range: -40 to 212F
Differential: 1 to 30F
Number of Relay Inputs: 1
Number of Relay Outputs: 1
Full Load Amps @ 120VAC: 16 A
Full Load Amps @ 240VAC: 8 A
Sensor Type: A99
Sensing Bulb Dia.: 1/4 in
Sensing Bulb Length: 2 in
Enclosure Type: NEMA 1
Height: 5 in
Width: 2-3/8 in
Depth: 2-3/8 in
Color: Gray
Standards: UL, C-UL listed
Agency Compliance: C-UL listed; UL
Display Color: Black/White
Display Size: 1.5 x .5 sq in
Display Type: LCD
Includes: A99 Temp Sensor
Features: Removable Sensor with Screw Terminals, Keypad Lock Out, Sensor Failure, Adjustable Anti Short Cycle Delay
For Use With: Suitable for Temperature Control In Heating, Cooling Applications
