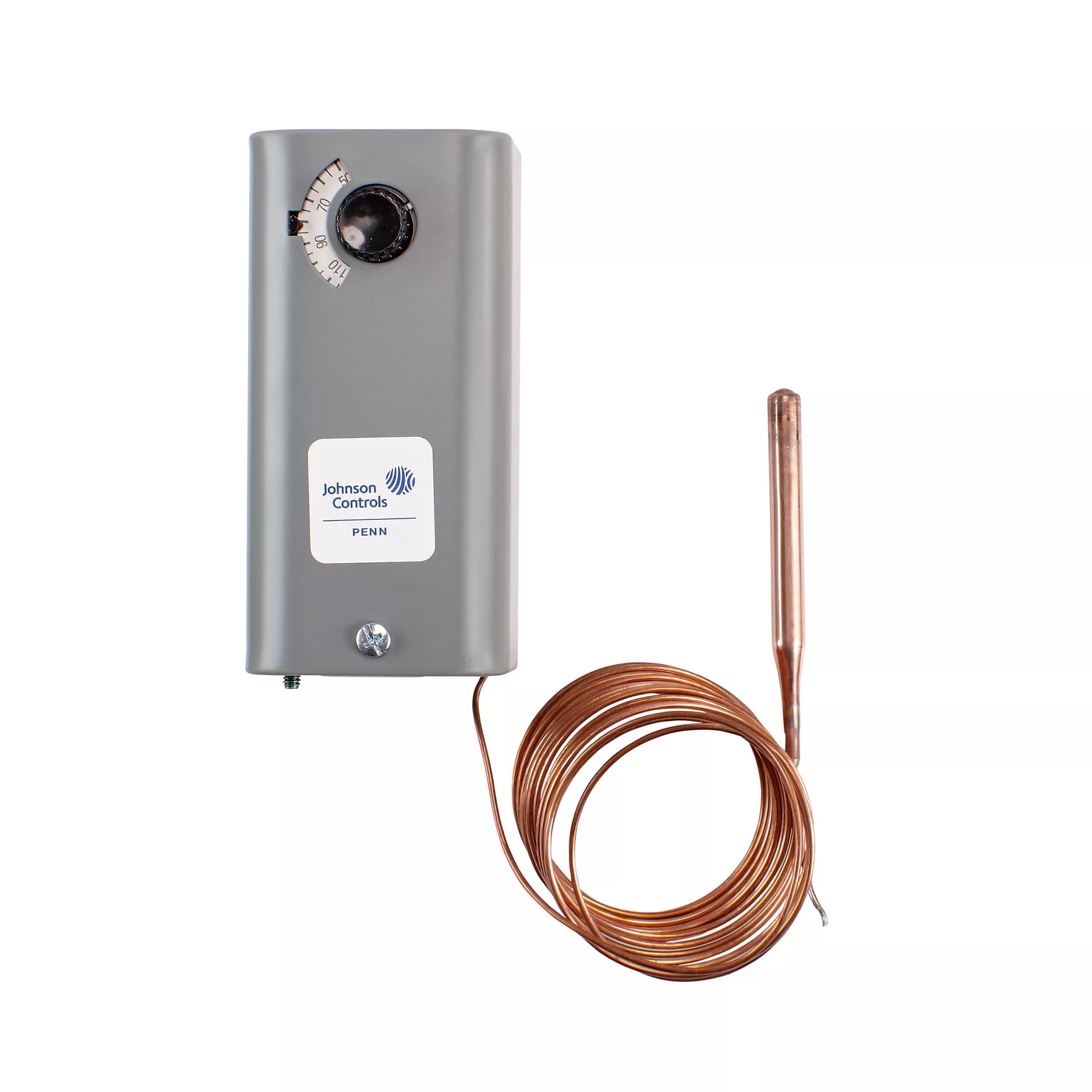

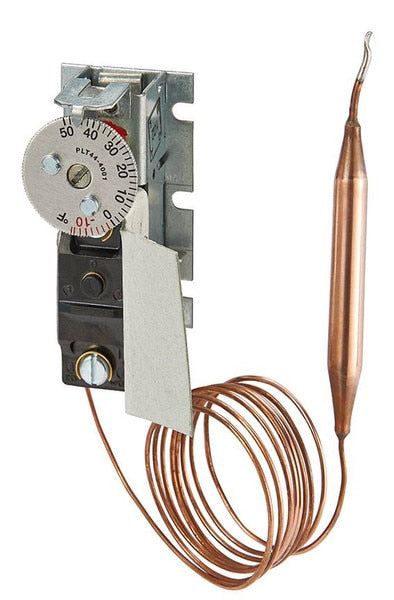

Johnson Controls A19AHA-5C Remote Bulb Temperature Control 4 feet Capillary

Product Description

The Johnson Controls A19AHA-5C is a remote bulb temperature control. It features SPDT switching and an adjustable differential. This single-stage temperature control is designed for heating or cooling applications, utilizing a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial.

• Remote Bulb Temperature Control
• SPDT switching
• Adjustable differential

Product Highlights

Remote bulb temperature control with adjustable differential and SPDT switching for heating or cooling applications.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: A19AHA-5C
• Country of Origin: MEX

Technical Specifications

• Brand: Johnson Controls
• Cycle/Hertz: 50/60 Hz
• EAN: 0078502859754
• Phase: Single
• Prop 65: Yes
• UOM: EA
• UPC: 078502859754
• Voltage: 120/240 VAC
• Country of Origin: MEX
• Item: Line Volt Mechanical Tstat
• Amperage: 15 A
• Standards: UL E6688, CSA LR948/4813 02
• Bulb Length: 5 in
• Sensor Type: Bulb
• Switch Type: SPDT
• Differential: 5 Degrees to 20 Degrees F
• Bulb Diameter: 3/8 in
• Switch Action: Open/Close on Rise
• Enclosure Type: Galvanized/Steel
• Changeover Type: Manual
• Number of Poles: 1
• Sensor Location: Remote
• Thermostat Item: Line Voltage Mechanical Thermostat
• Capillary Length: 48 in
• Differential Type: Adjustable
• Pilot Duty Rating: 125 VA
• Sensing Bulb Dia.: 3/8 in
• Temperature Scale: Fahrenheit
• Enclosure Material: Steel
• Number of Switches: 1
• Inductive Amps @ 120V: 16 A
• Pilot Duty Contacts (VA): 125 VA
• Temperature Differential: 5 Degrees to 20 Degrees F
• Thermostat Control Range: -15 Degrees to 50 Degrees F
• Remote Sensing Capability: Yes
• Temperature Control Range: -15 Degrees to 50 Degrees F
• Thermostat Heating/Cooling: Heating/Cooling
• Maximum Control Temperature: 50 Degrees F
• Minimum Control Temperature: -15 Degrees F
• Remote Sensing Bulb Included: Yes
• Capillary Length/Bulb Diameter: 4 ft Capillary, 5 in x 3/8 in Bulb
• Stages: Single
• Type: Remote Bulb
• Controls Outputs: SPDT
• MPN: A19AHA-5C
• Condition: New
• Manufacturer: Johnson Controls
• SKU: A19AHA-5C
• Item Number: A19AHA-5C
