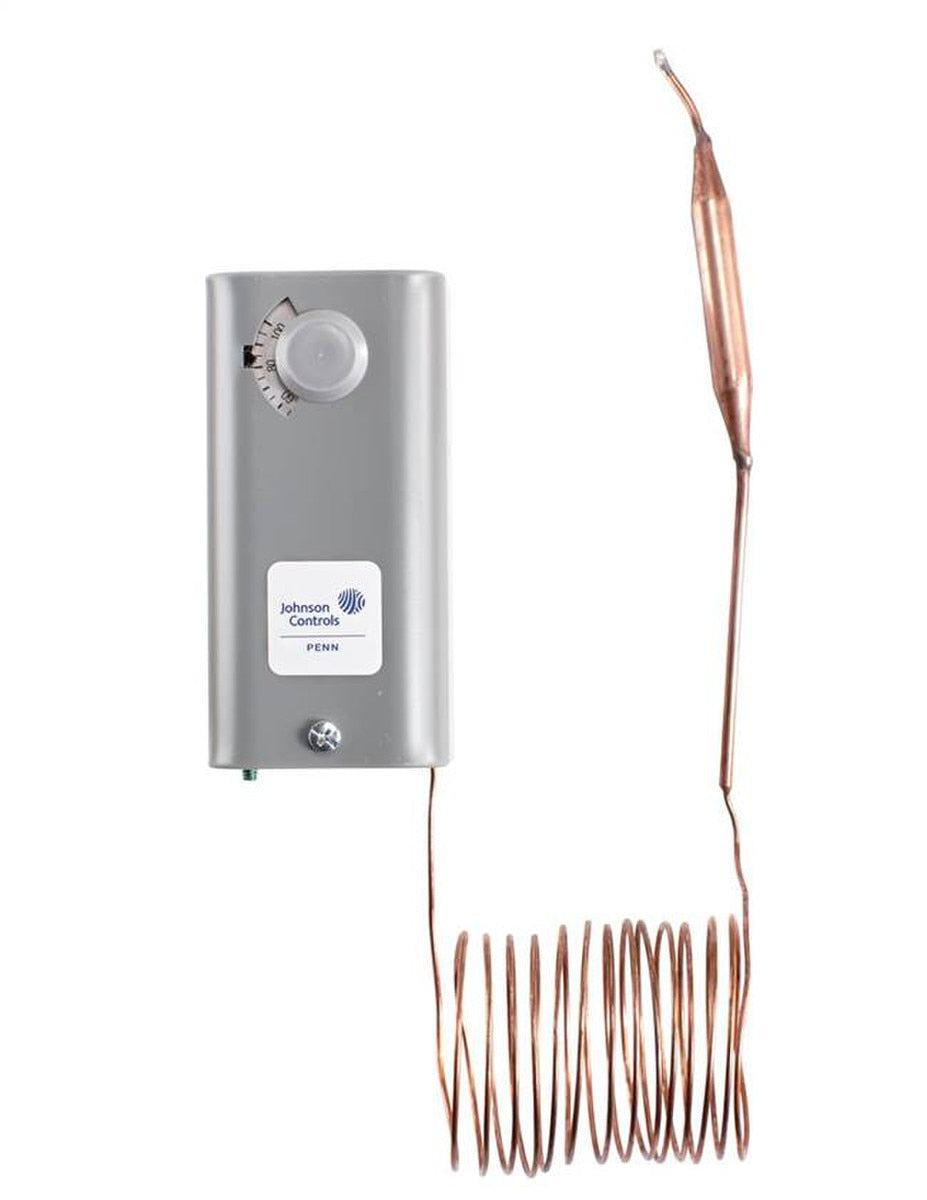

Johnson Controls A19ADB-22C Remote Bulb Temp Control 90/325F Manual Reset, 8 feet Cap, SPST, NEMA 1, 1/4 X 5 inches Bulb

Product Description

The JOHNSON CONTROLS A19ADB-22C is a Remote Bulb Temperature Control designed for precise temperature regulation. This single-stage control operates within a 90 to 325 Deg F (32 to 163 C) range, utilizing a liquid-filled sensing element and capillary for accurate readings. It features a manual reset function and an 8-foot capillary, making it suitable for various heating or cooling applications requiring specific temperature management. The device includes an SPST switch and a NEMA 1 enclosure with a 1/4 x 5 inch bulb.

• Remote Bulb Temperature Control for accurate sensing.
• Features a 90 to 325 Deg F (32 to 163 C) temperature range with manual reset.
• Equipped with an 8-foot capillary, SPST switch, and NEMA 1 enclosure with a 1/4 x 5 inch bulb.

Product Highlights

This JOHNSON CONTROLS A19ADB-22C provides reliable temperature control with a remote bulb, manual reset, an 8-foot capillary, and a NEMA 1 enclosure for versatile installation.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: A19ADB-22C
• Country of Origin: Mexico

Technical Specifications

• Type: Remote Bulb
• Stages: Single
• Switch Type: SPST
• Temperature Range: 90 to 325 Deg F (32 to 163 C)
• Reset Type: Manual Reset
• Capillary Length: 8 feet
• Enclosure Rating: NEMA 1
• Bulb Size: 1/4 x 5 inches
• Safety Feature: Lockout On High
• Switch Action: Open High
