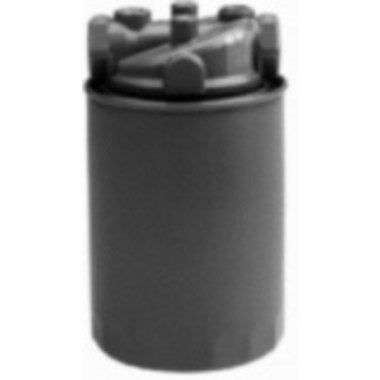

Johnson Controls A-4000-147 Oil Removal Activated Carbon Filter 12 SCFM

Product Description

The Johnson Controls A-4000-147 is an oil removal activated carbon filter designed for optimal air purity in HVAC systems. Engineered by Johnson Controls, this model is essential for maintaining clean, oil-free air in pneumatic control systems.

• Maximum flow rate of 12 scfm ensures efficient performance.
• Can operate up to a temperature limit of 125 degrees Fahrenheit.
• Designed to handle a maximum input pressure of 150 psi.

Product Highlights

This filter combines coalescing and activated carbon filtration technologies to capture oil aerosols and vapors effectively, promoting a healthier and cleaner air output. With a sturdy metal filter bowl and an automatic drain, it offers durability and ease of maintenance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A-4000-147

Technical Specifications

• Flow Rate: 12 scfm
• Temperature Limit: 125°F (52°C)
• Operating Pressure: 150 psi
• Connection Size: 1/2 inch NPT
• Filter Type: Activated Carbon, Coalescing
• Filter Efficiency: 100%
• Bowl Material: Metal
• Drain Type: Automatic
