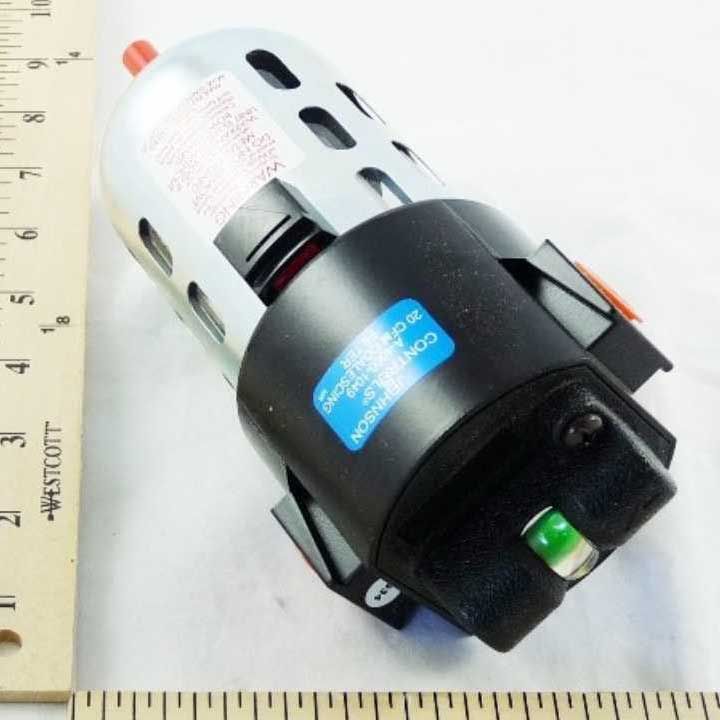

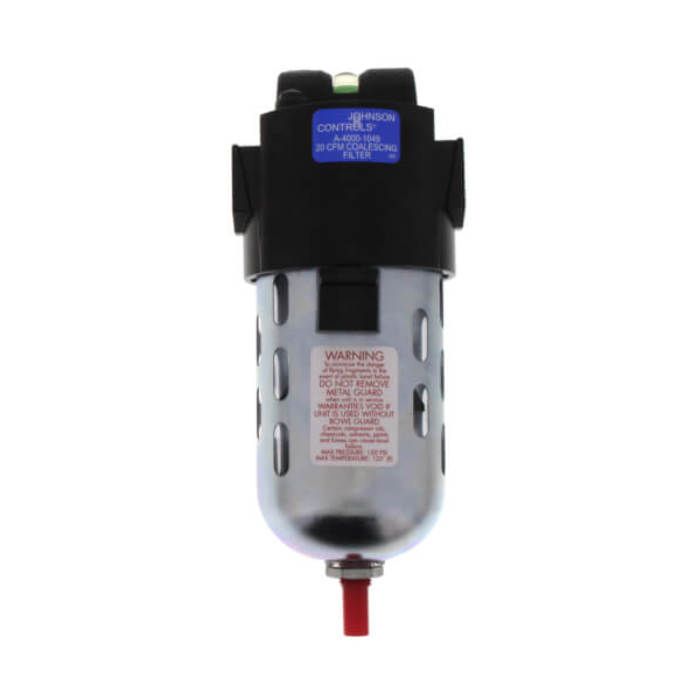

Johnson Controls A-4000-1049 Pneumatic Oil Filter 20 SCFM 3/8 NPT

Product Description

The Johnson Controls A-4000-1049 is a high-performance pneumatic oil filter designed to efficiently remove oil aerosols and vapors from compressed air systems. Equipped with both coalescing and activated charcoal filters, it ensures clean, oil-free air essential for optimal operation of pneumatic tools and instruments.

• Max flow rate of 20 SCFM with a 3/8 inch NPT connection.
• Robust construction suitable for various industrial applications.
• Compatible with a range of pneumatic control systems.

Product Highlights

Johnson Controls' oil filter stands out in its class with a maximum operating pressure of 150 psi and can handle temperatures up to 120 degrees Fahrenheit. It is designed for easy installation and replacement of filter elements, ensuring continuous protection and performance.

Product Information

Technical Specifications

• Connection Size: 3/8 inch NPT
• Flow Rate: 20 SCFM
• Maximum Pressure: 150 psi
• Operating Temperature Range: up to 120 degrees Fahrenheit
