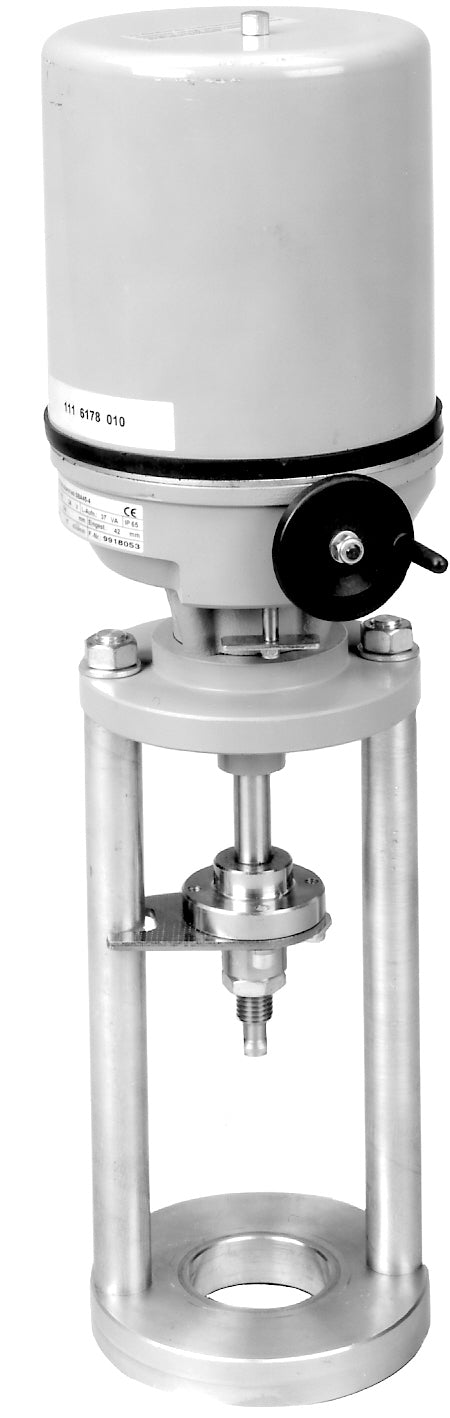

Johnson Controls VA-6100-HGC Electric Valve Actuator

Product Description

The Johnson Controls VA-6100-HGC is an electric valve actuator designed for precise control of Johnson Controls VG2000 Series valves in HVAC and industrial environments. This actuator uses a synchronous motor to achieve accurate positioning, making it suitable for a variety of applications.

• Synchronous motor with pressure switches ensuring consistent speed and fixed close-off forces
• Two-bolt coupler clamp allows for easy installation to the valve stem
• Manual hand wheel enables manual operation of the valve without power

Product Highlights

This product features proportional control capabilities, allowing for on/off or floating operation, which helps in tailored applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Manufacturer: Johnson Controls Inc

Technical Specifications

• MPN: VA-6100-HGC
• Force Output: 1,350 lb (6,000 N)
• Stroke Length: 1-21/32 in (42.07 mm)
• Potentiometer Resistance: 2,000 ohm
• Weight: 10.00015632 lbs
• Dimensions: 11.5 in (Length) x 23.5 in (Width) x 11 in (Height)
