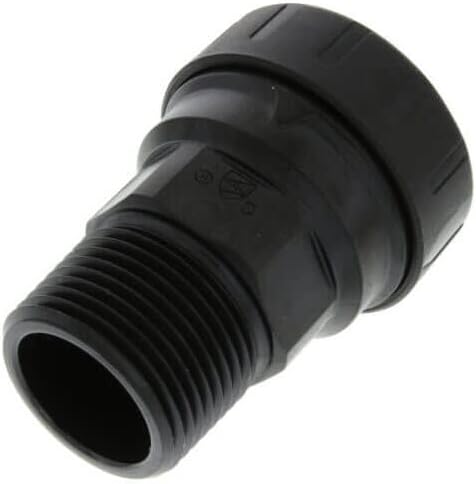

John Guest PSEI012826E PEX Male Connector 3/4 CTS x 3/4 NPT Replacement PSEI012826EPX2

Product Description

The John Guest PSEI012826E PEX Male Connector joins Copper, PEX, or CPVC pipe to a female threaded connection without the need for solder, glue, or tools. This connector features a collet with stainless steel teeth for a secure grip on the pipe, and an EPDM O-Ring to ensure a permanent, leak-proof seal. Once installed, a twist of the locking cap secures the pipe and produces an audible click, confirming it is locked in place. For disconnection, simply twist the cap counterclockwise to unlock and press on the collet to remove the pipe.

• For use with Copper, PEX, and CPVC
• Suitable for hot and cold potable water and hydronic heating
• Code approved for behind-the-wall installations

Product Highlights

Designed for professional plumbers, the ProLock fittings offer easy installation and reliable performance.

Product Information

Standard Information

• Brand: John Guest
• Connection Type: CTS x NPT

Technical Specifications

• Size: 3/4 CTS x 3/4 NPT
• Weight: 0.065 lbs
• Material: Engineered Plastic
• Max Temp/Pressure: 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F
• Warranty: 25 Years
• Lead-free: Yes
• Standards Met: B.S.I. to BS EN ISO9001, NSF-14, NSF-61, ASTM F 877, CSA 137.5, ASSE 1061
