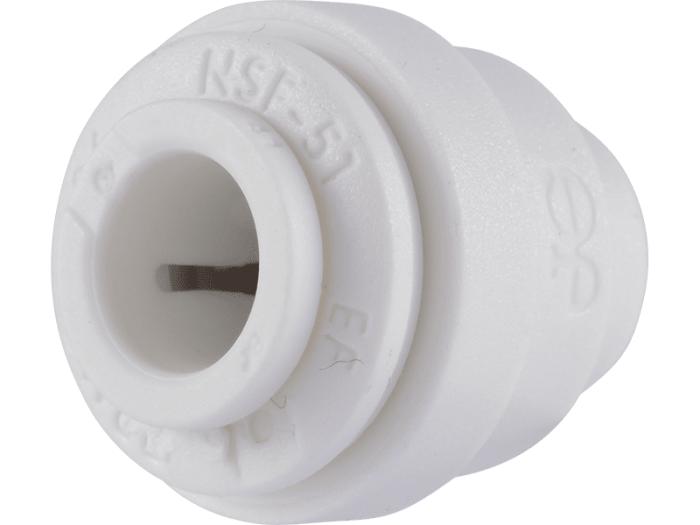

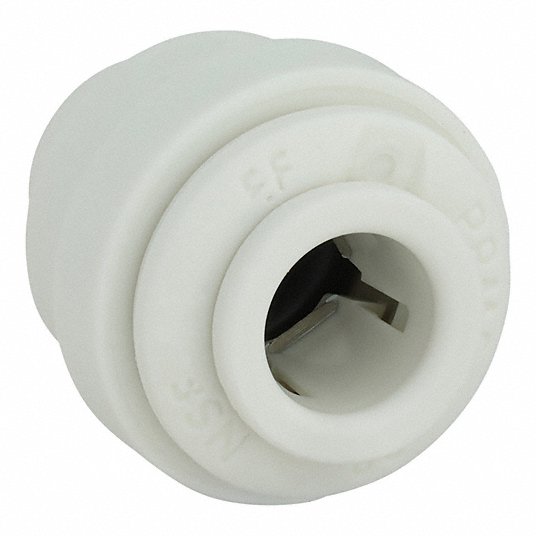

John Guest PP4608W End Cap 1/4 inches OD

Product Description

The JOHN GUEST PP4608W end cap is designed for capping OD sized tubing. John Guest PP4608W fittings are manufactured from white polypropylene and equipped with EPDM O-rings utilizing John Guest's push-fit technology to make easy, reliable, leak-free connections. Developed to satisfy compatibility needs for a wide range of applications.

• Application Potable Water
• Chemical-Resistant
• Compatible Tube Material Copper, CPVC, PEX

Product Highlights

The JG Push-fit technology makes connecting tubing quick and easy. Fittings are manufactured in white polypropylene with food grade EPDM O-ring. Can be used on plastic or soft copper tubing.

Product Information

Standard Information

• Brand: JOHN GUEST
• Manufacturer Part Number: PP4608W
• Country of Origin: United Kingdom

Technical Specifications

• Tube Size: 1/4 in
• Compliance: FDA Approved
• Temp. Range: 33 Degrees to 140 Degrees F
• Max. Pressure: 150 psi
• Connection Type: Tube
• Gasket Material: EPDM
• Fitting Material: Polypropylene
• Special Features: Chemical Resistant
• End Connection Type: Barbed
• Resistance Properties: Chemical-Resistant
• Compatible Tube Material: Copper, CPVC, PEX
• Maximum Operating Pressure: 145 psi
• Maximum Operating Temperature: 149 Degrees F
• Minimum Operating Temperature: 68 Degrees F
• Fitting Tube Size Outer Diameter: 1/4 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin: United Kingdom
• Tube OD: 1/4 in.
• Approvals & Listings: FDA approved materials, NSF51, NSF61
• Contains: 10 units
• Material: Polypropylene
• Durability: Made from polypropylene for durability
• Corrosion Resistance: Designed to resist corrosion and chemicals
• Pipe Size: 1/4"
• Connection: Push-To-Connect
