Product Description

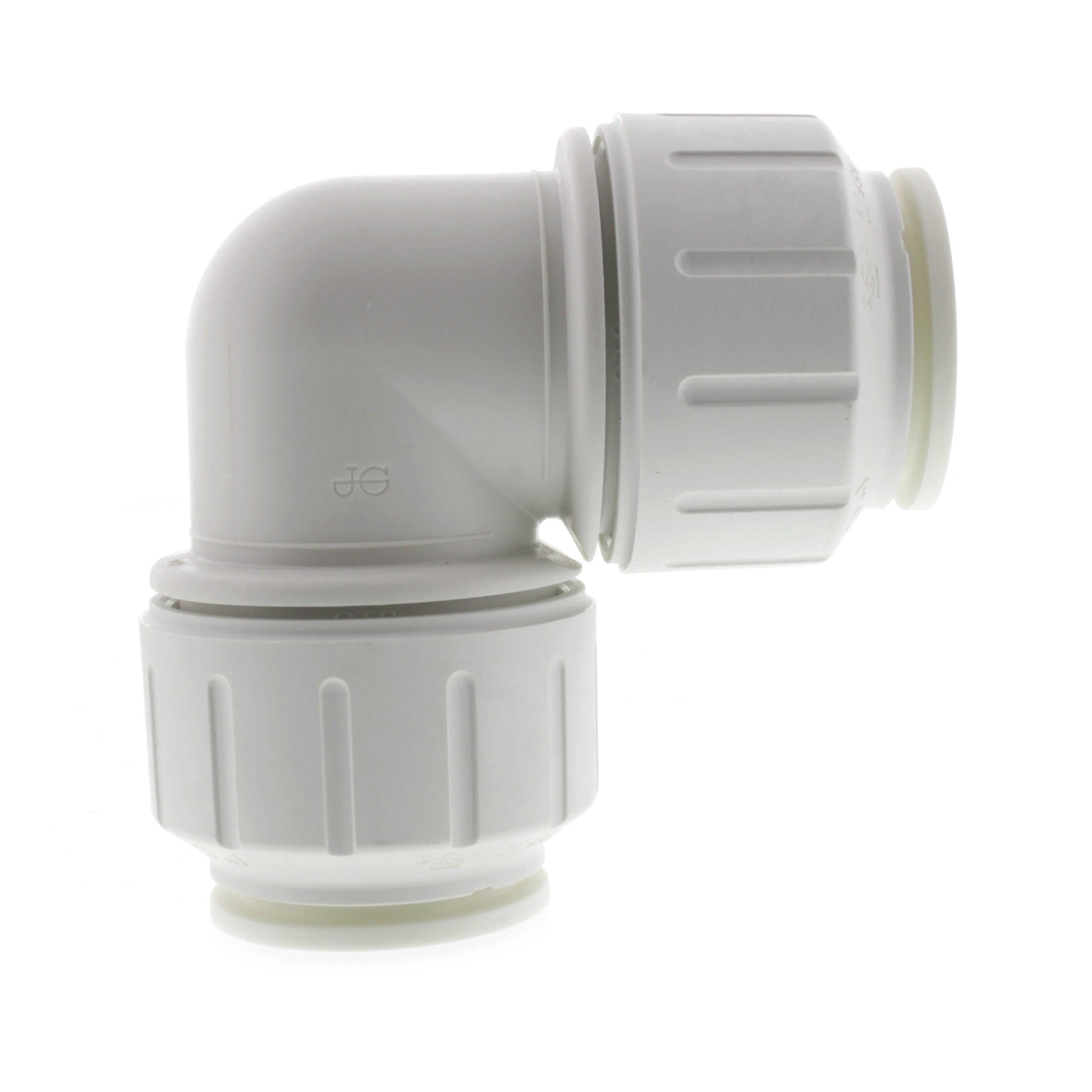

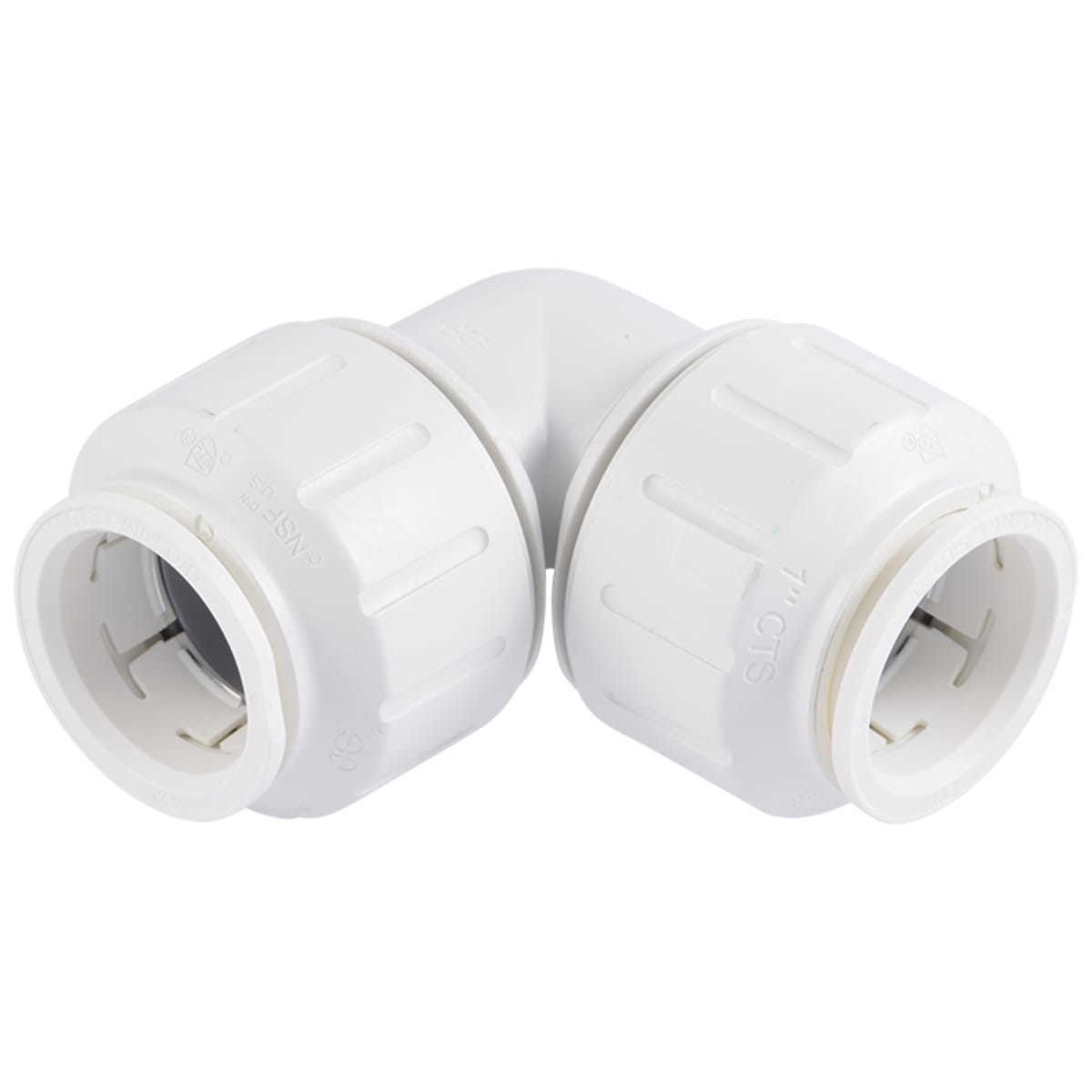

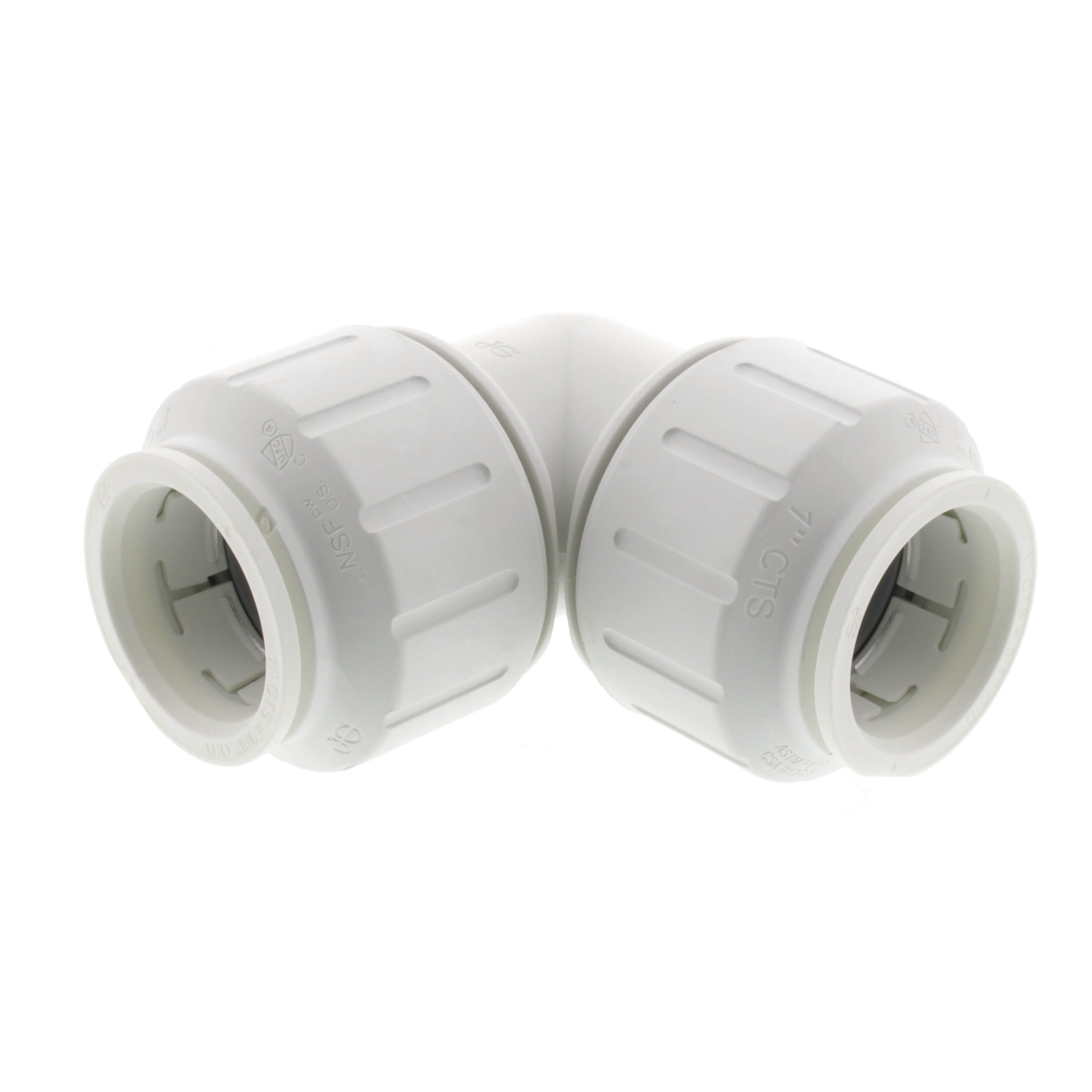

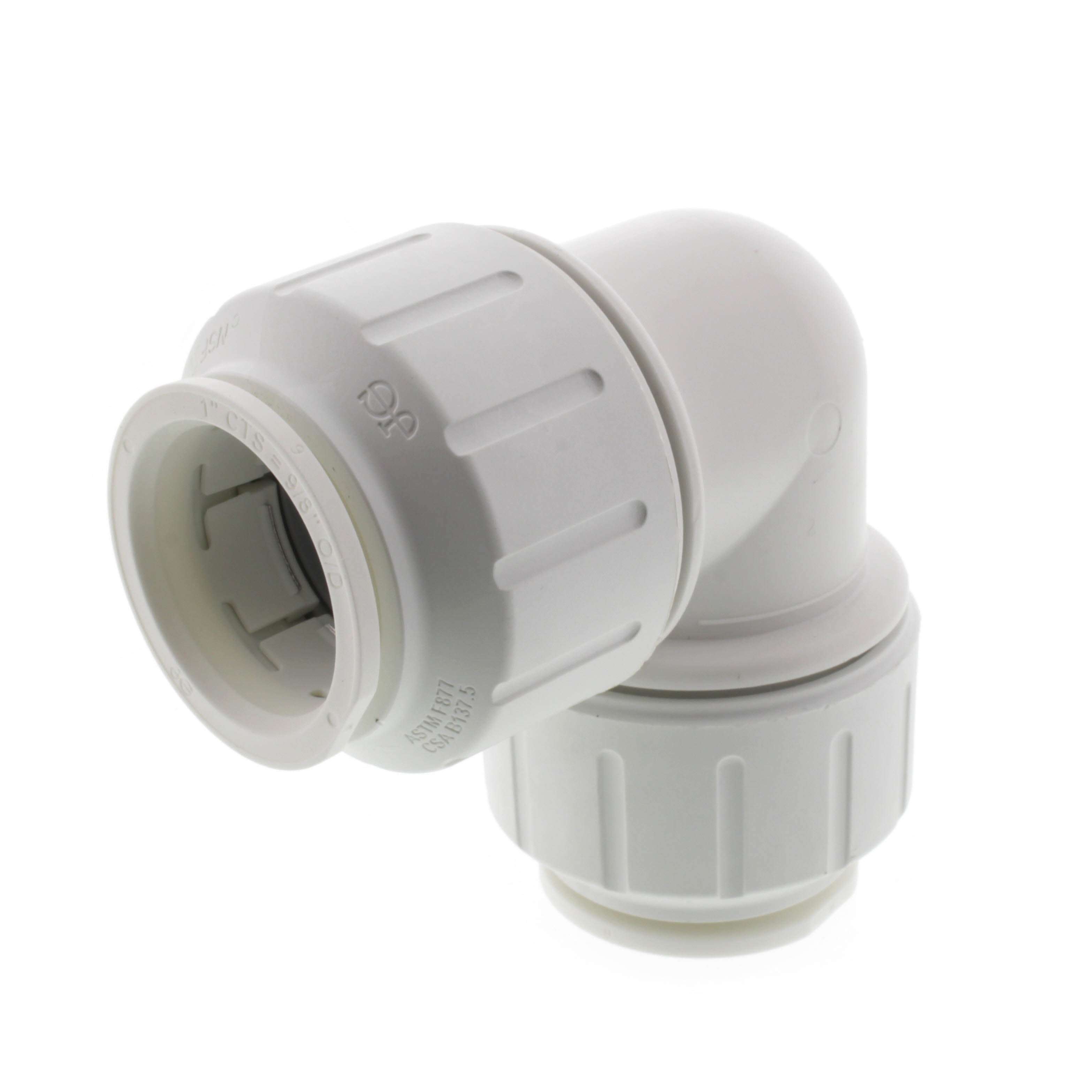

The John Guest PEI0336 Speedfit 90 deg Union Elbow is a plastic fitting with a 1 in nominal size and push-fit x CTS end style. Suitable for hot and cold water and hydronic heating applications, it is designed for use in mains fed/indirect cold water systems, vented/unvented hot water systems, and vented/sealed central heating systems.
- Can be used with PEX, Copper and CPVC Pipes conforming to ASTM Standards
- Fittings are manufactured from high quality engineered plastic with EPDM O-rings
- Speedfit push-in system is suitable for hot and cold water plumbing applications
Product Highlights
This 90-degree elbow fitting provides a corrosion-free, non-toxic connection, and is demountable without damage. It is cUPC Listed, ICC ESR 1931, and NSF 61 certified.
Product Information
Standard Information
-
Brand: John Guest
-
Manufacturer Part Number: PEI0336
-
Country of Origin: US
Technical Specifications
-
Application: Hot/Cold Water and Hydronic Heating, Mains Fed/Indirect Cold Water System, Vented/Unvented Hot Water System and Vented/Sealed Central Heating System
-
Color: White
-
Country of Origin: US
-
Domestic/Import: Domestic
-
End Style: Push-Fit x CTS
-
Fitting/Connector Type: 90 deg Elbow
-
Material: Plastic
-
Mfg Standards/Approvals: cUPC Listed|ICC ESR 1931|NSF 61
-
Nominal Size: 1 in
-
Pressure Rating: 160 psi
-
Temperature Rating: 200 deg F
-
Standards Met: B.S.I. to BS EN ISO9001, NSF-14, NSF-61, ASTM F 877, CSA 137.5, ASSE 1061
-
Max Temp/Pressure: 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F (Water Application)
-
For Tube OD: 1 in x 1 in
-
Fitting Shape: Elbow
-
Max. Pressure: 160 psi
-
Connection Type: Push-to-Connect x Push-to-Connect
-
End Connection Type: Push-to-Connect
-
Fitting Body Material: Plastic
-
Pipe Fitting Material: PEX
-
Tube Fitting Material: PEX
-
Specific Fitting Shape: 90 Degree Elbow Union
-
Fitting Connection Type: Tube
-
Basic Pipe Fitting Shape: Elbow
-
Compatible Tube Material: Copper, CPVC, PEX
-
For Tube Outside Diameter: 1 in
-
Maximum Operating Pressure: 160 psi
-
Basic Pipe Fitting Material: Plastic
-
Compatible Copper Tube Size: 1 in
-
Specific Pipe Fitting Shape: 90 Degrees Elbow Union
-
Pipe Fitting Connection Type: Tube
-
Maximum Operating Temperature: 200 Degrees F
-
Fitting Side A Connection Type: Push-to-Connect
-
Fitting Side B Connection Type: Push-to-Connect
-
Fitting Side A Tube Outer Diameter: 1 in
-
Fitting Side B Tube Outer Diameter: 1 in
-
Includes Pre-Applied Thread Sealant: No
