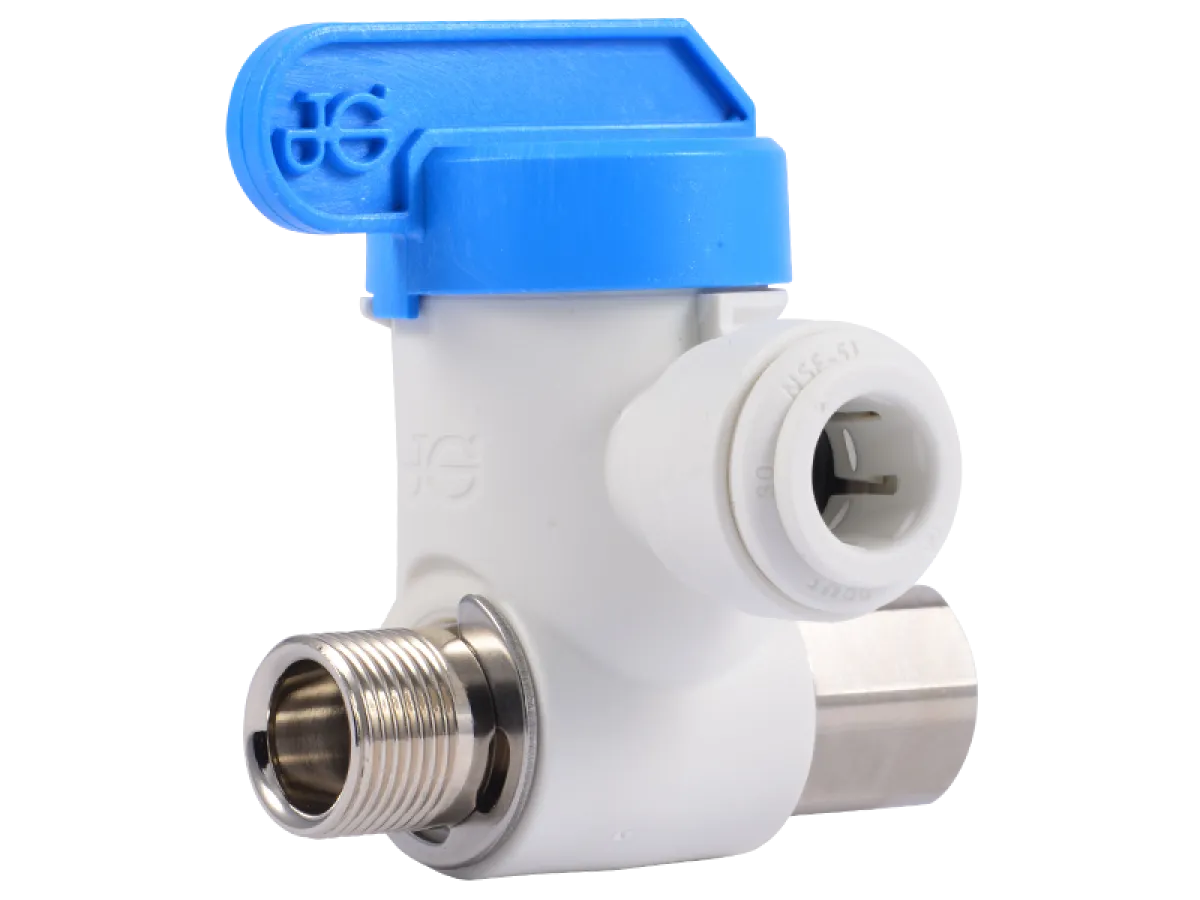

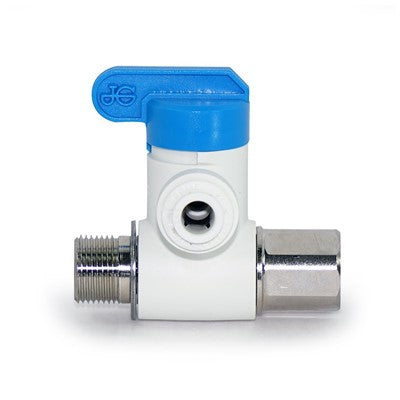

John Guest ASVPP2LF-US Angle stop adapter valve (3/8 in.)

Product Description

The John Guest ASVPP2LF-US is an angle stop adapter valve that provides a water feed from an existing chrome supply stop to filtration systems, reverse osmosis units, coffee machines, and ice makers. It uses John Guest push-fit technology for quick installation and features a white polypropylene body with food-grade EPDM seals and plated lead-free brass threads. The valve is a quarter-turn shut-off suitable for 3/8 in. OD tubing and a 3/8 in. compression stop; for cold water only and is NSF51/NSF61 listed.

• Connects between chrome supply stop and riser to supply water for RO, filtration, coffee machines, and ice makers
• White polypropylene body with food-grade EPDM seals and plated lead-free brass threads; John Guest push-fit tube connection
• Quarter-turn shut-off; fits 3/8 in. tube OD and 3/8 in. male/female compression threads; max working pressure 150 psi at 70�F and 60 psi at 140�F

Product Highlights

Push-fit angle stop adapter for 3/8 in. tubing with quarter-turn shut-off; NSF51/NSF61 listed; cold water only.

Product Information

Standard Information

• Brand: JOHN GUEST
• Manufacturer Part Number: ASVPP2LF-US

Technical Specifications

• Brand: John Guest
• Manufacturer Part Number: ASVPP2LF-US
• Connection: 3/8 in. male compression x 3/8 in. female compression x 3/8 in. tube (push-fit)
• Tube Outer Diameter: 3/8 in.
• Thread (male): 3/8 in. male compression
• Thread (female): 3/8 in. female compression
• Body Material: White polypropylene
• Seal Material: Food-grade EPDM
• Thread Material: Plated lead-free brass
• Operation: Quarter turn to open or close
• Max Working Pressure (70�F): 150 psi
• Max Working Pressure (140�F): 60 psi
• Approvals / Listings: NSF51, NSF61
• Suitable Media: Cold water supply only
• Not Suitable For: Compressed air applications
• Fitting Type: Angle stop adapter
• Item Weight: 0.17 lbs
