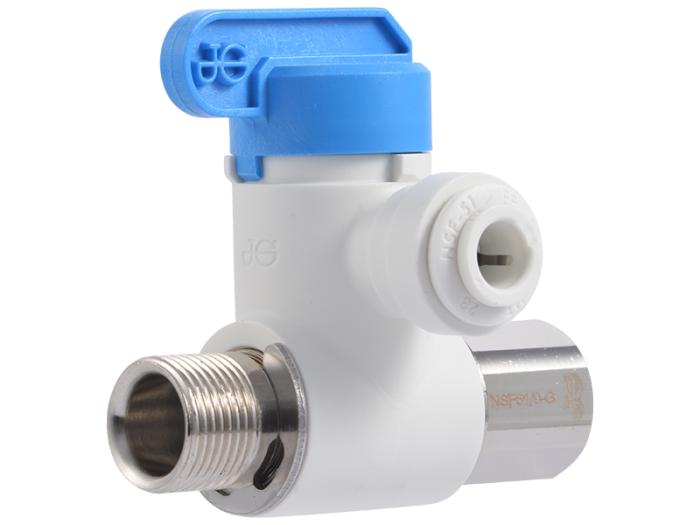

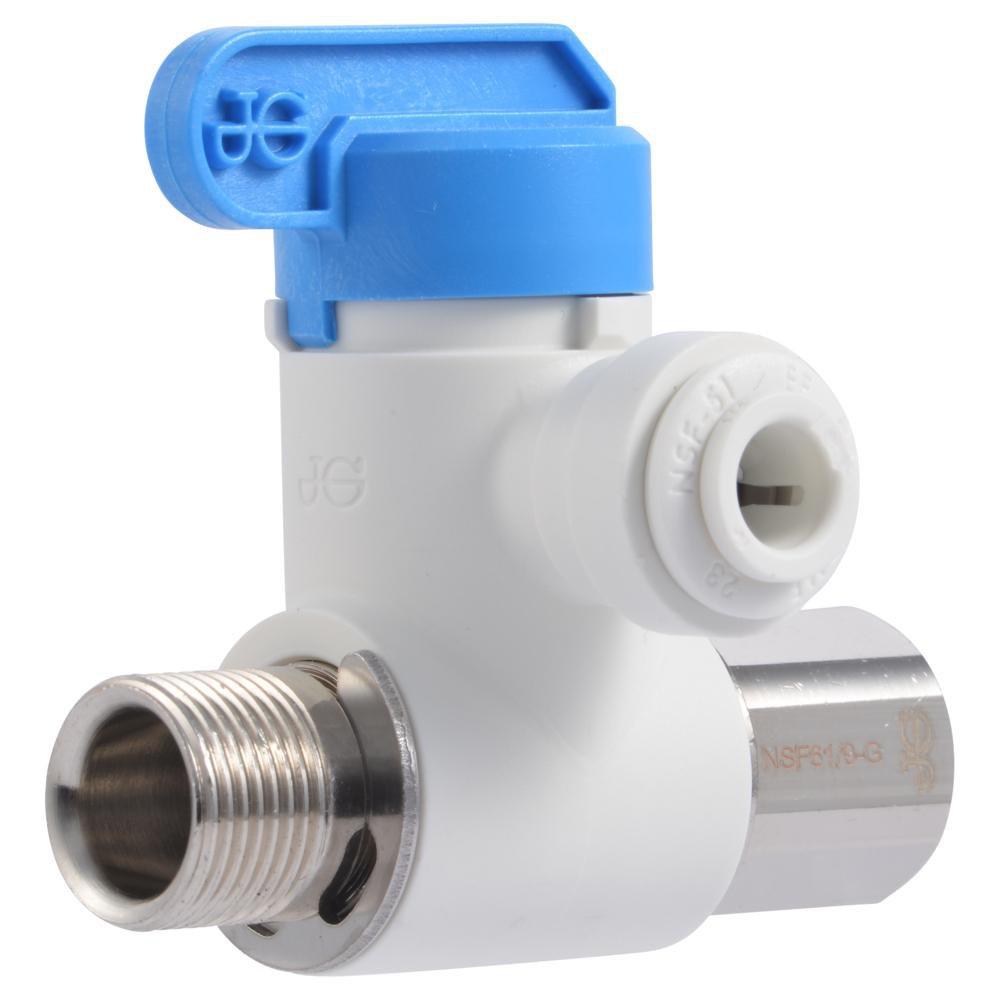

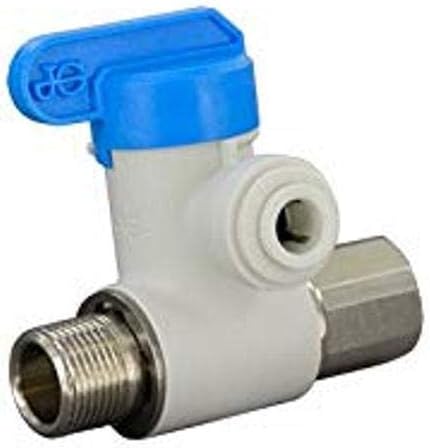

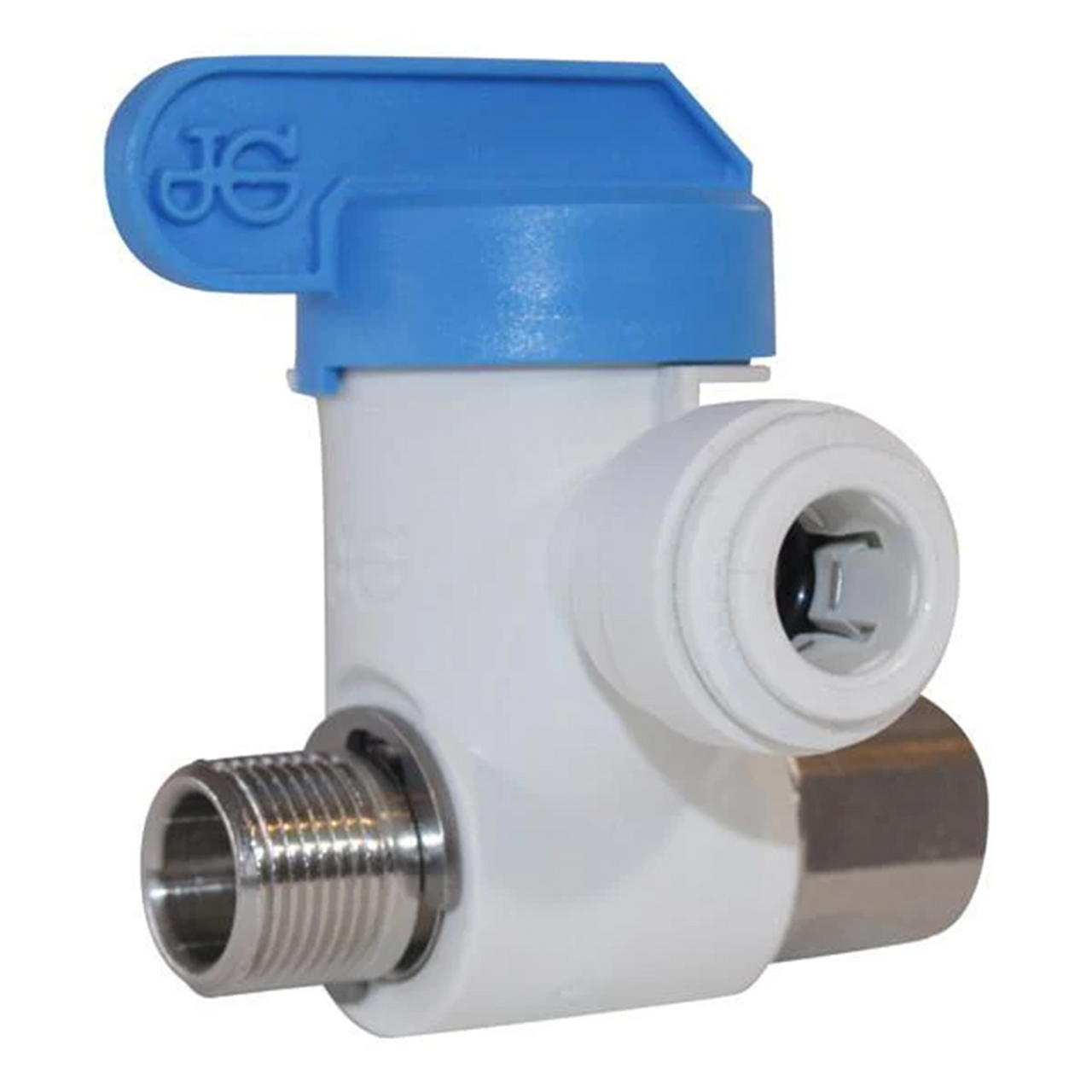

John Guest ASVPP1LF-US Angle Stop Adapter Valve 1/4 inches x 3/8 inches x 3/8 inches

Product Description

The John Guest ASVPP1LF-US angle stop adapter valve offers an easy way to add a water feed supply from an existing chrome supply stop valve. This valve connects between the chrome supply stop and riser to provide a water supply feed line for water filtration, RO systems, coffee machines, and ice makers. John Guest push-fit technology makes installation quick and easy.

• For use with plastic or copper OD sized tubing
• Threads onto 3/8 in. compression chrome supply stop
• Quarter turn to open or close

Product Highlights

This adapter valve features a white polypropylene body with EPDM seals and lead-free materials. It is NSF61 listed and allows for quick and easy connection/disconnection.

Product Information

Standard Information

• Brand: John Guest
• Manufacturer Part Number: ASVPP1LF-US

Technical Specifications

• SKU: ASVPP1LF-US
• Tube OD: 1/4 in.
• Thread: 3/8 in. Female Compression
• Common Applications: For cold water supply use only
• Approvals & Listings: NSF61
• Material: Polypropylene
• Number of Ports: 3
• Specification Met: NSF
• Manufacturer: John Guest
• UPC: 665626120626
• Part Number: ASVPP1LF
• Item model number: ASVPP1LF
• Size: 1/4" x 3/8" x 3/8"
• Item Package Quantity: 1
• Batteries Required?: No
• Connection Size: 3/8 x 3/8 x 1/4 in
• Connection Type: Male Compression x Female Compression x Tube
• Pressure Rating: 150 psi
• Temperature Rating: 70 deg F
• Media: Potable Water
• Softgoods Material: EPDM Rubber
• Body Material: Polypropylene
• Suitable for: Reverse Osmosis, Filtration Systems, Automatic Coffee Brewers, Ice Makers and Many More
• Operation: 1/4 turn from open to closed
• Color Finish Category: Whites
• Color Finish Name: White
• End Connection 1: Male
• End Connection 2: Female
• End Connection 3: Push-to-Connect
• End Connections: Male x Female
• Material Type: Polypropylene
• Pressure - Maximum: 150 psi
