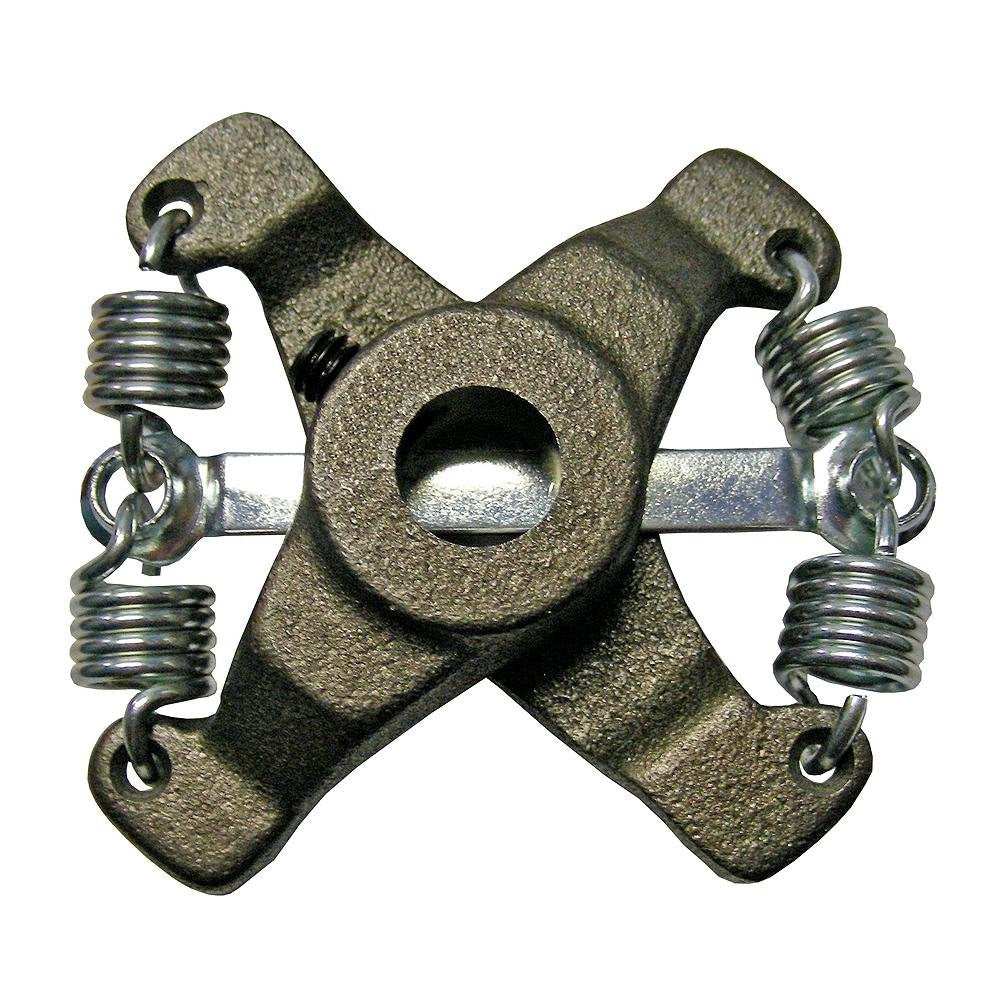

Jmp Equipment Company 118723 Bg Coupler 1/4-1/3 Hp

Product Description

The JMP EQUIPMENT COMPANY 118723 is a BG-style motor coupler rated for use with fractional horsepower motors in the 1/4 to 1/3 HP range. Couplers of this type serve as the flexible drive connection between a motor shaft and a blower wheel or pump impeller, absorbing minor misalignment and reducing vibration transfer during operation. This part is typically installed by HVAC technicians and equipment service professionals during motor replacements or blower assembly rebuilds.

This coupler is suited for residential and light commercial HVAC applications where BG-frame motors are used to drive blower assemblies. It is commonly encountered during evaporator blower motor replacements in split-system air handlers and package units. Proper coupler selection depends on matching the motor HP rating and shaft size to the application requirements.

Key Features

• Rated for fractional horsepower motors in the 1/4 to 1/3 HP range
• BG-style coupler design for use with BG-frame motor and blower assemblies
• Provides flexible drive connection to absorb vibration and minor shaft misalignment
• Direct replacement form factor for standard BG coupler applications

Compatibility

Designed as an OEM-style replacement coupler for BG-frame blower motor assemblies rated between 1/4 and 1/3 HP in residential and light commercial HVAC equipment.

Installation Notes

Installation should be performed by a qualified HVAC technician. Always disconnect and lock out electrical power to the unit before removing or installing a motor coupler. Inspect the motor shaft and blower hub for wear or damage before installing the new coupler. Ensure the coupler is fully seated on both the motor shaft and blower hub before restoring power.

Technical Specifications

• Motor HP Range: 1/4 to 1/3 HP
• Coupler Style: BG

Standard Information

• Brand: JMP EQUIPMENT COMPANY
• Manufacturer Part Number: 118723
