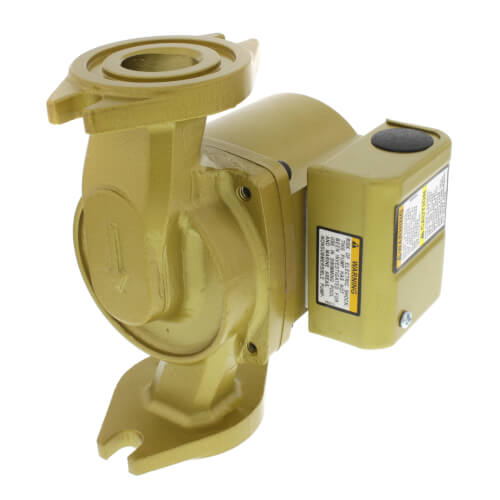

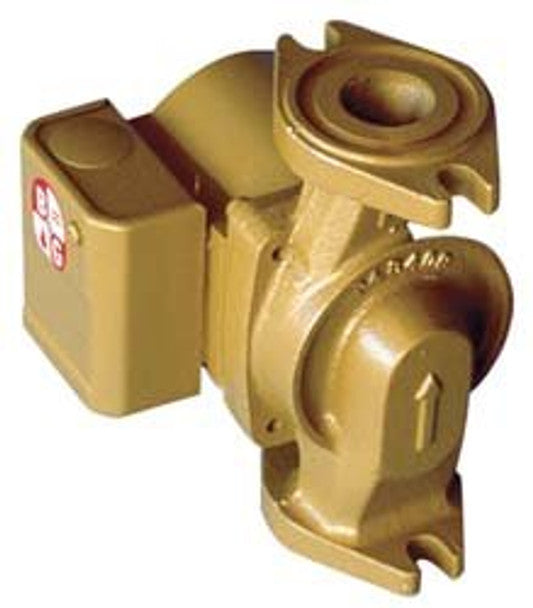

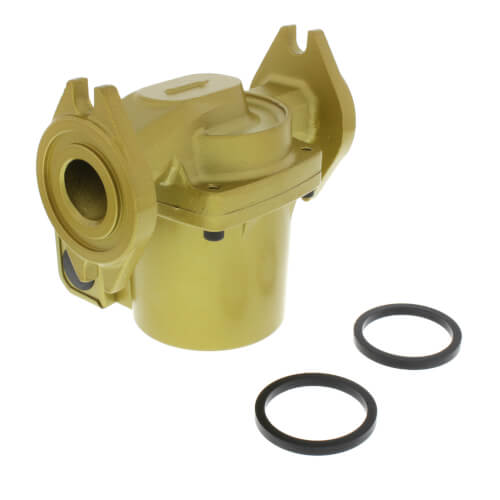

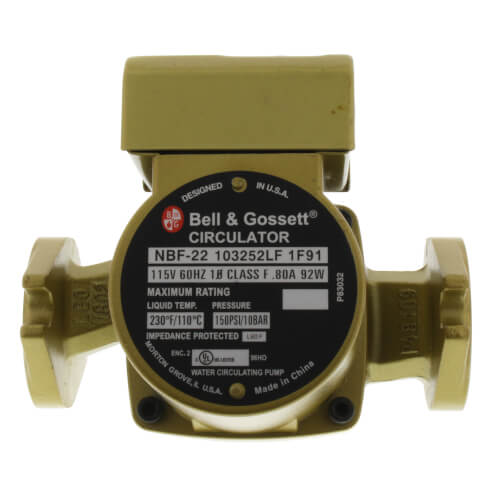

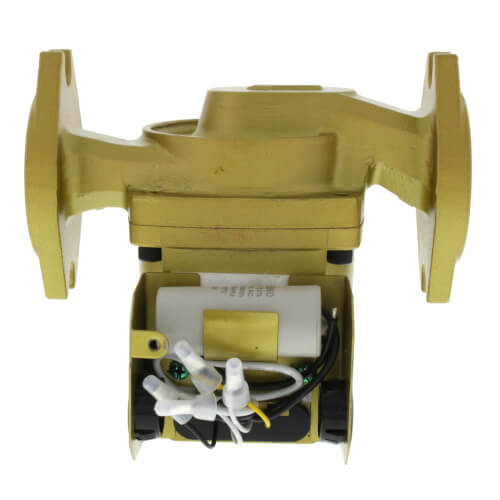

Jmp Equipment Company 103252LF NBF-22 Bronze Circulator Pump 1/25 HP

Product Description

The JMP EQUIPMENT COMPANY 103252LF Bell & Gossett NBF-22 Bronze Circulator Pump is a small wet-rotor bronze circulator for hydronic and potable-rated applications where lead-free materials are required. It is designed for hydronic and light-duty hot water recirculation where NBF-22 performance is specified. The pump is suitable where a bronze, lead-free circulator is called out on the submittal.

• 115V
• 1/25 HP
• Flanged x Flanged Connection

Product Highlights

This Bell & Gossett OEM pump is ideal for potable and domestic water applications requiring a bronze, lead-free circulator.

Product Information

Standard Information

• Brand: JMP EQUIPMENT COMPANY
• Manufacturer Part Number: 103252LF

Technical Specifications

• Material: Bronze
• Amperage: 0.8
• Application: Heating
• Voltage: 115V
• Max Pressure (PSI): 150
• Type: Pump
• Horse Power: 1/25
• Connection Size: 3/4"
• Max Flow (GPM): 22
• Flow Range (GPM): 0-22
• Head Range (ft.): 0-15
• Max Head (Ft): 15
• Hertz: 60
• Phase: 1
• Max Temp (F): 230°F
• RPM: 2940
• Connection Type: Flanged x Flanged
