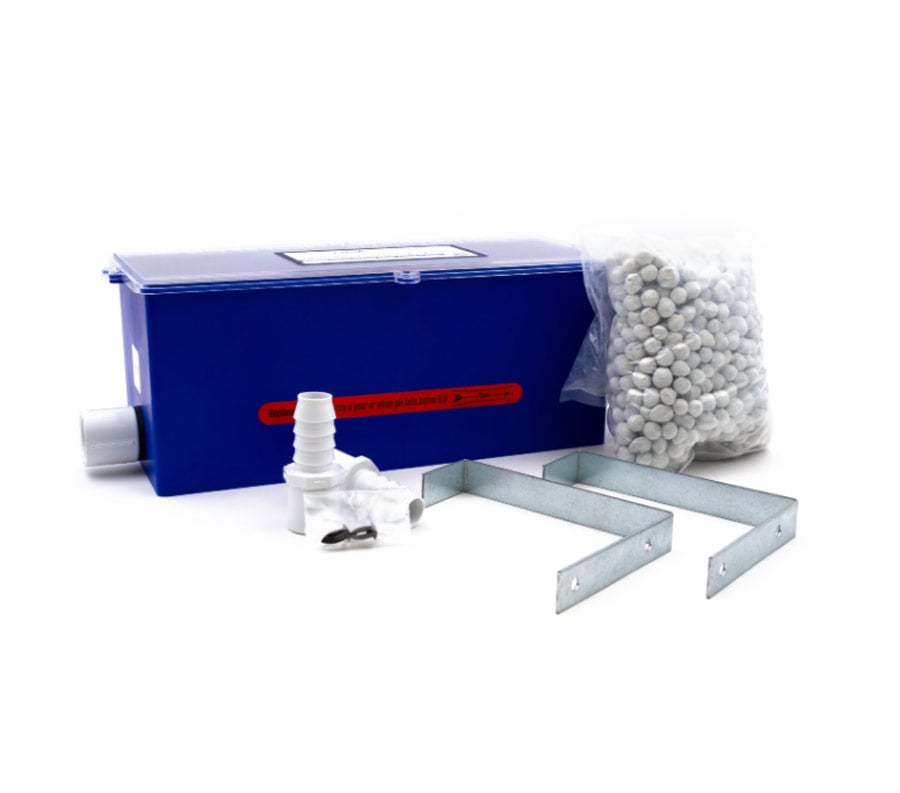

JJM BOILER NBT-23 JJM Boiler NBT-23 Tank Neutralizer

Product Description

The JJM Boiler NBT-23 is a tank neutralizer specifically crafted for residential applications. This unit effectively raises the pH level of acidic liquid produced by condensing furnaces and hot water heaters. It is compatible with direct fired unit heaters, infrared unit heaters, and boilers. The construction features a polypropylene tank with internal polypropylene horizontal baffle plates for enhanced stability and efficiency. It includes a clear polycarbonate access cover for easy inspection.

• Capable of handling a maximum of 300 MBH.
• Delivers a maximum flow rate of 2.4 GPH.
• Equipped with 0.75 inch PVC socket inlet and outlet ports.

Product Highlights

This tank neutralizer is ideal for those looking to manage acidic waste effectively in residential settings.

Product Information

Standard Information

• Brand: JJM BOILER
• MPN: NBT-23

Technical Specifications

• Application: Furnace condensate neutralizer
• MBH Rating: 300 MBH
• Flow Rate: 2.4 GPH
• Inlet/Outlet Port: 0.75 inch
• Tank Material: Polypropylene
• Neutralizing Media: Ph Power Pellets (magnesium hydroxide)
• Access Cover: Polycarbonate clear see-through access cover
• Cover Fasteners: Two lockdown cover bolts and nuts
• Internal Components: Polypropylene horizontal baffle plates
• Port Gaskets: EPDM port gaskets
• Mounting: Horizontal, wall or floor
