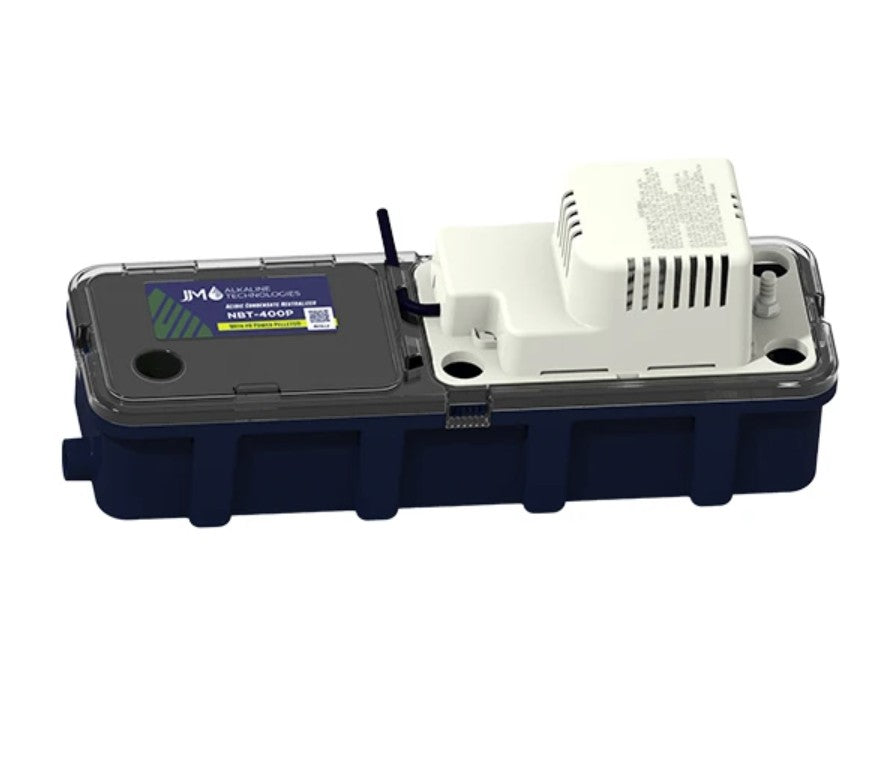

Jjm Alkaline nbt-400p Condensate Neutralizer 400 Mbh

Product Description

The JJM ALKALINE nbt-400p is a condensate neutralizer with a built-in condensate pump, designed for high-efficiency, gas-fired appliances rated up to 400 MBH. Condensing boilers, furnaces, and condensing water heaters produce acidic condensate that must be neutralized before draining to comply with local plumbing codes. The nbt-400p treats that condensate by raising its pH to an acceptable level, then pumps it to the drain. This unit is suited for most residential installations where gravity drainage is not available or practical. A licensed plumber or HVAC technician typically handles installation.

The nbt-400p is intended for residential installations of high-efficiency, gas-fired condensing equipment. Applicable appliances include condensing boilers, condensing furnaces, and condensing water heaters rated at approximately 400 MBH or below. The built-in pump makes it a practical solution in mechanical rooms or utility areas where the condensate drain line must be elevated or routed horizontally over a distance before reaching a floor drain or utility sink.

Key Features

• Integrated condensate pump eliminates the need for a separate pump unit
• Rated for condensing appliances up to 400 MBH total input
• Neutralizes acidic condensate to meet drain discharge requirements
• Suited for residential high-efficiency gas appliance installations
• Compatible with condensing boilers, furnaces, and water heaters

Compatibility

Designed for use with residential high-efficiency, gas-fired condensing appliances including condensing boilers, condensing furnaces, and condensing hot water heaters rated up to approximately 400 MBH.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with local plumbing codes and the appliance manufacturer instructions. Shut down and isolate all connected appliances before making condensate line connections. Ensure the neutralizer media is properly seated and the pump discharge line is secured before restoring power and operation. Confirm local drain discharge pH requirements prior to installation.

Technical Specifications

• Maximum Capacity: 400 MBH
• Application: Residential condensing gas appliances
• Built-In Pump: Yes

Standard Information

• Brand: JJM ALKALINE
• Manufacturer Part Number: nbt-400p
