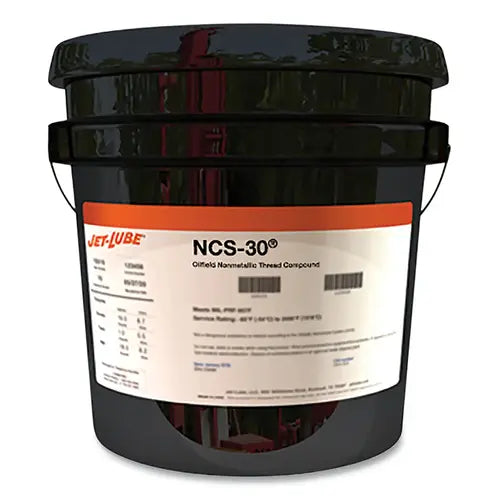

Jet-Lube 23723 NCS-30 ECF Nonmetallic Thread Compound Environmental Formula 10 lb Pail

Product Description

Jet-Lube 23723 (NCS-30 ECF) is a nonmetallic thread compound formulated as an environmental formula for thread lubrication and anti-seize applications. The gel contains chemically inert fibers and extreme-pressure and anti-wear additives blended into a biodegradable base grease, providing adhesion to wet steel, resistance to water wash-off, and service over a wide temperature range for drilling and tubing connections.

• Biodegradable nonmetallic compound with chemically inert fibers and extreme-pressure/anti-wear additives
• Service temperature range: -10°F to 500°F (-23°C to 260°C); gel physical form that adheres to wet joints
• Supplied in a 10 lb (4.54 kg) pail; non-conductive suitable for MWD and applicable to wedge thread and rotary-shouldered connections

Product Highlights

Nonmetallic, biodegradable thread compound in a 10 lb pail; gel form with EP additives; temperature range -10°F to 500°F; non-conductive for MWD applications.

Product Information

Standard Information

• Brand: JET-LUBE
• Manufacturer Part Number: 23723
• Country of Origin: US

Technical Specifications

• Brand: Jet-Lube
• Manufacturer Part Number: 23723
• Part Number (alternate): 23723-27396
• Product Name: NCS-30 ECF Nonmetallic Thread Compound Environmental Formula
• Package Size: 10 lb (4.54 kg) pail
• Packaging: Pail
• Physical Form: Gel
• Base Materials: Complex thickeners; synthetic and vegetable oils
• Additives: Chemically inert fibers; extreme-pressure and anti-wear additives
• Temperature Range: -10°F to 500°F (-23°C to 260°C)
• Biodegradable: Yes (biodegradable, non-bioaccumulative, non-toxic)
• Contains Metals: No
• Odor: Petroleum
• Intended Use: Thread lubrication and anti-seize for drill string and tubing connections, wedge thread and rotary-shouldered connections; non-conductive for MWD applications
• Friction / Nut-Factor: Relative to API RP 7G: 1.0 (Normal), 1.1 (Severe) for drill strings
• Certifications / Environmental Rating: Eco-Certified; HOCNF Yellow rating (Norwegian sector); UK classification: E (CEFAS OCNS Group E)
• Storage Conditions: Room Temp
• UPC: 965424712300
