Jet JT9-714650 15 Inch Woodworking Bandsaw 3 Hp 230V

Product Description

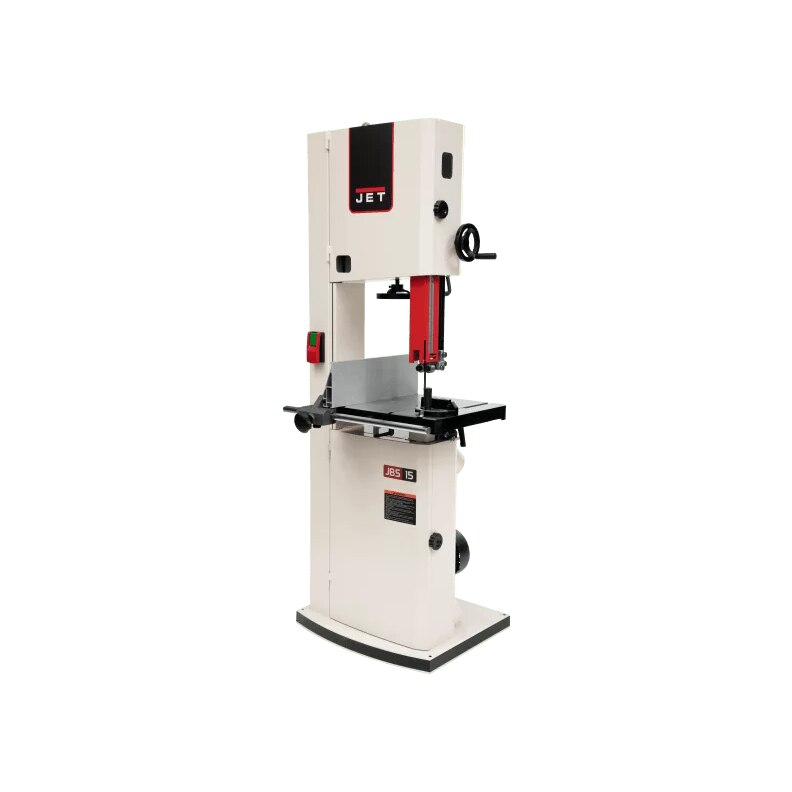

The JET JT9-714650 is a 15-inch woodworking bandsaw rated at 3 HP and designed for single-phase 230-volt service. Built around a rigid steel frame with a cast-iron table and trunnion, it is engineered for demanding re-saw work, curve cutting, and finish-quality ripping in professional and high-volume shop environments. The table tilts 5 degrees left and 45 degrees right to support a wide range of angled cuts. A rack-and-pinion adjustable four-sided guide post keeps the blade supported across the full cutting height. Licensed woodworkers, millwork shops, and serious cabinet shops are the primary installers and operators of this machine.

The JT9-714650 suits residential cabinet shops, commercial millwork operations, and trade school environments where consistent re-saw capacity and throat depth are required. The cast-iron fence system includes a micro-adjust dial for repeatable positioning, making it well suited to production runs where dimensional accuracy matters. The slotted table accepts standard miter gauges. Dual 4-inch dust collection ports are independently located to capture chips and dust at the source, keeping the work area clean during extended operation.

Key Features

• Cast-iron trunnion and table for maximum stability and vibration damping
• Heavy-duty tensioning system with quick release and three settings: full tension, partial tension, and full release
• Rigid four-sided guide post with rack-and-pinion adjustment for consistent blade support
• Large, tool-less independently adjustable blade guides reduce setup time
• Blade tracking window provides clear sight line to the blade during tracking adjustments
• Dual 4-inch dust collection ports positioned to capture debris at the source
• Round table insert with leveling screws for precise surface alignment

Compatibility

Designed as an OEM unit matching the JWBS-15-3 model specification for single-phase 230-volt shop installations requiring a 15-inch class bandsaw.

Installation Notes

Installation should be performed by a qualified electrician in compliance with NEC requirements for single-phase 230-volt motor circuits, including proper overcurrent protection and grounding. The machine must be anchored to a solid floor surface before operation to prevent movement under load. Disconnect and lock out power before performing any blade changes, guide adjustments, or tensioning work. Confirm blade tension and tracking before resuming cuts after any blade service.

Technical Specifications

• Motor: 3 HP
• Voltage: 230 volts
• Phase: Single phase
• Throat Depth: 15 inches
• Table Tilt: 5 degrees left, 45 degrees right
• Dust Collection Port Diameter: 4 inches (dual ports)
• Weight: 400 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: JT9-714650
