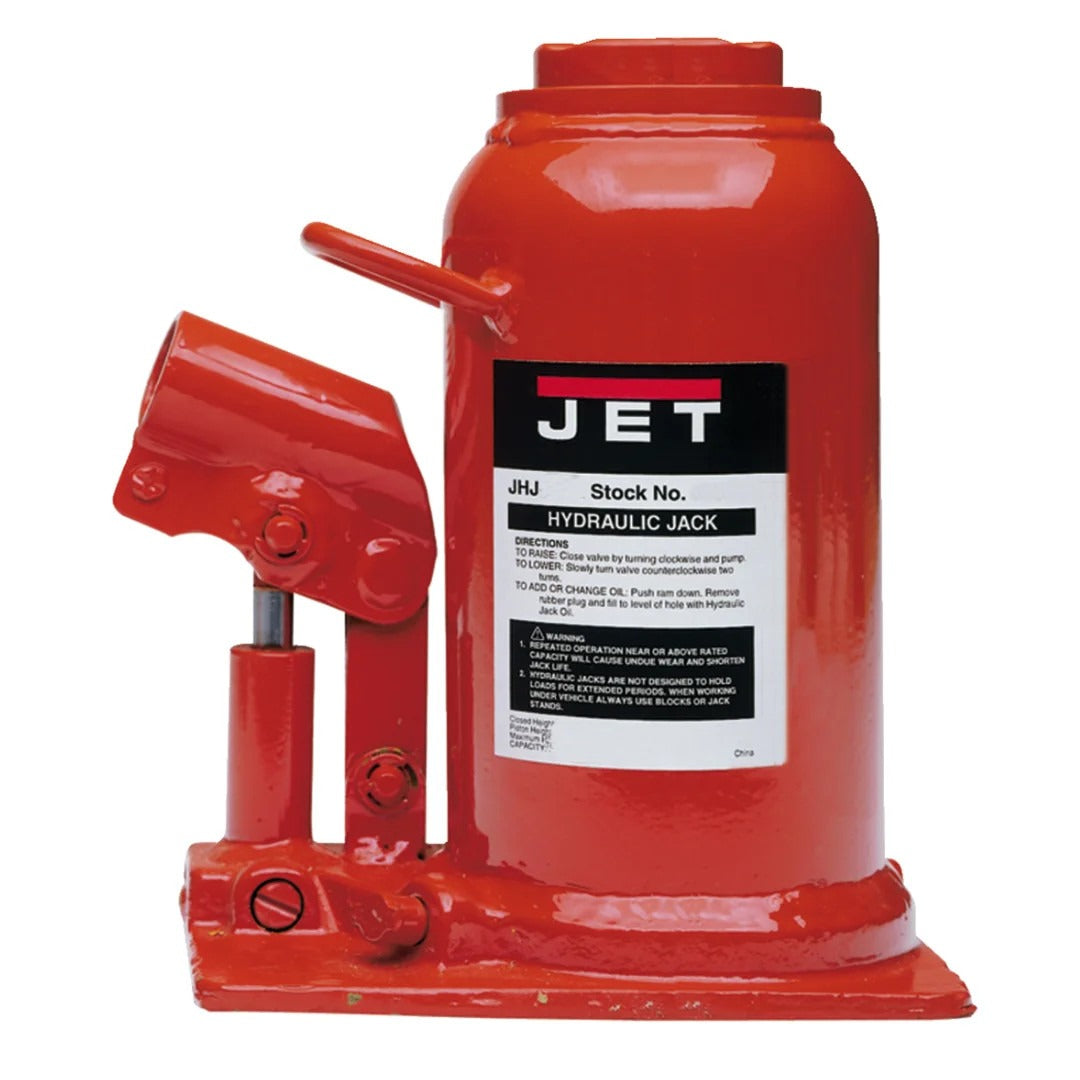

Jet jt9-453313 Hydraulic Bottle Jack 12.5 Ton

Product Description

The JET jt9-453313 is a 12.5-ton low-profile hydraulic bottle jack designed for lifting, pushing, spreading, and straightening in tight-clearance applications. The chrome-plated pump piston and ram provide corrosion resistance for extended service life in shop and field environments. With a minimum height of 6.75 inches, this jack fits into confined spaces where standard bottle jacks cannot. It operates in upright, angled, and horizontal positions, making it a versatile tool for automotive, industrial, and heavy equipment service work. Licensed HVAC, mechanical, and general trade technicians will find it suited to equipment rigging and positioning tasks. It complies with ANSI/ASME B30.1 and PALD-1 safety standards.

This jack is intended for professional shop and field use where a compact footprint and multi-position operation are required. Its low minimum height makes it practical for lifting equipment with limited ground clearance. The 3.75-inch piston lift allows controlled, incremental raises in applications such as machinery positioning, vehicle service, structural pushing, and frame straightening. It is appropriate for both light industrial and heavy-duty trade environments where rated-capacity hydraulic jacks are required by procedure or safety code.

Key Features

• 12.5-ton rated load capacity for heavy equipment and vehicle service
• Chrome-plated pump piston and ram resist corrosion in shop and outdoor environments
• Low 6.75-inch minimum height for confined and low-clearance lifting
• Operates in upright, angled, and horizontal positions for lifting, pushing, spreading, and straightening
• Complies with ANSI/ASME B30.1 and PALD-1 standards
• Compact base footprint of 6.5 inches by 4.125 inches for stable placement in tight spaces

Compatibility

Designed as an OEM-style hydraulic bottle jack for professional trade and shop applications requiring a low-profile, multi-position hydraulic lifting tool rated at 12.5 tons.

Installation Notes

Always inspect the jack for hydraulic leaks and verify the release valve is fully closed before applying load. Position the jack on a firm, level surface and ensure the load is centered on the saddle before pumping. Never exceed the rated 12.5-ton load capacity. Service and repair of hydraulic jacks should be performed by qualified personnel following applicable ANSI/ASME B30.1 guidelines.

Technical Specifications

• Load Capacity: 12.5 tons
• Minimum Height: 6.75 inches
• Maximum Height: 13.375 inches
• Piston Lift: 3.75 inches
• Piston Height: 3.75 inches
• Head Diameter: 3 inches
• Base Dimensions: 6.5 x 4.125 inches
• Weight: 15 pounds
• Certifications: ANSI/ASME B30.1, PALD-1

Standard Information

• Brand: JET
• Manufacturer Part Number: jt9-453313
