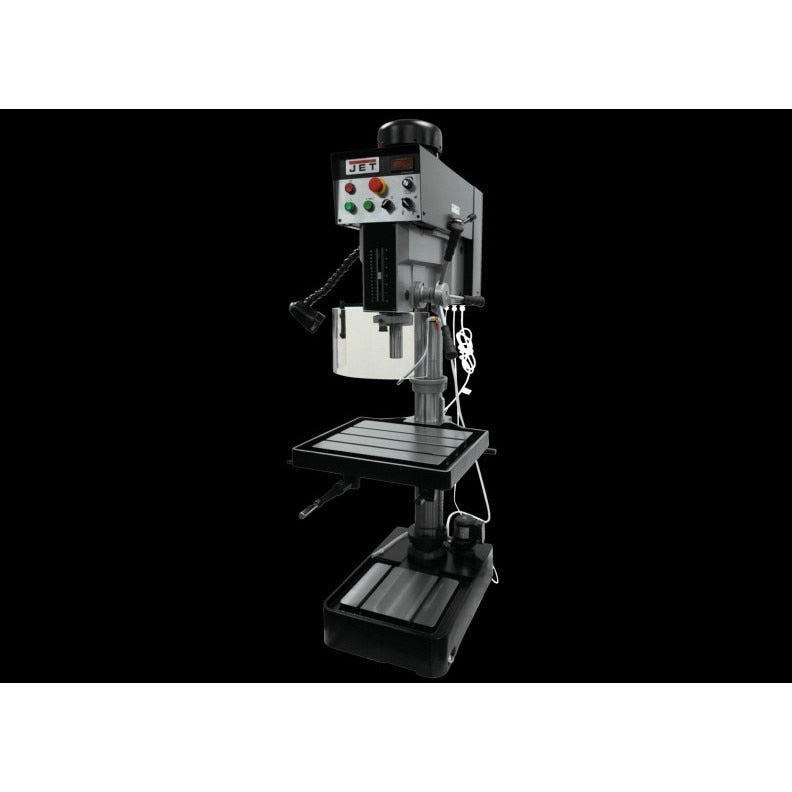

Jet JT9-354226 Variable Speed Drill Press 2 Hp 460V

Product Description

The JET JT9-354226 is a floor-standing electronic variable speed drill press rated at 2 HP and designed for three-phase industrial and commercial shop environments operating at 460 volts. Spindle speed is continuously adjustable from 65 to 2000 RPM using the latest AC inverter variable speed technology, allowing the operator to change speed even while the machine is running. High-torque output is maintained across the full speed range in both forward and reverse directions. A heavy-duty cast head, precision ball bearings, and a rigid steel column work together to hold tolerances under sustained production use. The unit ships as a single piece and weighs 792 pounds.

The JT9-354226 is suited for industrial production shops, machine shops, and heavy-duty fabrication environments that require repeatable, accurate drilling and tapping operations. Forward and reverse tapping capability makes it practical for threading operations without repositioning the workpiece. The large precision-ground T-slot production table supports quick fixturing and setup changes. This machine is intended for installation and operation by qualified trades personnel or trained machine operators in facilities with a compatible 460-volt three-phase power supply.

Key Features

• Continuously variable spindle speed from 65 to 2000 RPM, adjustable during operation
• Forward and reverse tapping capability with high torque maintained at all speeds
• Front-mounted LED spindle RPM readout for real-time speed monitoring
• Front-mounted positive control depth stop for repeatable drilling depth
• Heavy-duty steel column for increased rigidity and precision
• Large precision-ground T-slot production table for efficient workpiece setup
• Emergency stop for rapid shutdown during operation
• CSA/CUS certified; includes integrated coolant system

Compatibility

Designed for use in three-phase industrial facilities with a 460-volt power supply. Intended as a floor-standing production drill press for commercial and industrial machine shop applications.

Installation Notes

Installation should be performed by a qualified electrician and mechanical trades personnel familiar with three-phase industrial machinery. Disconnect and lock out all power before making electrical connections or performing any service. Verify that the facility power supply matches the 460-volt, three-phase requirement before energizing the unit. Anchor the machine to the floor per the manufacturer guidelines and applicable local safety codes before operation.

Technical Specifications

• Power: 2 HP
• Voltage: 460 volts
• Phase: 3 Phase
• Spindle Speed Range: 65 to 2000 RPM
• Height: 79.52 inches
• Width: 27.16 inches
• Length: 38.18 inches
• Weight: 792 pounds
• Certification: CSA/CUS
• Unit of Measure: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: JT9-354226
