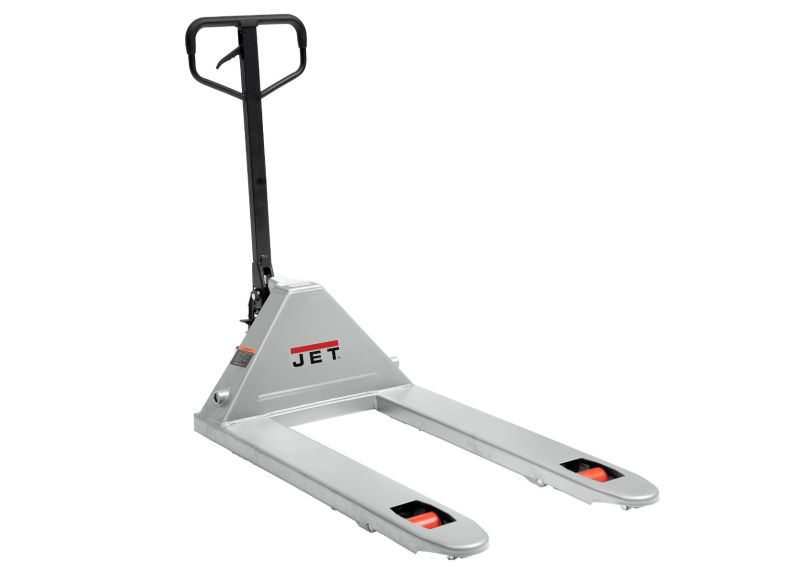

Jet JT9-161008 pt-2742jb 27 inches x 42 inches 5,500 lb capacity pallet truck

Product Description

The JET JT9-161008 PT-2742JB pallet truck is available in 6 different configurations. Constructed from high-quality welded steel, it features a low profile of 2-1/2 inches and a 180-degree turning radius for increased maneuverability. Fingertip controls allow for single-handed operation. This pallet truck is designed to handle heavy lifting in any industrial environment.

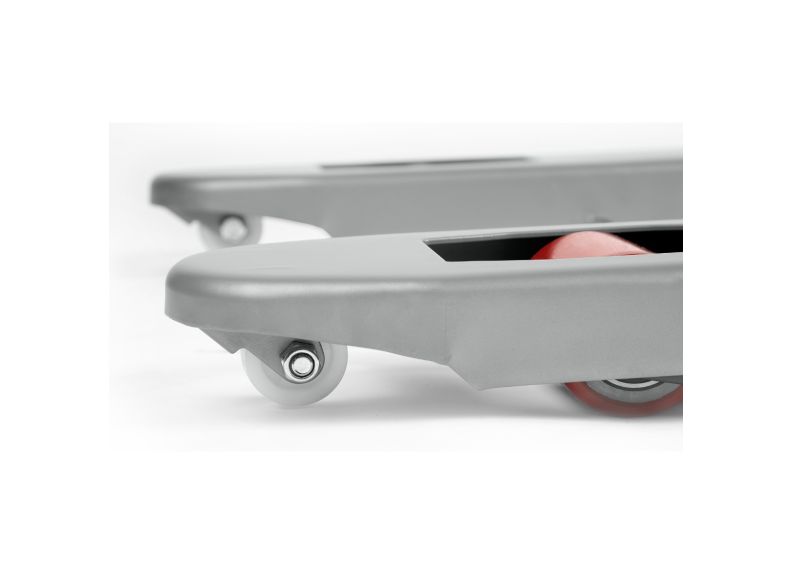

• 2-1/2 inch low profile allows for easy engagement of pallets
• Lower material in a controlled decent with either hand or foot control for operator convenience
• Overload Protection prevents lifting loads past maximum capacity

Product Highlights

The JET J Series Pallet Truck features a 180-degree turning radius, fingertip controls, and overload protection. Built with welded steel construction for capacities up to 5,500 pounds.

Product Information

Standard Information

• Brand: JET
• Manufacturer Part Number: JT9-161008
• Country of Origin: China

Technical Specifications

• Stock Number: JT9-161008
• A Steer Wheel Dimensions (In): 6-1/4 x 2
• B Fork Wheel Dimensions (In): 2-1/2 x 3-11/16
• C Overall Height (In): 45-1/8
• Capacity (Lbs.): 5500
• Fork Width (In.): 6-1/3
• L1 Fork Length (In): 42
• L2 Overall Length (In): 57
• Load Wheel Size (OD x W) (In.): 2-1/2 x 3-11/16
• Lowered Height (In.): 2.56
• Maximum Height (In.): 6-11/16
• Model Number: PT-2742JB
• Overall Dimensions (L x W x H) (In.): 57 x 20-1/2 x 45-1/8
• Overall Fork Dimensions (L x W) (In.): 42 x 27
• Steer Wheel Size (In.): 7-1/8 X 2
• Turning Radius (Deg): 180
• W1 Fork Width (In): 6-1/3
• W2 Overall Width (In): 27
• Brand: JET
• Type: Warehouse And Dock Equipment
• MPN: JT9-161008
• UPC: 731325808384
• Country of Origin: China
• Construction: Steel
• Wheel Size: 6-1/4 in x 2 in / 2-1/2 in x 3-11/16 in
• Height (Max.): 6-11/16 in
• Height (Min.): 2.56 in
• Weight Capacity: 5500 lbs
• Handle Type: Bicycle Style
• Weight Capacity (Max.): 5500 lbs
• Length: 57 in.
• Width: 20.5 in.
• Height: 32 in.
• Weight: 157 lbs.
