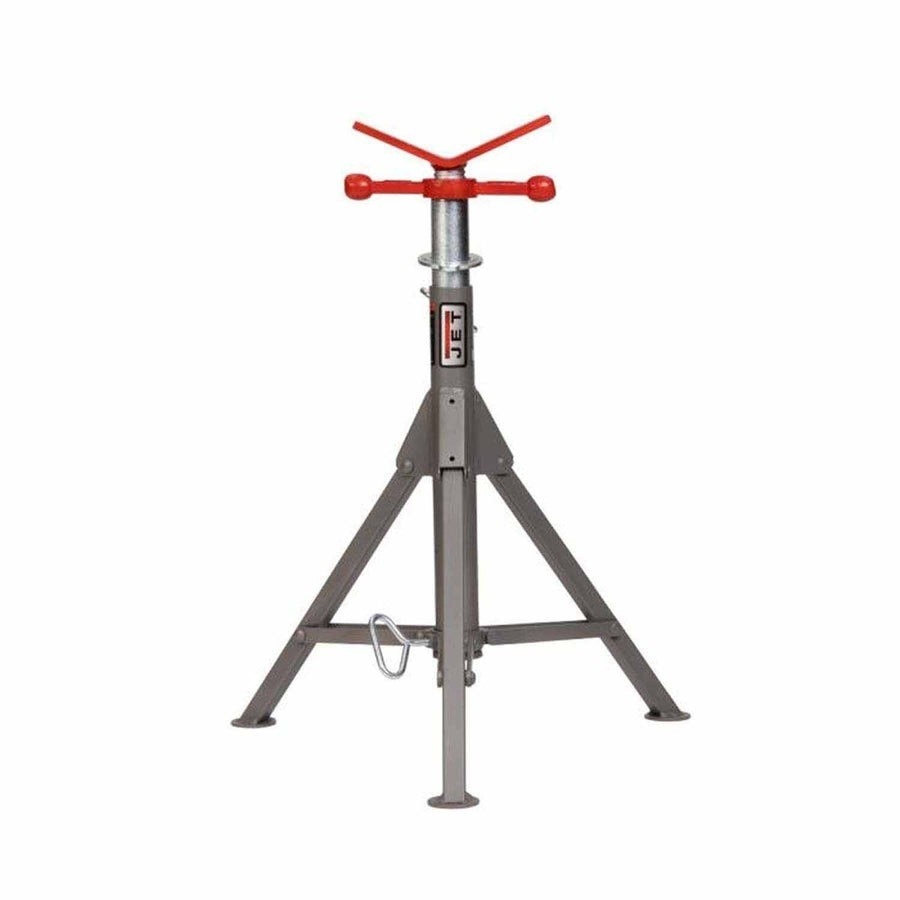

Jet JT1-2664 Folding Pipe Jack Stand 2500 Lb 10 Inch V-head

Product Description

The JET JT1-2664 is a heavy-duty folding pipe jack stand built for trade professionals who work with large-diameter pipe in the field or shop. The stand features a 10-inch V-head capable of cradling pipe up to 18 inches in diameter and supports a maximum load of 2,500 pounds. Height adjusts from 27 inches to 46 inches via a 1.5-inch ACME screw shaft, giving plumbers, pipefitters, and mechanical contractors the working height they need across a wide range of install conditions. Fully welded leg sockets add structural integrity, and the folding base collapses to a compact footprint for transport and storage.

This pipe jack stand is suited for residential and commercial plumbing, mechanical, and industrial piping work where a stable, adjustable support is required. The 22.625-inch wide base footprint provides a stable platform on jobsite floors. An integrated base T-screw further locks the stand in position during use. The high-visibility V-head and spanner make alignment easier in low-light or confined work areas. A captive lock ring stays in place even if the stand is over-extended, and a max-height sight hole provides an additional safety reference during height adjustment.

Key Features

• 2,500 lb maximum load capacity supports heavy pipe runs
• 10-inch V-head holds pipe up to 18 inches in diameter
• Height adjusts from 27 inches to 46 inches via 1.5-inch ACME screw shaft
• Folding base collapses for compact storage and transport
• 22.625-inch wide base footprint for maximized stability
• Captive lock ring and max-height sight hole for over-extension safety
• Fully welded leg sockets for long-term structural durability

Compatibility

Designed as a general-purpose pipe jack stand for use with round pipe in plumbing, mechanical, and industrial piping applications requiring adjustable elevation support.

Installation Notes

Set up and adjustment should be performed by a qualified plumber, pipefitter, or mechanical contractor familiar with pipe support equipment. Before positioning pipe on the stand, verify the base is fully extended and the T-screw is tightened against a stable, level surface. Never exceed the 2,500 lb rated load capacity. Inspect the lock ring and screw shaft for wear or damage before each use.

Technical Specifications

• Maximum Load Capacity: 2,500 pounds
• Maximum Pipe Diameter: 18 inches
• V-Head Size: 10 inches
• Height Range: 27 inches to 46 inches
• Base Footprint Width: 22.625 inches
• Screw Shaft Size: 1.5 inches ACME
• Base Design: Folding

Standard Information

• Brand: JET
• Manufacturer Part Number: JT1-2664
