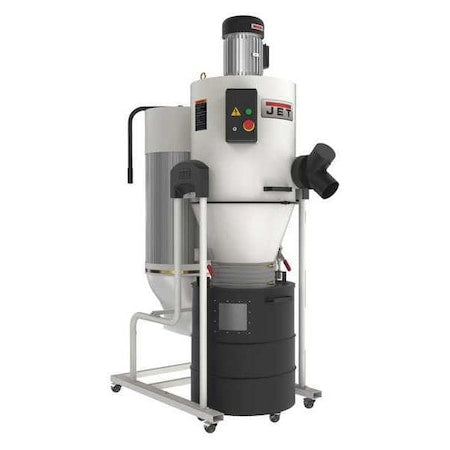

Jet 717520 Dust Collector 2 hp 1 Phase 1538 CFM Max Flow

Product Description

The Jet 717520 Dust Collector is designed for efficient dust collection in workshop environments. This model features a 2 hp motor and supports a maximum flow of 1538 cubic feet per minute (CFM). It operates on a single-phase power supply, making it suitable for various settings.

• 2 hp motor
• 1538 CFM max flow
• 1-phase power

Product Highlights

This dust collector is ideal for maintaining clean and safe workspaces. With a 1-micron filter, it captures fine dust particles, ensuring better air quality in your workshop.

Product Information

Standard Information

• Category: Dust Collectors
• Brand: Jet

Technical Specifications

• HP: 2 hp
• Hz: 60
• dBA: 76
• Type: Cyclone
• Phase: 1
• Amps AC: 9
• Voltage: 230
• Cord Type: 3 Prong Plug
• Filter Bag: 1 micron
• Depth: 22 1/4 in
• Width: 50 5/8 in
• Height: 22 1/4 in
• Drum Dia: 19-11/16
• Hose Dia: 6 in
• Max Flow: 1538 CFM
• Impeller Dia: 14-1/2
• Min Air Flow: 938 CFM
• Overall Depth: 25 in
• Overall Width: 50 5/8 in
• Drum Capacity: 30 gal
• Overall Height: 72 1/4 in
• Chip Capacity: 1 micron
• Static Pressure Range: 3.8 in
• Operating Velocity Range: 7,813 FPM
• Country of Origin: Taiwan, Province of China
