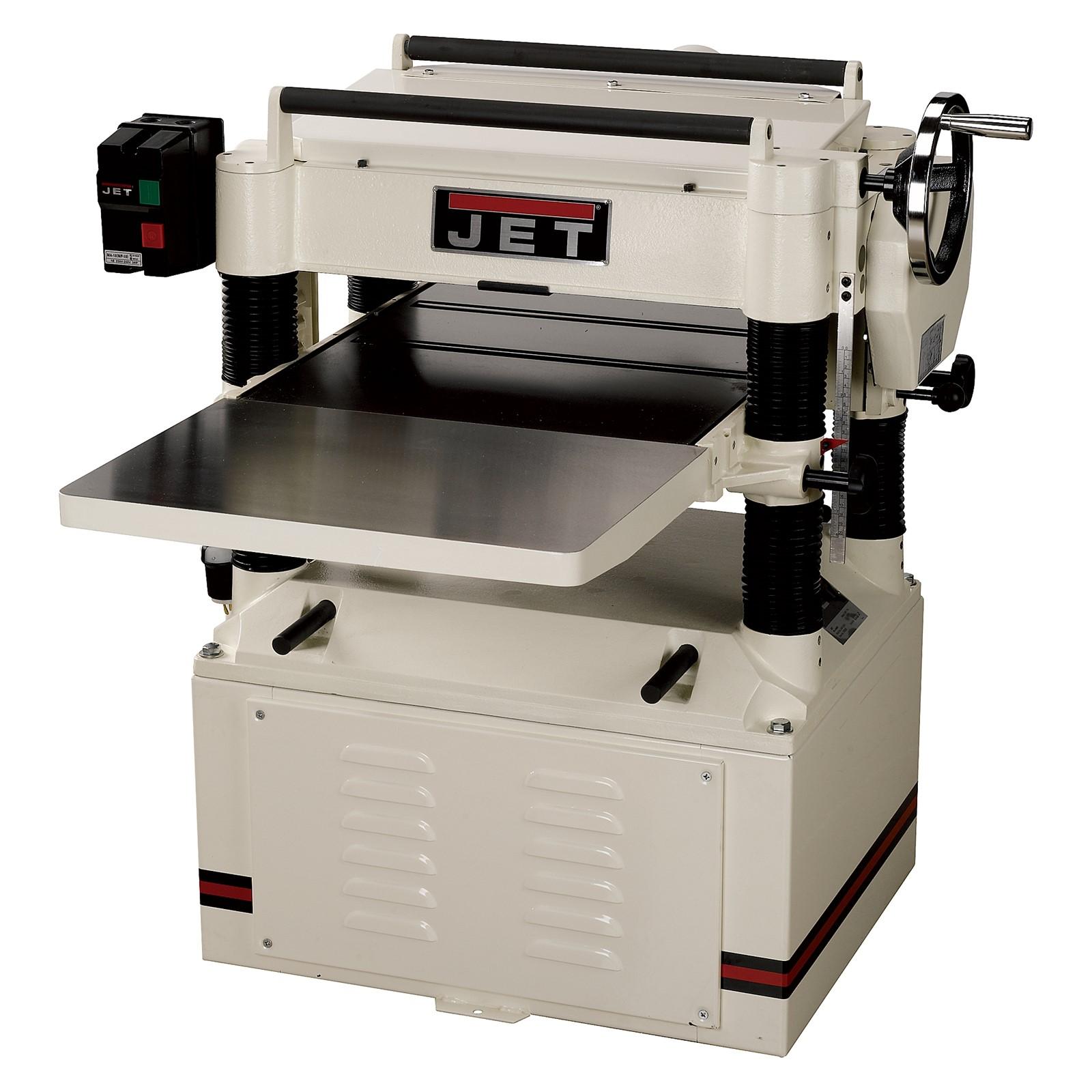

Jet 708544 20 Inch Helical Head Planer 5 Hp

Product Description

The JET 708544 is a 20-inch, 5 HP single-phase helical head planer built for high-volume material removal in professional woodworking and millwork environments. The helical cutterhead uses staggered carbide insert tooling arranged in a spiral pattern, which reduces cutting noise, minimizes snipe, and produces a superior surface finish compared to straight-knife heads. At 837 pounds, this is a floor-standing industrial machine intended for permanent shop installation by experienced woodworking professionals or millwork contractors.

This planer is suited for commercial cabinet shops, millwork facilities, and production woodworking operations that require consistent stock removal across wide boards up to 20 inches. The single-phase electrical configuration makes it compatible with standard 240-volt single-phase service common in smaller shops and facilities without three-phase power infrastructure. It is best installed on a level concrete floor with adequate clearance for infeed and outfeed material handling.

Key Features

• 20-inch planing width accommodates wide panels and slabs
• 5 HP motor provides power for heavy stock removal passes
• Helical carbide insert cutterhead reduces cutting noise and tear-out
• Single-phase power configuration for shops without three-phase service
• Robust cast iron construction at 837 pounds for vibration-damping stability

Compatibility

Designed as a direct OEM unit from JET under model designation JWP-208HH, intended for professional shop installation as a standalone stationary planer.

Installation Notes

Installation should be performed by a qualified electrician for the electrical hookup and by experienced shop personnel familiar with stationary woodworking machinery. Ensure the power supply circuit matches the machine voltage and amperage requirements before connecting. The unit should be anchored to a level, solid floor to prevent movement during operation. Disconnect and lock out all power before performing any cutterhead maintenance or carbide insert replacement.

Technical Specifications

• Planing Width: 20 inches
• Motor Power: 5 HP
• Phase: Single Phase
• Cutterhead Type: Helical Carbide Insert
• Weight: 837 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 708544
