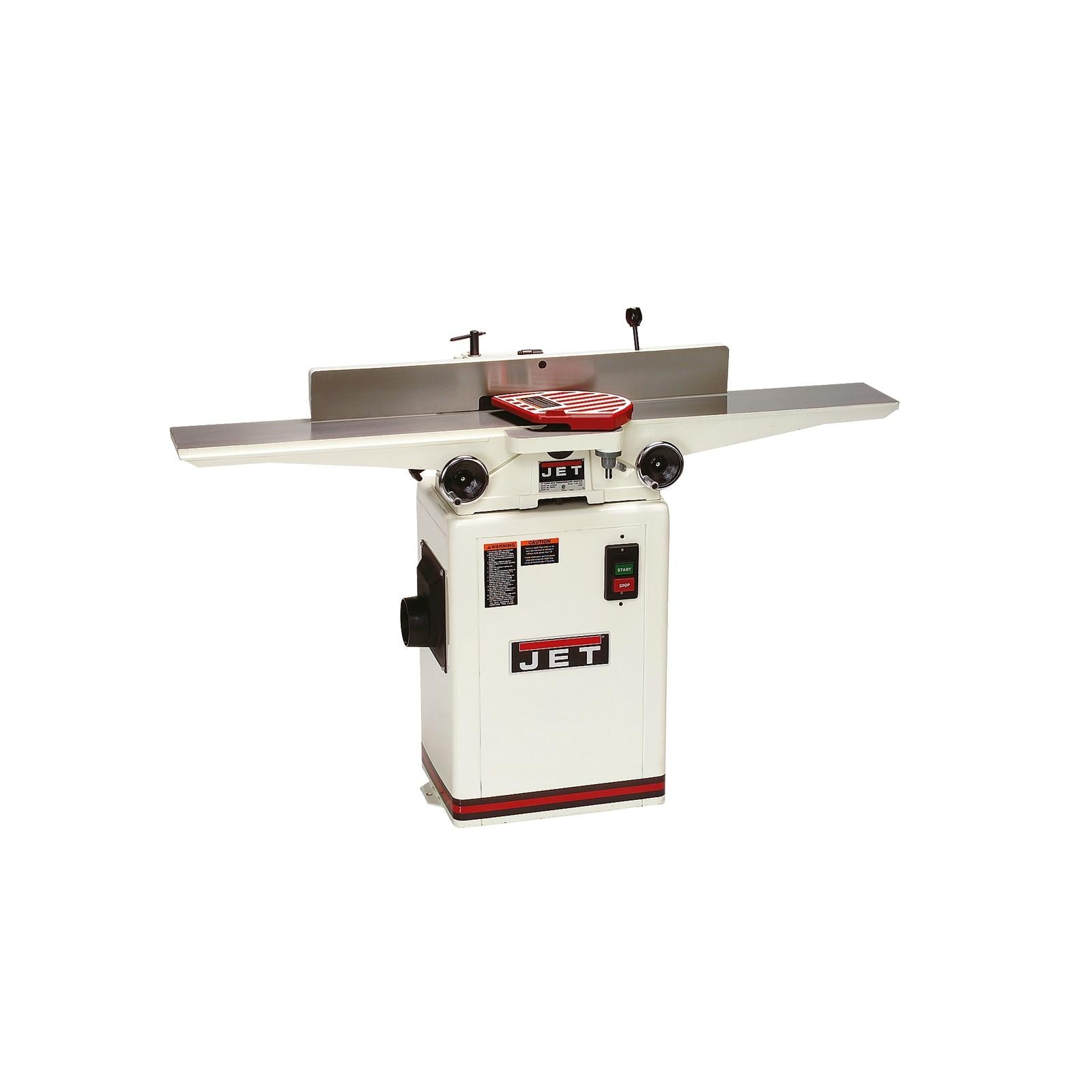

Jet 708466DXK 6 Inch Long Bed Jointer Helical Head

Product Description

The JET 708466DXK is a 6-inch long bed jointer equipped with a helical head cutting system, designed for professional woodworking applications. The helical head configuration uses staggered carbide insert tooling arranged in a spiral pattern across the cutterhead, which reduces noise, lowers cutting resistance, and produces a finer surface finish compared to straight-knife heads. At 260 pounds, this is a floor-standing stationary machine intended for shop installation by woodworking professionals, cabinet shops, and millwork operations requiring consistent face and edge jointing on solid lumber.

The 708466DXK is suited for commercial cabinet shops, production millwork environments, and high-volume professional woodworking facilities where surface quality and long cutter life are priorities. The long bed design provides extended workpiece support compared to standard-length jointer tables, making it better suited for flattening longer boards and maintaining consistent registration across the full length of the workpiece during face jointing operations.

Key Features

• 6-inch cutting width accommodates standard dimensional lumber face and edge jointing
• Helical cutterhead with carbide insert tooling for extended service life and reduced maintenance
• Long bed table design provides increased workpiece support for flattening longer stock
• Heavy cast iron construction at 260 pounds delivers vibration damping and cutting stability
• Carbide inserts are indexable, allowing a fresh cutting edge without full head replacement

Compatibility

Designed as a complete machine unit. Carbide insert replacements and jointer accessories should be sourced to match the JET JJ-6HHDX cutterhead specification. No additional compatible model data was provided in the product input.

Installation Notes

Installation of a stationary floor jointer should be performed by a qualified woodworking equipment technician or electrician familiar with single- or three-phase shop wiring requirements. Verify that the electrical supply circuit matches the machine voltage and amperage rating before connecting power. The machine should be anchored to a level concrete or reinforced floor surface using appropriate lag hardware to prevent movement during operation. Disconnect and lock out all power before performing any cutterhead, fence, or table adjustments.

Technical Specifications

• Cutting Width: 6 inches
• Cutterhead Type: Helical with carbide inserts
• Weight: 260 pounds
• Sold As: Each
• UPC: 662755955952

Standard Information

• Brand: JET
• Manufacturer Part Number: 708466DXK
