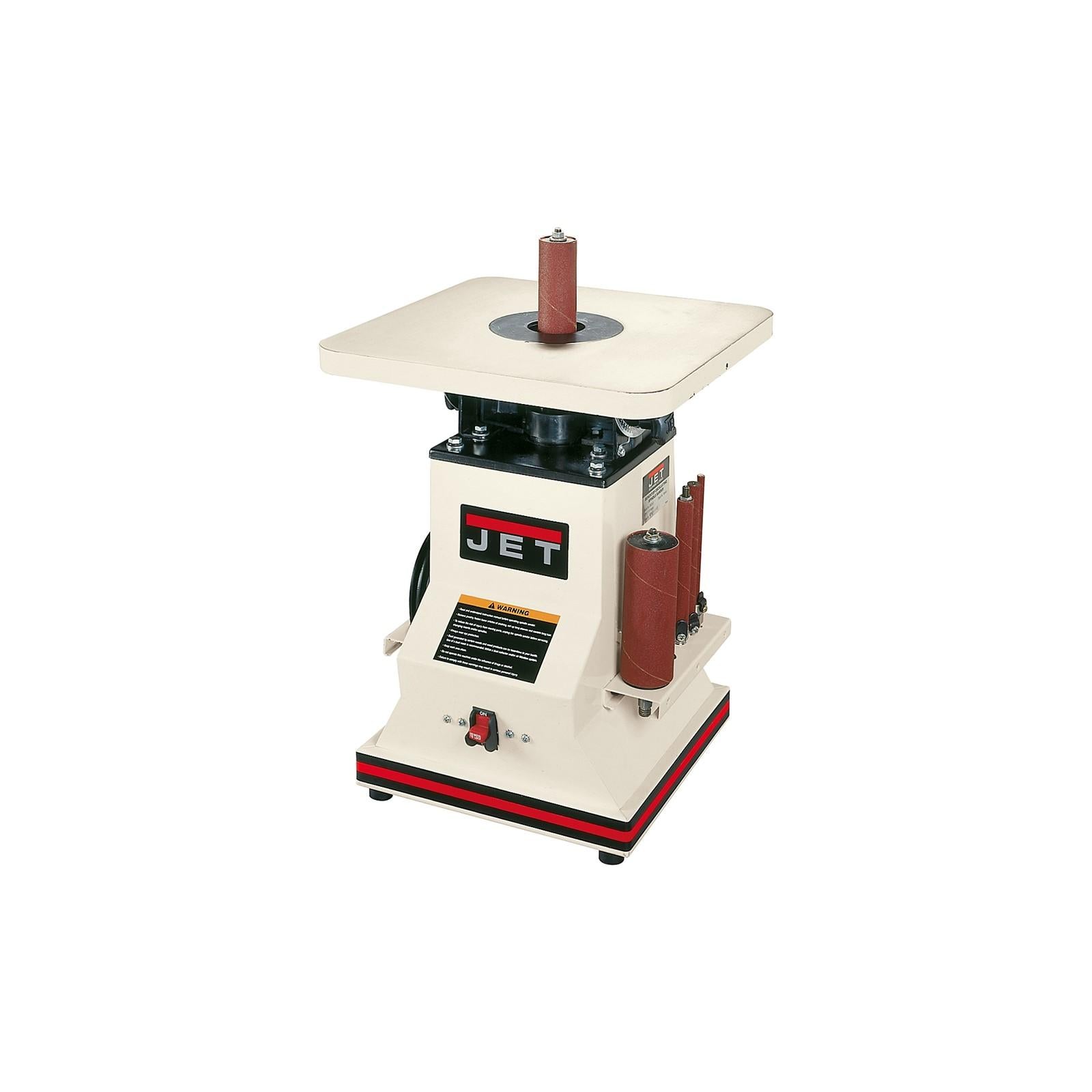

Jet 708404 Benchtop Oscillating Spindle Sander 0.5 Hp

Product Description

The JET 708404 is a benchtop oscillating spindle sander designed for woodworking shops, trade finishing operations, and production environments where consistent, controlled material removal on curved and contoured surfaces is required. Running on 0.5 HP at 115 volts, single phase, this unit combines rotary and vertical oscillating spindle motion to reduce heat buildup and extend abrasive life. At 80 pounds, it carries the mass expected of a stable benchtop machine. Woodworkers, finish carpenters, and cabinet shop technicians are the primary installers and operators of this class of equipment.

The JBOS-5 is suited for residential and light-commercial woodworking applications. Its benchtop form factor makes it appropriate for small shop environments where floor space is limited but a dedicated stationary sander is needed. Typical use cases include finish sanding of chair legs, cabinet door arches, bracket profiles, and other non-linear workpiece edges. The oscillating spindle action is effective on hardwoods, softwoods, and MDF.

Key Features

• Oscillating spindle motion reduces heat and extends sandpaper sleeve life
• 0.5 HP motor operates on standard 115-volt single-phase power
• Benchtop design conserves floor space in smaller shop environments
• 80-pound unit weight provides stability during operation
• Accepts interchangeable spindle sizes for varying contour radii

Compatibility

Designed as an OEM-style benchtop oscillating spindle sander; compatible spindle sleeves and tables should be verified against JET JBOS-5 series specifications.

Installation Notes

Installation and setup should be performed by a qualified technician familiar with stationary woodworking machinery. Before any spindle or table accessory changes, disconnect the unit from its power source and confirm the switch is in the off position. Secure the machine to a stable benchtop surface capable of supporting the unit weight before operation. Electrical connection should comply with applicable local codes and NEC requirements for the rated voltage and amperage draw.

Technical Specifications

• Motor: 0.5 HP
• Voltage: 115 volts
• Phase: Single phase
• Weight: 80 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 708404
