Jet 691205 Vertical Mill Newall C80 Dro X-axis Powerfeed

Product Description

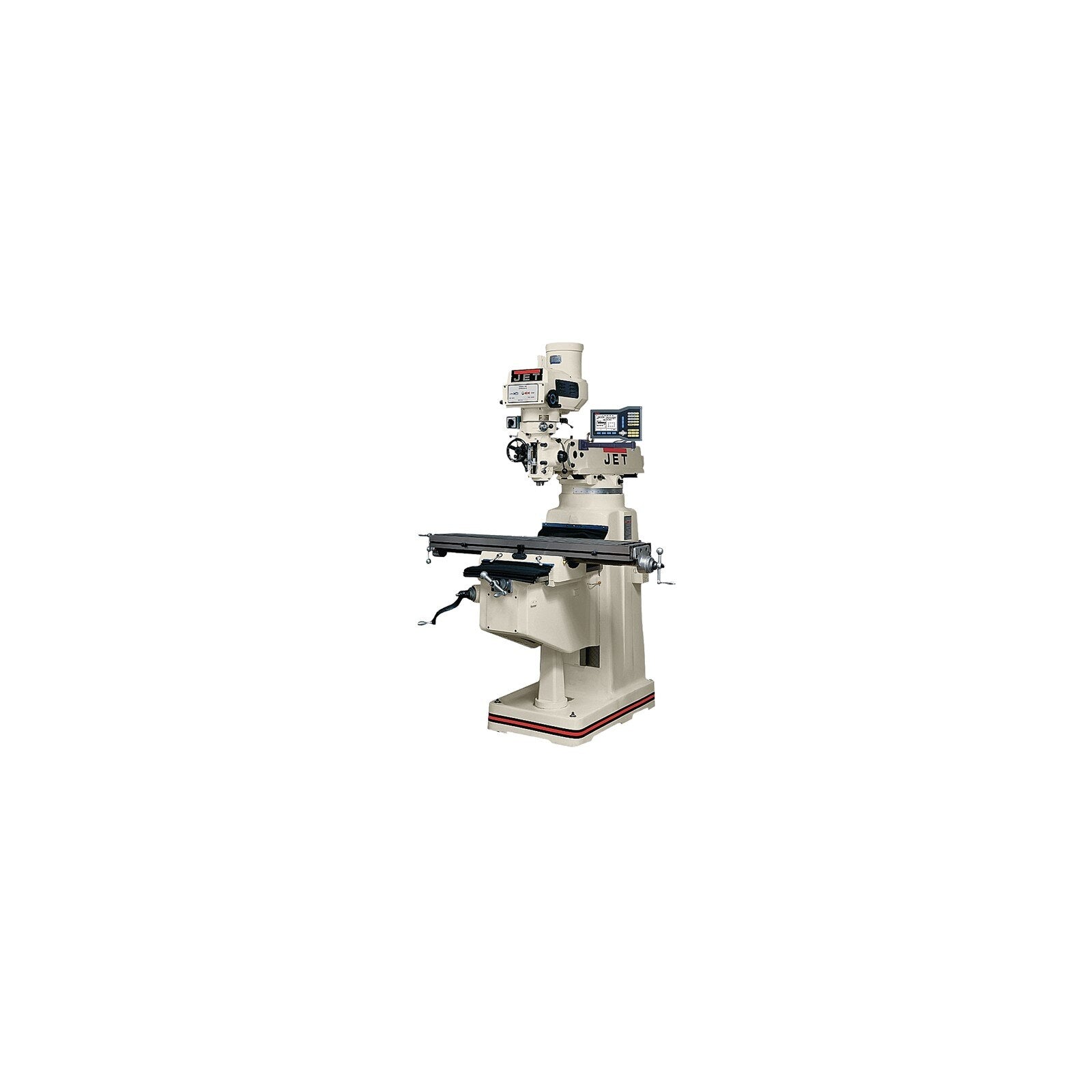

The JET 691205 is a full-size vertical knee mill configured with a Newall C80 digital readout (DRO) and an X-axis powerfeed pre-installed at the factory. The machine is built for precision metalworking in job shops, tool rooms, and industrial maintenance departments. The Newall C80 DRO provides accurate real-time axis position data, reducing setup time and improving repeatability on milling, drilling, and boring operations. The X-axis powerfeed automates table travel, reducing operator fatigue on long cuts and improving feed consistency. At 2,900 pounds, this is a production-grade machine requiring proper rigging and a prepared foundation before installation.

The JET 691205 is intended for professional machine shop environments handling ferrous and non-ferrous metals. Typical applications include face milling, end milling, slot cutting, drilling, and boring. This configuration is suited for tool-and-die work, maintenance machining, and short-run production where both manual control and powered table travel are required. The factory-installed DRO and powerfeed eliminate field integration work, making the unit ready for production upon commissioning.

Key Features

• Factory-installed Newall C80 DRO for real-time axis position readout
• X-axis powerfeed included and pre-installed for consistent, hands-free table travel
• Full-size knee mill platform suited for production and tool-room use
• Shipping weight of 2,900 pounds indicates a heavy-duty cast iron construction
• Sold as a single unit (each) with UPC 662755513602

Compatibility

Designed as an OEM-configured vertical knee mill matching the JET JTM-1050 platform with integrated Newall C80 DRO and X-axis powerfeed accessories.

Installation Notes

At 2,900 pounds, this machine must be rigged and positioned by qualified personnel using appropriate lifting equipment rated for the load. The installation site must have a level, reinforced concrete floor capable of supporting the machine weight, and electrical service must be verified against the machine nameplate requirements before connection. All electrical work should comply with applicable NEC standards. Power down and lock out all energy sources before performing any service, tooling changes, or adjustments after installation.

Technical Specifications

• Weight: 2,900 pounds
• DRO: Newall C80
• Powerfeed Axis: X-axis
• Unit of Measure: Each
• UPC: 662755513602

Standard Information

• Brand: JET
• Manufacturer Part Number: 691205
