Jet 691201 Vertical Mill Newall C80 Dro Xy Powerfeed

Product Description

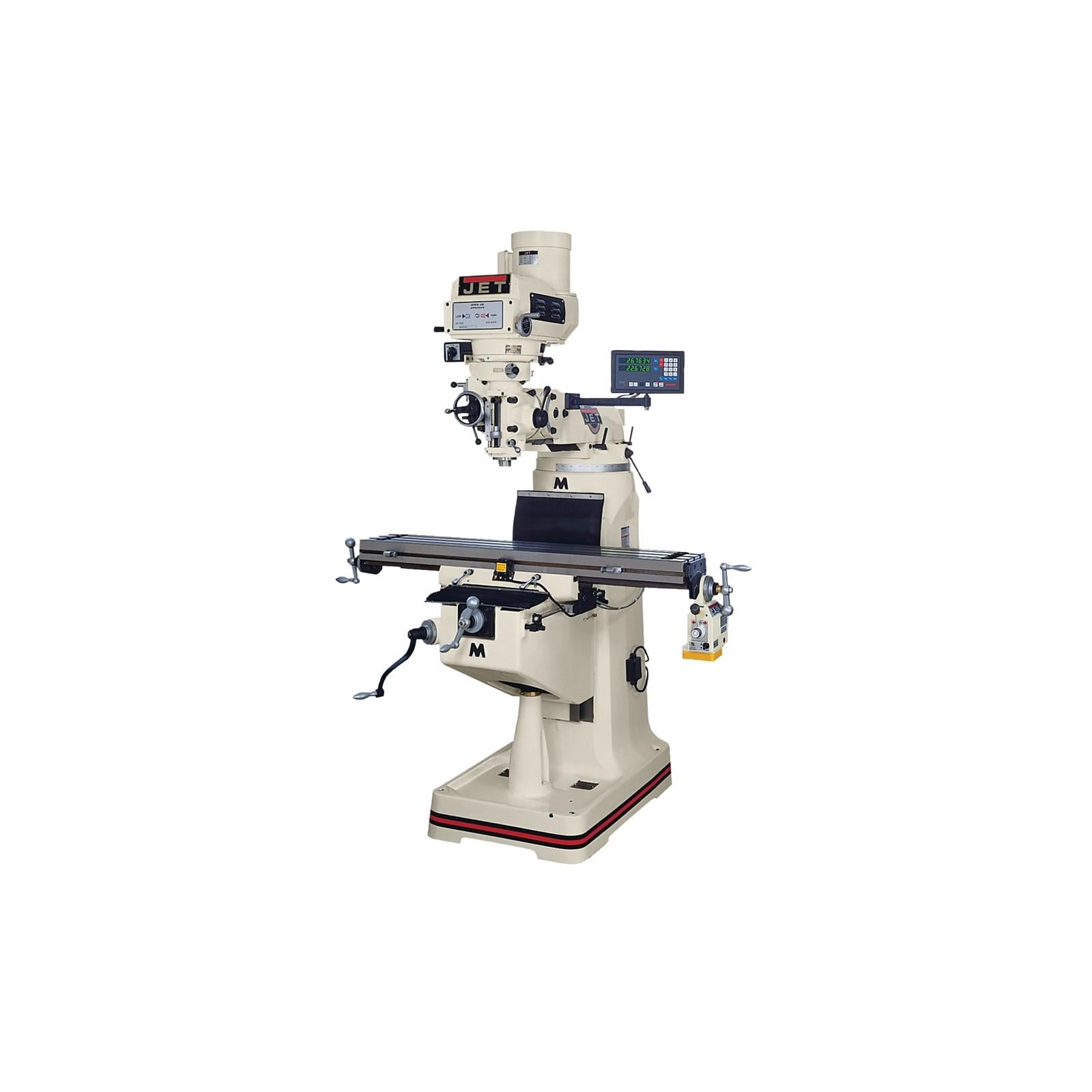

The JET 691201 is a JTM-4VS vertical knee mill equipped with a factory-installed Newall C80 digital readout (DRO) and X and Y axis powerfeed. The C80 DRO provides real-time axis position feedback, reducing setup time and improving accuracy on repetitive cuts. The X and Y powerfeed automates table travel, reducing operator fatigue during long milling passes. This machine is intended for professional machinists and toolroom operators working in job shop, maintenance, or light production environments.

The JTM-4VS platform is a variable-speed knee mill suited for face milling, end milling, drilling, and boring operations on ferrous and non-ferrous materials. The factory-installed DRO and powerfeed package means the unit arrives ready for immediate use without requiring field integration of third-party accessories. Typical installations are found in machine shops, industrial maintenance facilities, and vocational training centers where precision manual milling is performed daily.

Key Features

• Factory-installed Newall C80 digital readout for real-time X, Y, and Z axis position display
• X and Y axis powerfeed installed at the factory for consistent, hands-free table travel
• Variable-speed spindle drive for adjustable cutting speeds without belt changes
• JTM-4VS knee mill platform designed for toolroom-grade milling, drilling, and boring
• Ships as a complete, integrated unit — DRO and powerfeed wired and mounted from the factory

Compatibility

Designed as an OEM-integrated configuration of the JET JTM-4VS vertical knee mill with the Newall C80 DRO system and factory XY powerfeed; intended for direct installation in standard machine shop environments.

Installation Notes

Installation and commissioning should be performed by a qualified millwright or machinery rigger. The machine must be properly leveled on a reinforced concrete floor using a precision machinist level before operation. Electrical connection must comply with local codes and the nameplate voltage and phase requirements; a licensed electrician should handle the final power hookup. Do not operate the spindle or powerfeed until all leveling, lubrication, and electrical checks are complete per the manufacturer documentation.

Technical Specifications

• Weight: 2420 pounds
• DRO System: Newall C80
• Powerfeed Axes: X and Y
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 691201
