Jet 691183 Vertical Mill Dro Xy Powerfeed

Product Description

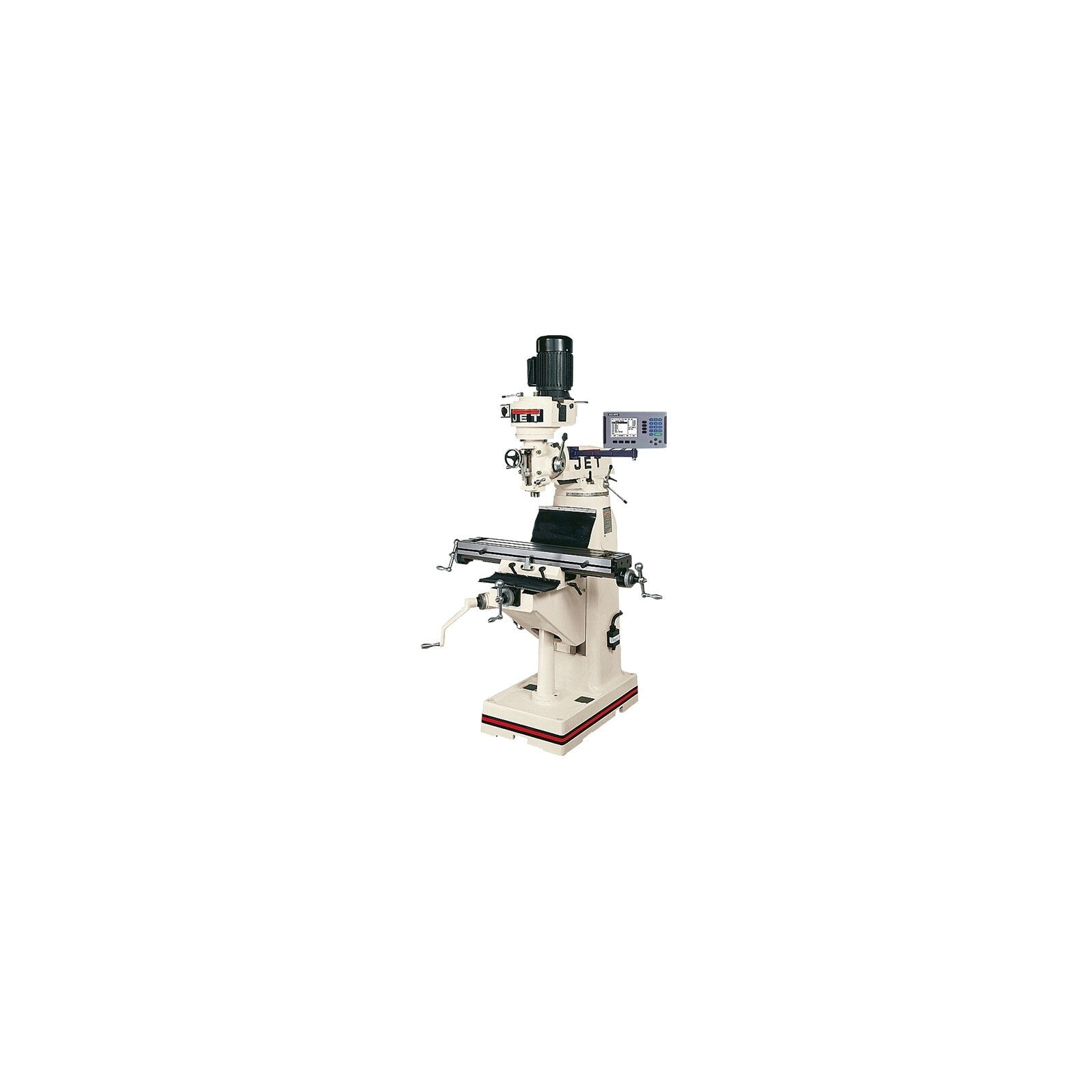

The JET 691183 is a vertical knee mill configured as the JVM-836-3 with a C80 digital readout (DRO) and XY powerfeed system. This machine is designed for precision metal removal in toolroom and production environments. The integrated DRO provides real-time axis position readout, reducing setup time and improving dimensional accuracy. The XY powerfeed automates table travel on both axes, reducing operator fatigue during long milling operations. Licensed machinists, toolmakers, and skilled trades professionals are the primary operators of this class of equipment.

The JVM-836-3 configuration is suited for job shops, maintenance departments, toolrooms, and vocational training facilities. It handles a range of operations including face milling, end milling, drilling, and boring on ferrous and non-ferrous materials. The C80 DRO and XY powerfeed are factory-integrated on this unit, making it a ready-to-run configuration without requiring separate DRO installation or aftermarket powerfeed mounting.

Key Features

• Vertical knee mill configuration (JVM-836-3) with factory-integrated C80 DRO
• XY powerfeed system automates table travel on both X and Y axes
• Digital readout provides real-time position data to reduce layout and setup time
• Three-phase power configuration as indicated by the -3 model suffix
• Heavy-duty construction suitable for toolroom and production milling work

Compatibility

Designed as an OEM-configured vertical knee milling machine. Compatible tooling and accessories follow standard milling machine fitment for the JVM-836-3 platform.

Installation Notes

Installation and commissioning of this machine should be performed by a qualified millwright or electrical contractor. Three-phase electrical service must be verified and connected in accordance with the NEC before powering the unit. The machine requires proper anchoring to a level concrete floor using appropriate mounting hardware. Do not operate without confirming all axis locks, gibs, and safety guards are properly adjusted.

Technical Specifications

• Weight: 1635 pounds
• Power Configuration: Three-phase
• DRO: C80 Digital Readout
• Powerfeed: XY Axis
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 691183
