Jet 691174 Vertical Mill Newall C80 Dro Powerfeed

Product Description

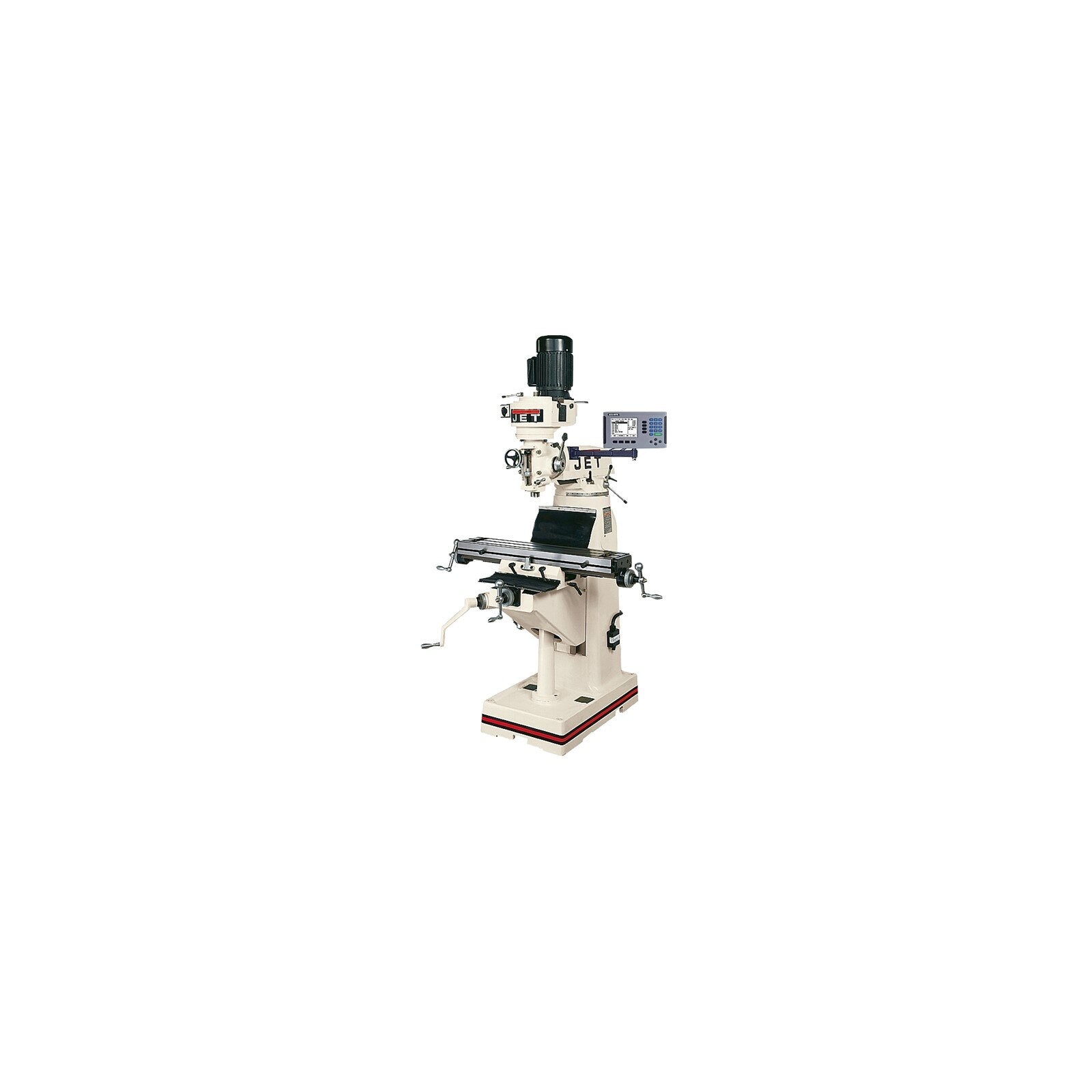

The JET 691174 is a JVM-836-1 vertical knee mill equipped with a Newall C80 digital readout (DRO) and a powerfeed unit. This machine is designed for precision milling operations in tool rooms, job shops, and light industrial environments. The integrated Newall C80 DRO provides real-time axis position readout, reducing manual measurement steps and improving repeatability. The powerfeed automates table travel on the designated axis, reducing operator fatigue during extended milling runs. At 1,630 pounds, this is a substantial floor-mounted machine requiring proper rigging and a prepared work surface before installation.

The JVM-836-1 configuration is suited for ferrous and non-ferrous material removal in professional shop settings. Typical applications include facing, slotting, drilling, and boring operations. This mill is installed by qualified machine tool technicians or millwrights and is appropriate for production shops, maintenance facilities, and vocational training environments requiring a full-featured vertical knee mill with electronic positioning assistance.

Key Features

• Newall C80 DRO provides real-time digital axis position readout for improved accuracy
• Integrated powerfeed automates table travel to reduce operator fatigue on long passes
• Vertical knee mill configuration supports a wide range of milling, drilling, and boring operations
• Heavy-duty construction at 1,630 pounds for rigidity and vibration dampening during cuts
• Sold as a complete unit with DRO and powerfeed factory-installed

Compatibility

Designed as an OEM-configured vertical knee mill unit; compatible tooling and accessories should conform to the JVM-836-1 spindle and table specifications as specified in the JET machine documentation.

Installation Notes

Installation of this machine requires qualified rigging personnel due to the 1,630-pound weight. The machine must be leveled on a solid concrete floor of adequate load-bearing capacity before operation. Electrical connection should be performed by a licensed electrician in accordance with applicable NEC requirements for the machine voltage and phase configuration. Power must be fully disconnected and locked out before any service, tooling changes, or adjustment work is performed.

Technical Specifications

• Weight: 1630 pounds
• Configuration: Vertical Knee Mill
• DRO: Newall C80
• Powerfeed: Included
• UOM: Each
• UPC: 662755513893

Standard Information

• Brand: JET
• Manufacturer Part Number: 691174
