Jet 690214 Knee Mill Acu-rite 200S Dro X Y Powerfeed

Product Description

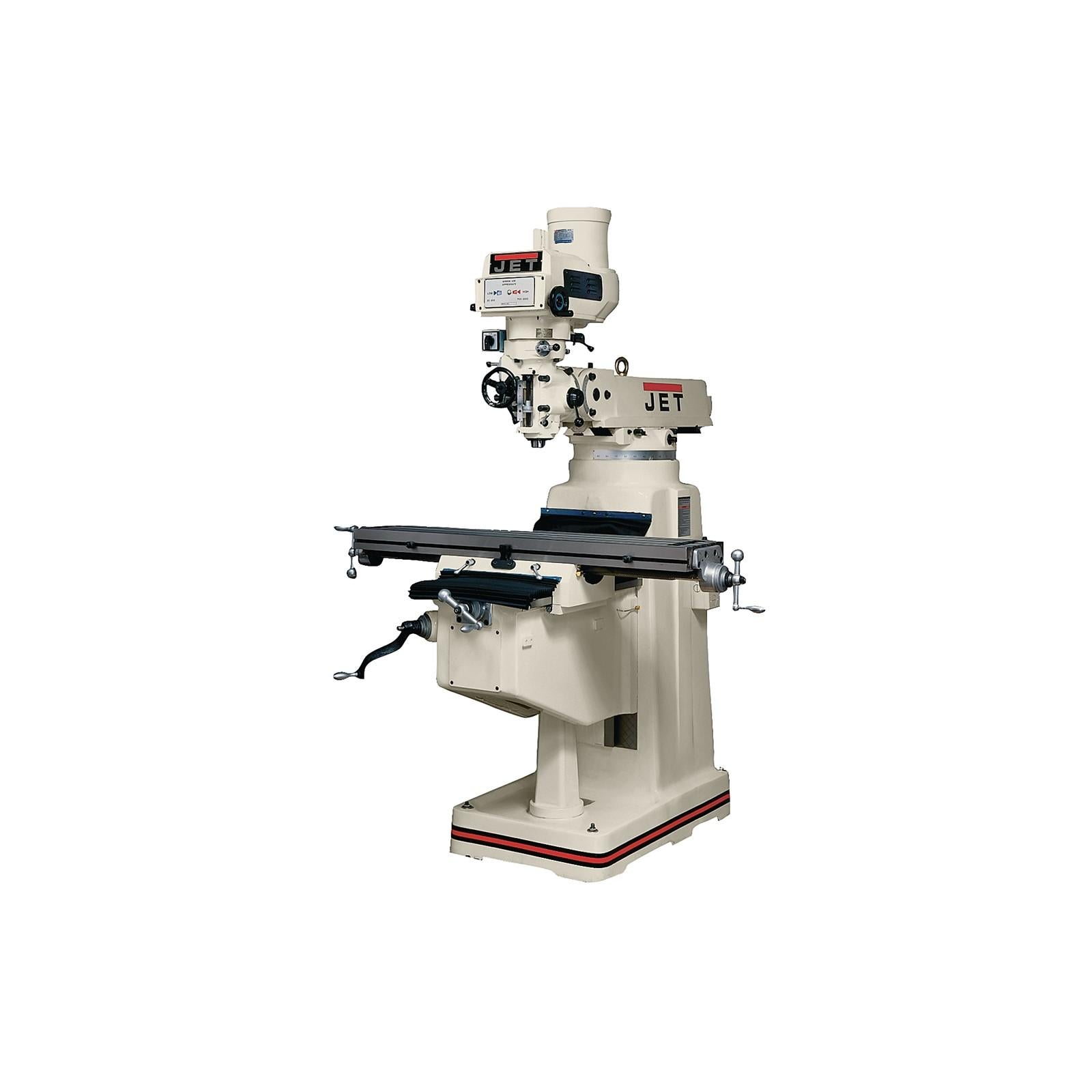

The JET 690214 is a full-size vertical knee mill configured with the ACU-RITE 200S digital readout system and both X-axis and Y-axis powerfeeds installed at the factory. This machine is built for precision milling operations in job shops, maintenance facilities, and industrial training environments. The ACU-RITE 200S DRO provides real-time axis position feedback, reducing setup time and improving repeatability on repeat-run parts. The dual powerfeed configuration on the X and Y axes reduces operator fatigue during long table traversals and supports consistent feed rates across the workpiece. At 2,900 pounds, this is a heavy-duty production-class knee mill intended for professional installation and use.

The JET 690214 fits into shops that require a manually operated vertical knee mill with modern positioning assistance. It is suited for general-purpose milling, drilling, and boring operations on ferrous and non-ferrous materials. The factory-installed DRO and powerfeed package makes this unit ready to run without additional field retrofitting, which is a common consideration for shops looking to minimize downtime between delivery and first operation. Typical users include machinists, tool-and-die makers, and maintenance technicians in industrial and commercial settings.

Key Features

• ACU-RITE 200S digital readout system installed at the factory for immediate axis position feedback
• X-axis and Y-axis powerfeeds included and pre-installed for consistent, repeatable table feed rates
• Heavy-duty construction weighing 2,900 pounds for rigid, vibration-resistant milling performance
• Full-size vertical knee mill design suitable for a wide range of milling, drilling, and boring tasks
• Factory-configured package eliminates the need for field DRO or powerfeed installation

Compatibility

Designed as a factory-configured vertical knee mill package; compatible tooling and accessories should conform to the spindle taper and table slot specifications of the JTM-1050 mill platform.

Installation Notes

Installation of a machine at this weight class requires appropriate rigging equipment and a certified rigger or millwright familiar with heavy machinery placement. The machine must be leveled on a concrete floor of adequate thickness and load rating before operation. All electrical connections should be made by a licensed electrician in accordance with applicable NEC requirements for the supply voltage and amperage of the unit. Do not operate the mill until all axis locks, gibs, and the knee clamping mechanism have been inspected and adjusted per the manufacturer documentation.

Technical Specifications

• Weight: 2900 pounds
• DRO System: ACU-RITE 200S
• Powerfeed Axes: X-axis and Y-axis
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 690214
